Beam us up...

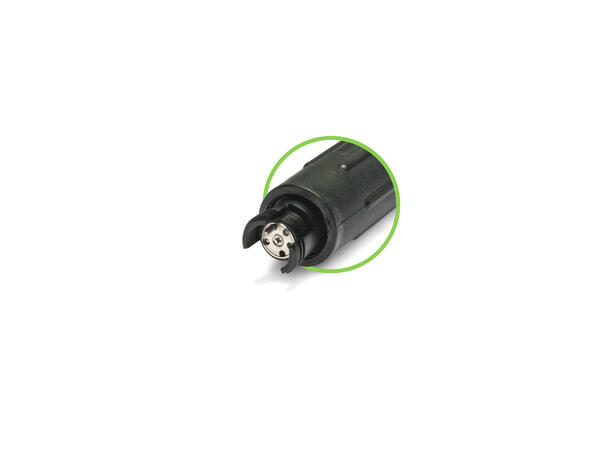

could be the motto for our expanded beam connector (IP67 protection class) according to MIL standard. It combines the latest in optical lens technology with fiber optical transmission. By expanding the light beam with the help of a lens the errorproneness is considerably reduced. This guarantees more stable transmission rates and a trouble-free operation. The plug-in connection is compatible with various systems available on the market.
As with all other fiber optical systems we use quality products “Made in Germany” exclusively. Each system is measured with our high-class measuring equipment and tagged with a test protocol. Regarding the cable we chose, again we chose the OM3 version of our SC-OCTOPUS PUR line.
We also offer the ready-made FIBER LENS QUAD cable in different versions:
1.) as plain cable

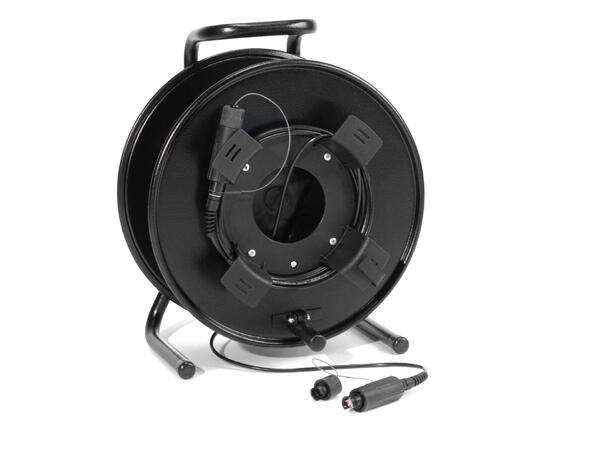

2.) as reel version with 2 m end piece on auxiliary coil
3.) as reel version with built-in socket
Miscellaneous:
Configuration:
150,00 m Optical fiber SC-Octopus-G; 4 x 9/125 µm OS2; PUR-FRNC Ø 5,50 mm; black (590-0321-04)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x FIBERL4S-C
1 x FIBERL4S-C
Specifications:
| Length ft | 492,12 |
|---|
| Article number | OZCRGL04/00-1H50 |
|---|
| EAN | 4049371120685 |
|---|
| In | 04 |
|---|
| Out | 00 |
|---|
| Length m | 150 |
|---|
| Article number | OZCRGL |
|---|
| Name | OZCRGLXX/XX |
|---|
| Brand | Sommer cable |
|---|
| Application | Digital Fiber Distribution System |
|---|
| Cable | SC-Octopus PUR |
|---|
| Additional function | on SCHILL GT series cable reel |
|---|
| Additional function | Singlemode |
|---|
| Type | Fiber Lens |
|---|
| Type (detailed) | Fiber Lens Quad |
|---|
| Old article number | OZCRGLXX/XX |
|---|
