A high-speed OM3 fiber optical line...

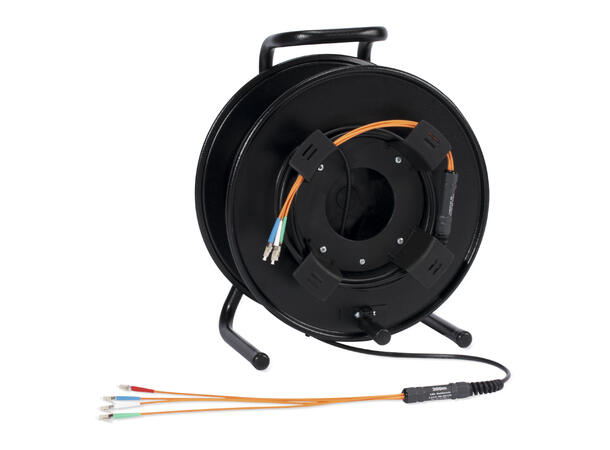

with a halogen-free jacket for permanent installation is the basis for the ready-made LC and SC breakout cables. The breakouts are delivered on a sturdy wood reel (cable lengths < 30 m are delivered on a smaller space-saving plastic ring). The splice point has a solid double screw connection with a special silicone insert which protects and guides the hollow-core wires and also provides a good strain relief. The PE version has a longitudinal water-tight special jacket which is suitable for underground laying and offers rodent protection. The quality connectors we use are made in Germany, assembled by hand, machinepolished and measured professionally. Each cable is supplied with a test protocol.
Configuration:
150,00 m Optical fiber SC-Octopus-G; 4 x 50/125 µm OM3; PUR-FRNC Ø 5,80 mm; black (590-0311-04-OM3)
1 x SCHILL Kabeltrommel, HT380-SW, core: 178 mm, thread width: 142 mm, metal (HT380-SW)
4 x +LWL-LCXX/125
2 x +LWL-HOHLLEIT1.2
1 x LWL-TUBE-04-0050
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
4 x +LWL-LCXX/125
2 x +LWL-HOHLLEIT1.2
1 x LWL-TUBE-04-0050
Specifications:
| Article number | O3LYHH04/00-1H50 |
|---|
| EAN | 4049371090216 |
|---|
| Length m | 150 |
|---|
| Reel | HT series |
|---|
| Article number | MCORE-LWL |
|---|
| Brand | Sommer cable |
|---|
| Application | Digital Fiber Distribution System |
|---|
| Cable | Multimode Fiber Optical Cable |
|---|
| Type | LC |
|---|
| Type (detailed) | LC |
|---|
| Old article number | OALY-L |
|---|
