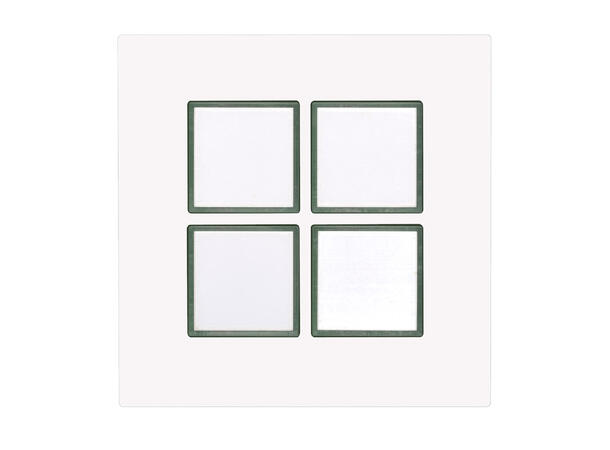

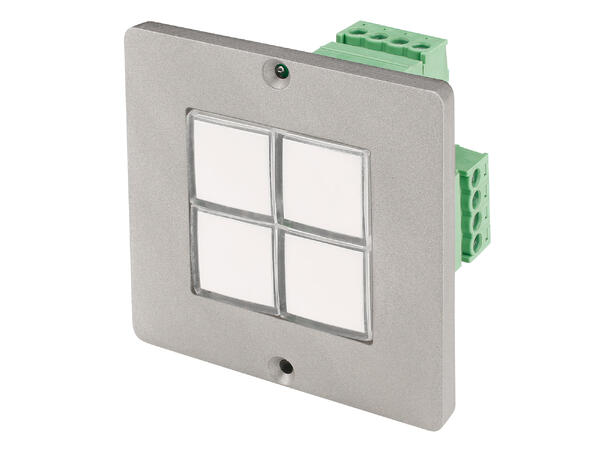

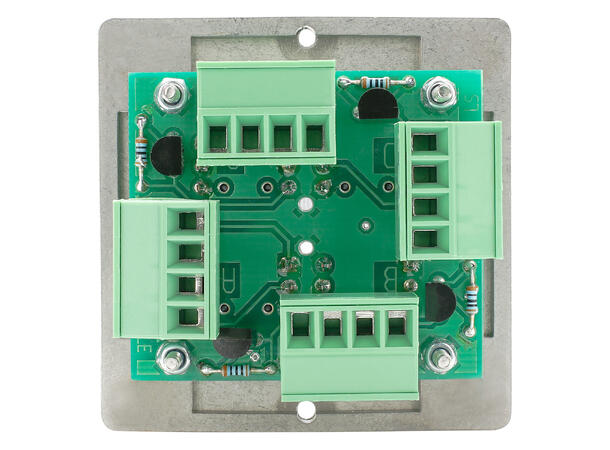

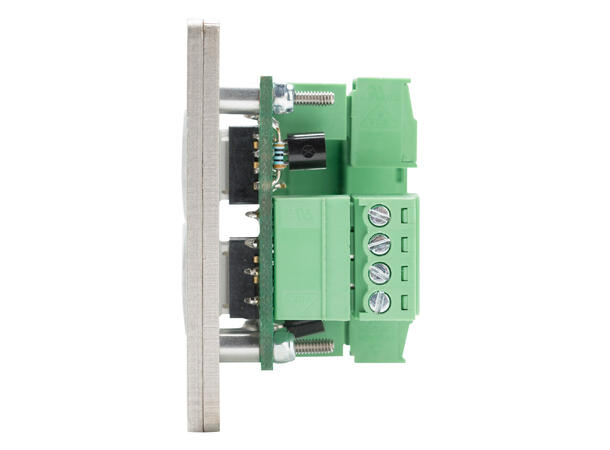

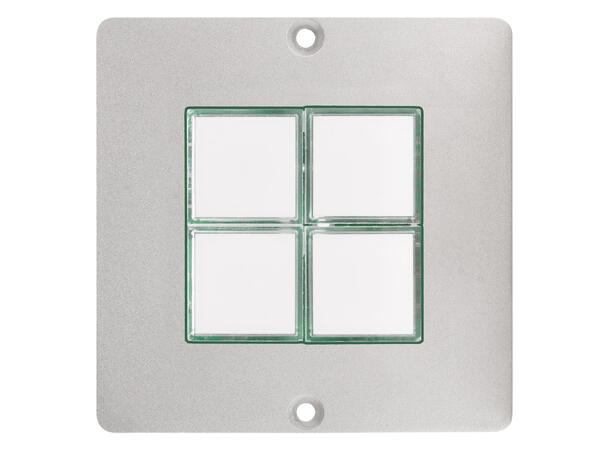

With our 4-pushbutton module. We all know it, right? A video switcher needs to be installed in a conference room. And everything should be easy and user-friendly to operate. A device operation on the unit itself will often overwhelm the customer: too complicated – too complex – too many or simply inaccessible controls. The beamer on the ceiling, the video switcher in the cabinet or operating a media controller – with the 4-button modules (e.g. integrated into a wall or a table) this is so easy to do at the touch of a button! The 4 short-travel buttons with clear glass caps (12 x 12 mm / 0.47 x 0.47 in.) are lit by LED and can be labeled individually (templates with common functional descriptions are included). For each button a 4-pole Euroblock connection is provided (plug-in block included) – so there are no limitations to the LED connection with regard to a common anode or a common cathode. The LED can be used within an input voltage range of 5 V to 36 V.

The solid 50 x 50 mm (1.97 x 1.97 in.) module fits for the SYSFRAME50... desk mounting frame and nearly all switchframe systems on the market.
