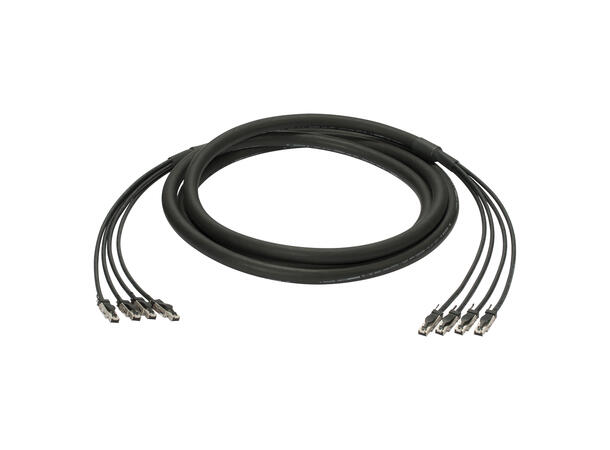

No less than four CAT.7 lines are combined here in a highly flexible and robust Strong-PVC jacket. Up to 4 high-speed ethernet or compatible signals can be transmitted simultaneously with it. We offer the cable premade and finished with HIROSE RJ45 connectors and as an extra with a protective housing made by HICON. Optionally the cables are also available on a reel.
Configuration:
10,00 m SC-Mercator; 4 x CAT.7; PVC Ø 22,50 mm; black (580-0311-04)
4 x RJ45 CAT.6a, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, silver-grey (RJ45C6XL)
4 x RJ45 CAT.6a, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, silver-grey (RJ45C6XL)
Specifications:
| Length ft | 32,81 |
|---|
| Article number | K440-1000 |
|---|
| EAN | 4049371115780 |
|---|
| Length m | 10 |
|---|
| Article number | K440 |
|---|
| Name | SC-Mercator CAT.7 |
|---|
| Brand | Sommer cable |
|---|
| Application | network cable |
|---|
| Inner conductor | 8 |
|---|
| Inner conductor mm² | 0,22 |
|---|
| Connector-Brand | HIROSE |
|---|
| Type | RJ45 |
|---|
| Type (detailed) | RJ45C6XL |
|---|
