The perfect cable for on the go...

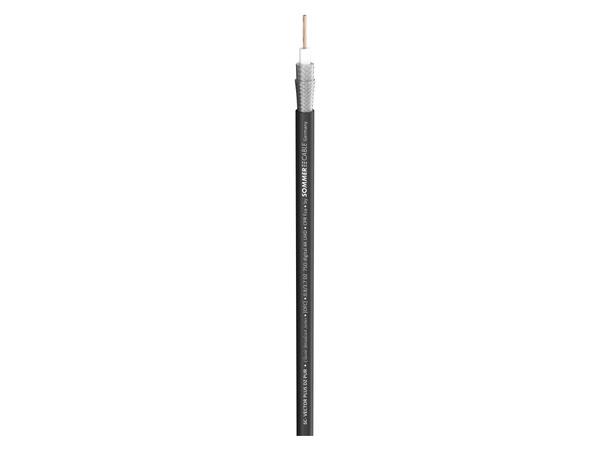

is the HD-SDI video cable VECTOR PLUS 0.8L/3.7DZ with double, dense and tinned copper braiding. The cable's design is reminiscent of its big brother SC-VECTOR PLUS 1.2L/4.8DZ (article no. 600-0211), but it has been optimized for a smaller outer diameter of 6.1 mm. This allows it to fit on almost any compact cable drum or in any cable duct, and it can be easily assembled with standard 0.8/3.7 digital-capable BNC connectors. The insulation consists of a robust and low-attenuation cellular PE, the outer jacket of a notch-resistant, cold-flexible, heat- and UV-resistant PUR jacket. This means that the cable can also be used outdoors and generally under adverse conditions. It is perfectly suited for the transmission of analog and digital HD camera systems such as HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI or HD-TVI and digital image processing. Of course, it is also suitable for digital audio applications according to the S/PDIF standard.
Advantages:
- Long life due to non-aging soft PUR jacket
- Temperature-resistant and flexible at low temperatures of -40 ° C
- Double shielded by dense, double CU braiding
- Compact and reelable
Application:
- Digital UHD-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
- Mobile UHD-SDI transmissions
- Professional media-technical permanent installation according to 6G standard
