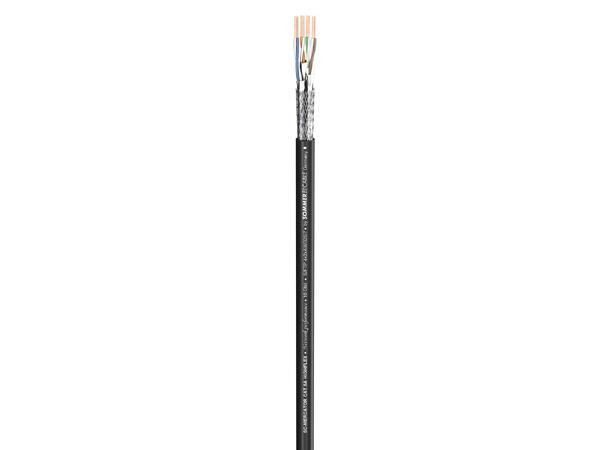

SOMMER Mercator CAT.6a Highflex PVC, sort, Ø 6.20mm

SOMMER Mercator CAT.6a Highflex

PVC, sort, Ø 6.20mm

Varenr: 185588

Alt. varenr: 580-0401

40,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

Ikke på lager i Oslo. Ta kontakt for leveringstid.

Beskrivelse

SC-MERCATOR CAT.6a HIGHFLEX

Even the brittlest banana will be amazed ...[/i

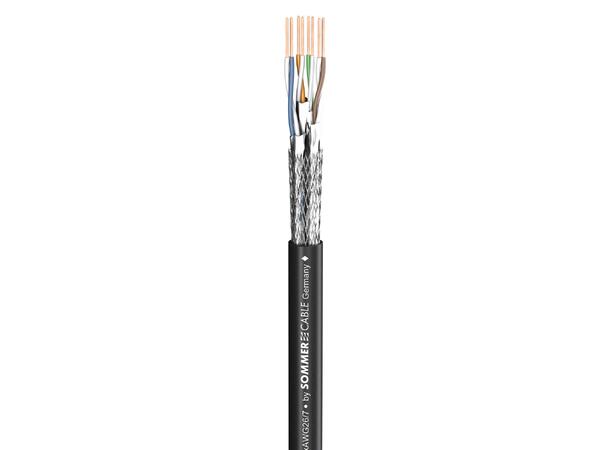

] when our SC-MERCATOR CAT.6a HIGHFLEX patch cable with an outer diameter of just 6 mm and an extremely small bending radius of < 20 mm winds its way through narrow patch panels, data cabinets and touring racks. And this despite its tough, robust jacket material made of PVC and S/FTP construction with braided shielding and paired AL/PT foil shielding around the 4x2xAWG26/7 cores. The overall design guarantees fulfilment of CAT.6a performance up to 500 MHz.

Article number: 580-0401
Name: SC-MERCATOR CAT.6a highflex
EAN: 4049371446723
Properties: Digital 110 O AES / EBU, OFC oxygen free copper, Strong PVC-jacket
Application area: Installation, Mobile outdoor / indoor, Stage / live, Studio / Broadcast
Application: Cat.6a
Colour: black

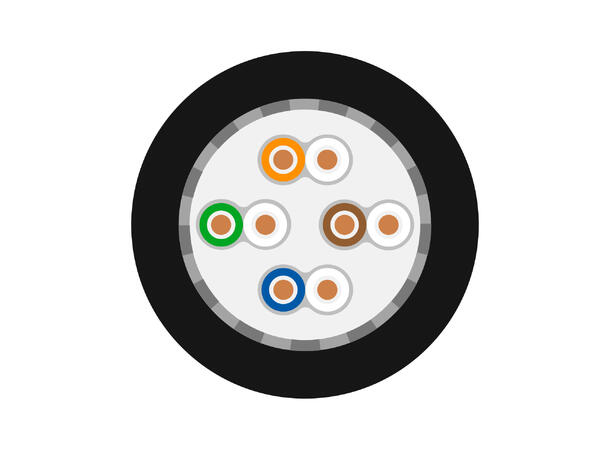

Construction: S/FTP 4x2x0,123mm²
Construction (network): S/FTP 4x2x0,123mm²
Jacket material: PVC
Jacket Ø [mm]: 6.20
Jacket Ø ["]: 0.2441
Jacket Ø (network) [mm]: 6,20
Jacket Ø (network) ["]: 0.2441
Number of Channels (network): 1
Inner conductor: 8
Inner conductor (network): 8
Inner conductor (network) [sqin]: 0.0002
Inner conductor (network) [mm²]: 0,12
AWG (network): 26
Shielding: AL / PT foil per pair + total braiding Alu-Magnesium 65 %
Shielding factor [%]: 65
Conductor insulation material: Foam / Skin-PE
Conductor insulation Ø (network) [mm]: 0,96
Conductor insulation Ø (network) ["]: 0.0378
Weight per 1 m [g]: 32.66
UV-resistant: yes
Style variant: round
Packing: 500 m spool
CAT-Type: CAT.6a
Temperature min. [°C]: -15
Temperature max. [°C]: 60
Width [mm]: 6,2
Width ["]: 0.2441
Height [mm]: 6,2
Height ["]: 0.2441
Capacity wire/wire at 1m (network) [pF]: 116
Capacity wire/wire at 1 ft. (network) [pF]: 35.3568
Impedance [O]: 100
Insulation resist. per 1 km [GO]: 0,5
Insulation resist. per 1000 feet [GO]: 0.1524
Insulation resist. per 1 km (network) [GO]: 0,5
Insulation resist. per 1000 feet (network) [GO]: 0.1524
Conductor resistance per 1 km [O]: 139
Conductor resistance per 1000 ft. [O]: 42.3672
Max. delay (skew): 45ns @100MHz/100m
