Portable Amplifier with UHF 16-channel wireless system, MP3 and Bluetooth™

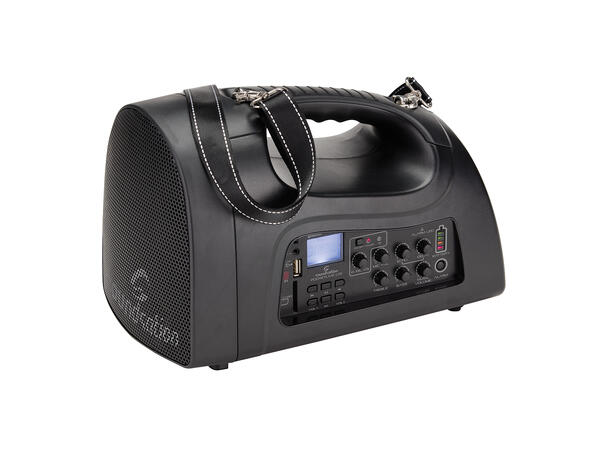

Dedicated to all those who need maximum portability and are always “on the road”, the POCKETLIVE U16HBT is a 35W battery-powered PA system with 16-channel UHF wireless microphone system, MP3 player with Bluetooth™, line and microphone inputs, and more. Its weight of about 3kg (batteries included), the strap and the carrying bag make it suitable for almost any situation where you need to play loud but there isn’t even any electrical outlet: in classroom, sport contexts, ceremonies, tourism and more. The internal battery lasts more than five hours (continuous use at maximum volume). The UHF 16-channel wireless microphone operates in ISM band (863-865MHz), can be used even in high interference environments and does not require any special authorization within the European Community. The MP3 player with Bluetooth™, the SD-Card and USB lets you play your playlists and can also be operated via a handy remote control.The bag, which features a shoulder strap and a large side pocket, has an opening with zipper and net on speaker side, and allows the use of POCKETLIVE U16 also inside the bag. Finally, under the amplifier is a hole that, by mounting the supplied adapter, allows the use on a standard microphone stand.
Features:
SMT integrated technology with surface mount components designed for maximum energy-efficiency and environmental friendliness
Designed for use in schools, sport events, coaching, religious contexts, etc.
35 Watt High-quality power amplifier with 6" full-range speaker
Lithium battery pack with over 5 hours operation (maximum volume with full-charged batteries)
Professional 16-channel UHF wireless with IR setup system
ISM-Europe Band operation (863-865MHz); it doesn't need any special license in Europe

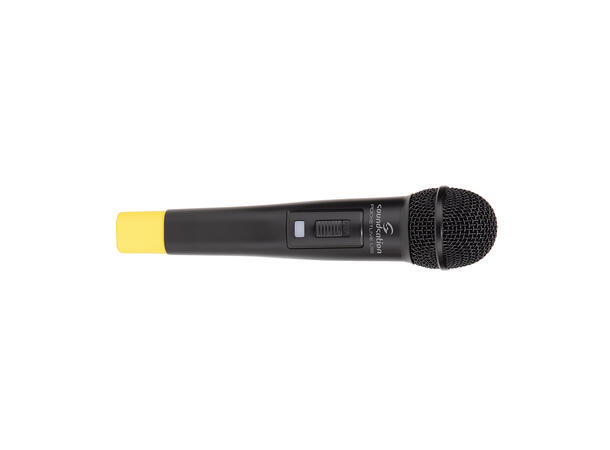

Handheld microphone with cardioid dynamic capsule
MP3 player with Bluetooth™, USB, SD-Card e IR remote controller
Built-in Echo effect on wired/wireless microphones

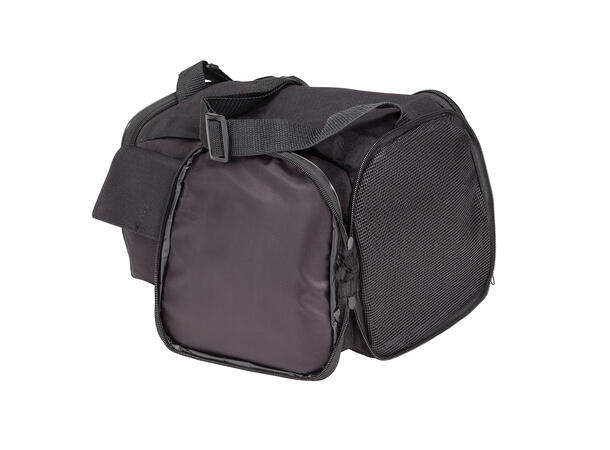

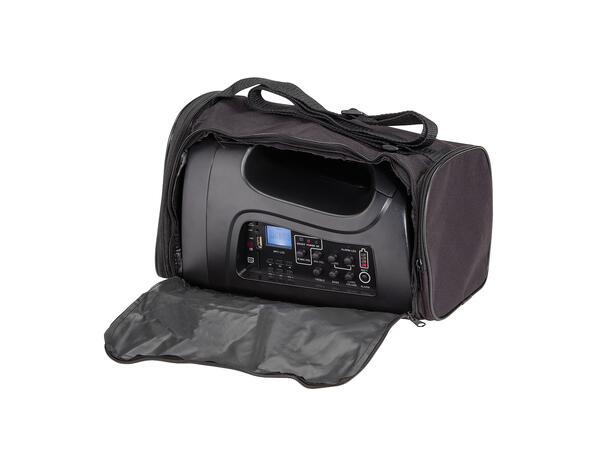

Bag with shoulder strap, side pocket and opening with zipper and net on speaker side, which allows the use of POCKETLIVE U16 also inside the bag
5V DC USB charger out (max 500mA) for smartphones and other external devices
Microphone stand adapter
Specifications:
Power Amplifier: 35W
Input / Output Connections: 1x Wired Mic, 2x Line In (one on the MP3 player), 1x Line Out
Speaker size: 6” full-range
Dynamic range: >95dB
Total Harmonic Distortion: < 0.8%
frequency Response: 40Hz-15KHz ±3dB
Battery: Rechargeable Lithium Battery Pack 14.8V - 4000mA
External Power Supply: Input 100-240Vac, 50/60Hz – Output 19Vcc, 3.42A (70W Max)
Dimensions (WxHxD): 296 x 180 x 175 mm
Packing Dimensions (WxHxD): 365 x 245 x 295 mm
Net Weight: 2.6kg (batteries included)
Gross Weight: 4.2kg
Receiving Band: UHF 863-865MHz
Receiver Total Harmonic Distortion: < 0.4%
Receiver Frequency Response: 40Hz-15KHz ±3dB
Receiver Signal/Noise Ratio: > 95dB
Receiving Sensibility: >7dBuV (SINAD=30dB)
De-Emphasis: 75uS
Transmission Power: 10mW
Transmitter Maximum Deviation: ±20KHz
Handhel Mic. Batteries: 2x 1.5V AA-Type
Handhel Mic. Battery Life: 5 hours
Handhel Mic. Dimensions (W/DxH): Ø50 x 232 mm
Handhel Mic. Net Weight: 0.26kg (batteries included)
MP3 Player Audio Formats: MP3, WMA, WMW
IR remote controller
USB and SD-Card slots
