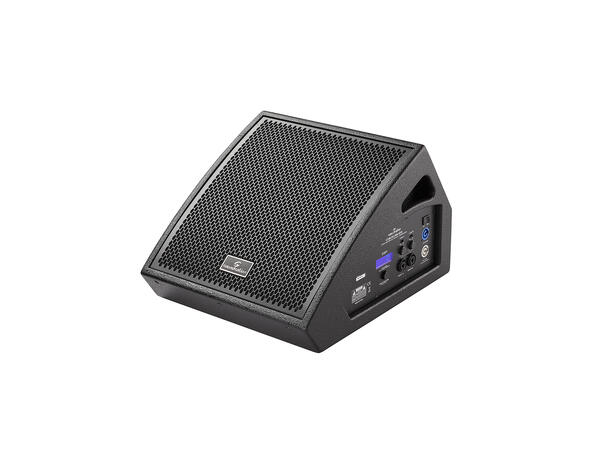

10" Bi-Amped Coaxial Stage Monitor with built-in DSP
CHECKLINE Coaxial Stage Monitor Series is the answer to those rental companies, sound engineers, and bands who need robust, elegant, and handy tools on the stage, but without giving up on high-performance and sonic quality. All three models of the series offer full-range coaxial woofers. The Bi-Amp module delivers 350W (RMS)/ 1000W (Peak) power with absolute sound clarity and reliability. The internal DSP ensures maximum dynamics, overloads and overheating control, and offers 5 EQ factory presets (Full-range, Monitor, Live, Speech, DJ) and other 5 used-defined, with different equalization curves designed for all main applications. Whether they are used as monitor, full-range speaker, front fill or delayed speaker for indoor/outdoor applications with large dimensions, the CHECKLINE series is the perfect ready-to-use solution for audio professionals.
Features:
High-Performance and sonic clarity
1.000W (Peak) Class-D bi-amped power module
48kHz/24-bit DSP with 5+5 EQ presets, 3-band EQ, Low-Cut, Delay (up to 100m)
Dual-Band Peak/Overload/Thermal Limiter
Easy-to-Use DSP Graphic Interface with LCD display and Single Encoder
Two combo inputs (XLR/6.3 jack with MIC/LINE switches)
Two boutique-quality microphone preamps
Rugged, texture-painted plywood enclosure
Sophisticated coaxial transducers
90°x90° sound coverage
Specifications:
System Type: Self-powered 10" two-way, coaxial
Frequency Range (-10 dB): 65 Hz - 20 KHz
Frequency Response (±3 dB): 72 Hz - 20 KHz
Coverage Pattern: 90° x 90° nominal (HxV)
HF Horn: Coaxial (included)
Crossover Modes: Active / DSP
Crossover Frequency: 2.400 Hz
Power Rating (Continuous/Program): 350W /1.000W
Maximum SPL: 126 dB SPL peak
LF Driver: 1x10"/1" coaxial transducer
