DESCRIPTION

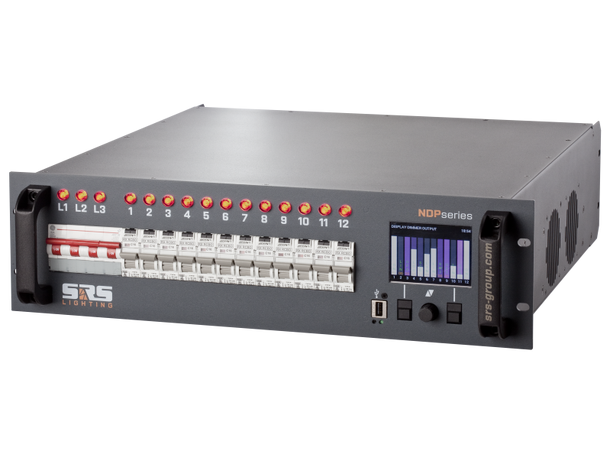

The network dimmer pack NDPG is designed to fulfill all the top requirements of the most demanding lighting applications e.g. theatres, live concerts and also permanent installations. Unit was especially created for users requiring maximum flexibility, top class features and superb network connections.
Unit is controlled by a high speed processor with smooth 16-bit dimming resolution via specially designed zero-crossing circuit. This technology guarantees trouble–free operation and high proof against the influence of negative surroundings with top class rise-time of 400us.
Moreover, the network dimmer pack NDP12 comes with NDP-DC+RELAY feature that is a DC DRIVE/RELAY switch with rating of 16A and possibility to turn on/off via curve. (DC-RELAY is not available for NDP dimmers 25 and 32A).
Every output features its own combination of MCB and RCD 30mA (Type A).
All NDPseries dimming units are covered by a 5-year warranty.
SPECIFICATION
Main voltage: 3x230V / 400V / 40-65Hz
Main current: 3x20 up to 3x63A
Protection: RCBO = Combined RCD 30mA + MCB
DCdrive/pulse driving of triacs
RELAY/DIMMER on single channel - depends on curve
Theater or touring application
Rise-time of 400us
Main switch per unit
RCBO on each channel
Double DMX input + RDM support
Ethernet connection / Art-Net / SRS.net / sACN
Software patch of Manual / DMX A / DMX B / Ethernet
Preheat for all or a separate channel
Free monitoring software
100% duty cycle
Dimensions: 483 x 132 x 460mm (WxHxD)
