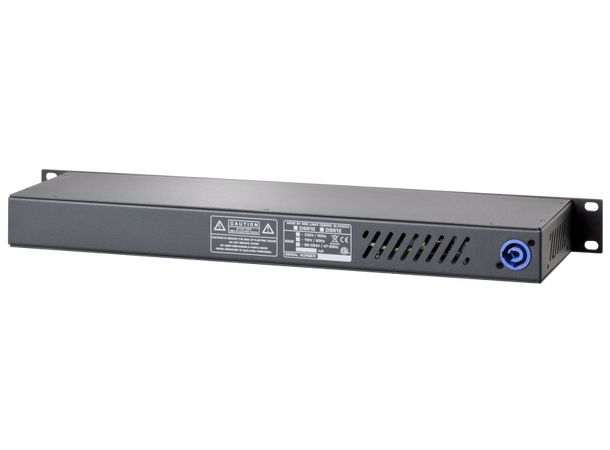

NB! bilde viser versjon uten innganger på bakpanel
DESCRIPTION

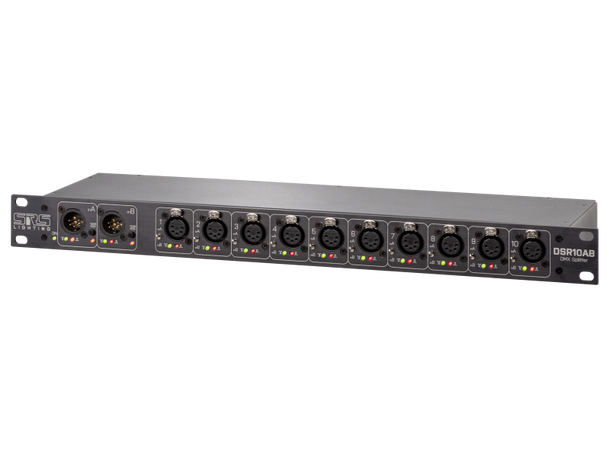

The DSR10AB is a 19'' 1U rack-mount 10-channel splitter / booster of the DMX signal. It contains 2 inputs and 10 outputs on the front panel and additional 2 inputs on the rear panel. Every output features LED indication of the DMX status and an AB switch that allows choosing between the input channels A and B. All outputs are optically isolated up to 1000V.
The DSR10AB comes with 3- or 5-pin XLR connectors or a combination of them.
An alternative product DSR10ABN comes with RJ45 connectors on inputs and outputs.
SPECIFICATION
10-channel DMX splitter / booster with AB switch
Optically isolated outputs 1000V
Amplification on each output
2x LED indicator of the DMX line status for each output
2x Termination switch with LED indication
2x DMX input on the front panel
2x DMX input on the rear panel
1U, 19'' rack-mount
Optional wall mount via UNIHOLDER60
Full range power supply: 85V-264V, 50/60Hz, 5W
Neutrik PowerCon connector
LIFE-TIME WARRANTY
