SYSBOXX SYC3-3161 Frontpanel 4x XLR3m + 4x XLR3f, m/ bryter

SYSBOXX SYC3-3161 Frontpanel

4x XLR3m + 4x XLR3f, m/ bryter

Varenr: 151991

Alt. varenr: SYC3-3161

2 211,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Please order screws separately

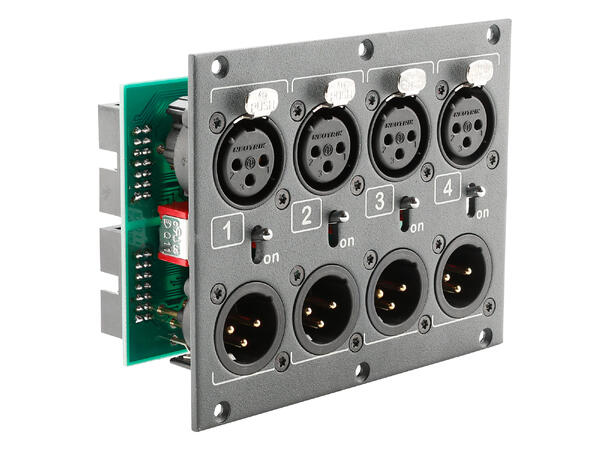

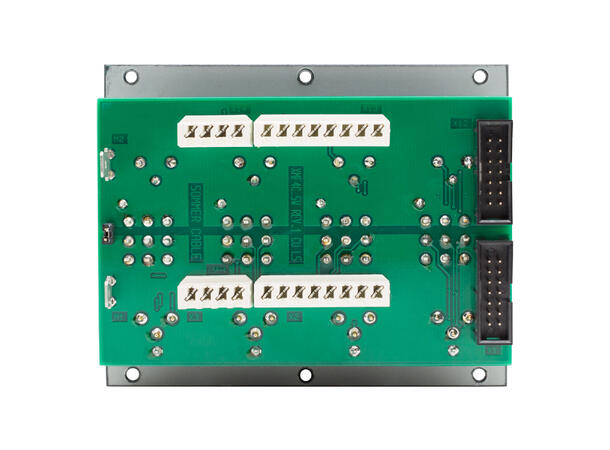

XLR module with 4 ins and 4 outs. - Inputs and outputs can be connected per channel via a 3-pole switch or disconnected all-pole. -Rear side 2 x 14-pole recessed connector and 2 x 12-pole LSA+ cut-and-clamp IDC rail - fully assembled on front panel SYFB23-8A-S- incl. laser marking to customer specifications

Specifications:

Article number	SYC3-3161
EAN	4049371305655
Type	Connector Module
Colour	grey
Colour detailed	anthracite, RAL 7016
Model	4 x XLR 3-pole male + 4 x XLR 3-pole female + 2 x 14-pol When plug and 2 x 12-pol LSA+ IDC strip

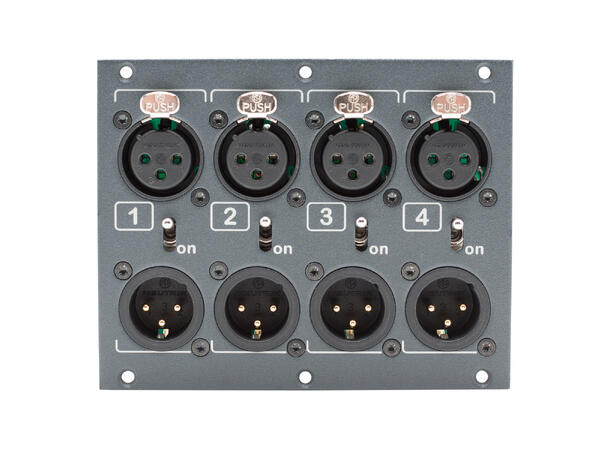

Front page	4 x XLR male
Front page	4 x XLR female
Back	2 x 14-pole When plug
Back	2 x 12-pole LSA+ IDC strip
Affiliation	SYS-series
Width unit BE	3
Height unit HE	2
Matchcode	SYCFB23-X4X4S
