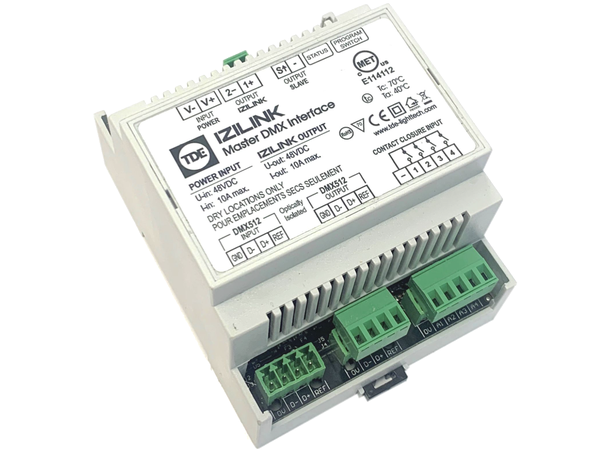

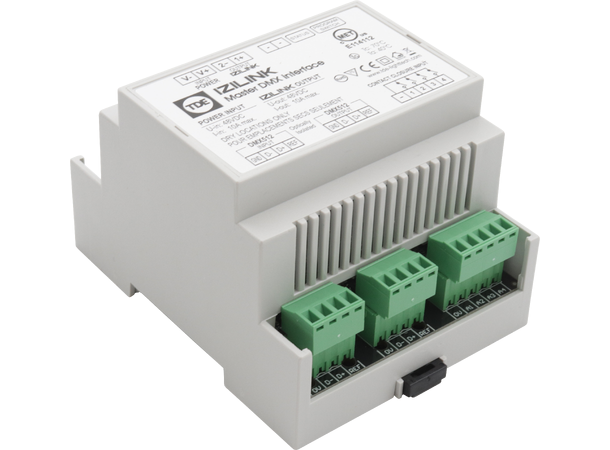

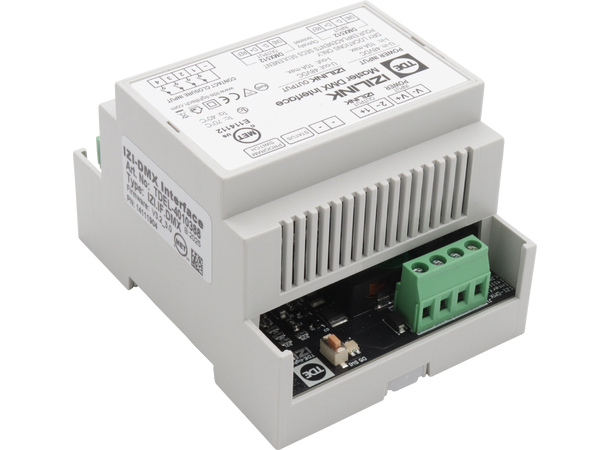

IZI-Link DMX Interface
The IZI-Link DMX interface is needed to set up an IZI-Link system. An IZI-Link system utilizes powerline communication to transmit data over a low-power voltage network, allowing you to control, monitor, and configure each IZI-Link enabled product.
This technique eliminates additional control wiring to IZI-Link enabled LED-spots and LED-drivers, making the installation more reliable and easy to install. The IZI-Link system can easily be scaled into a larger network by adding IZI-Link interfaces.
The IZI-Link DMX Interface is controllable through DMX-512 and has 4 additional galvanically isolated contact inputs to override DMX control for use as emergency contacts or local control switches.
Features
- High power 480W
- 2-wire for power and data
- Remote configuration
- Emergency dry contacts
Technical Specifications
Power
- Input voltage: 48VDC
- Output voltage: 48VDC IZI-Link
- Output power: Max. 480W
- Current output: Max. 10A
Control
- Control input: DMX-512 / 1990 galvanically isolated
- Dry contact input: 4 galvanically isolated
Material
- Housing: DIN-rail (4 module width)
- Input connector: Print connector
- Screw terminal power connections: Max 2,5mm²
- Screw terminal DMX-512: Max 1,5mm²
- Screw terminal dry contacts: Max 1,5mm²
