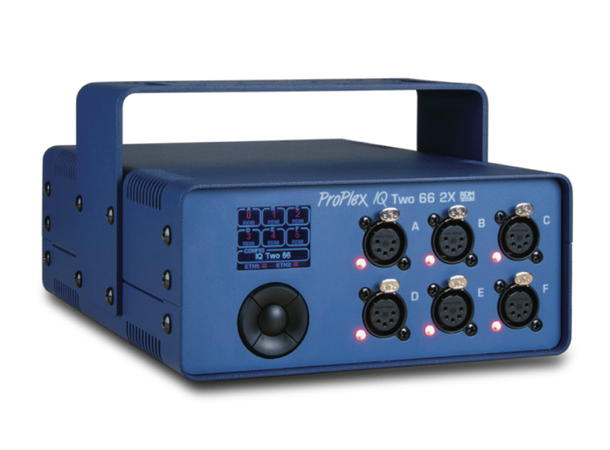

High-power processor for glitch-free data conversion, patching and merging of up to six universes
Powerful yet intuitive feature set, control, management, via on-board LCD, Browser Interface, or ProPlex Software
Dual EtherCon ports allow very low latency linking of units and, with GBS and EZ-LAN, ring topology for speed and redundancy
PoE power-in option for convenience or dual-power redundancy
Merge ArtNet or Streaming ACN from multiple sources
Full bi-directional RDM functionality. Input or output on any DMX connector.
Rugged “BSH” PortableMount enclosure with removable truss yoke. Single and Dual RackMount Kits available
Technical Specifications
Part Number: PPIQB625PR 2
Ethernet Ports: 2
ArtNet/sACN Universes: 6 max.
DMX Ports: 6
DMX Connectors: Neutrik XLR5 Female
DMX Port Isolation: Optical, up to 1000V
Ethernet Connector: Neutrik EtherCon RJ45
Network Protocols: ArtNet, sACN (E1.31)
Power: 100-240V, 50-60 Hz / PoE In (802.3af)
Power Connector: Neutrik PowerCon NAC3MPA
Power Consumption: 48 W
Fuse: 1 A, 250 V
Operating Temp.-20C to +40C
Unit Dimensions (WxHxD): 8.15 x 5.33 x 10.72 in [207 x 136 x 273 mm]
Unit Weight (unpacked): 9.03 lb [4.1 kg]
Shipping Dimensions (WxHxD): 10.25 x 7.3 x 13.5” [261 x 186 x 343 mm]
Shipping Weight: 10.20 lbs [4.64 kg]
