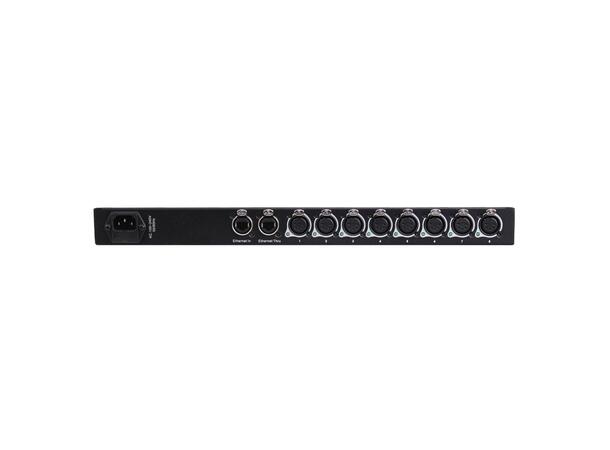

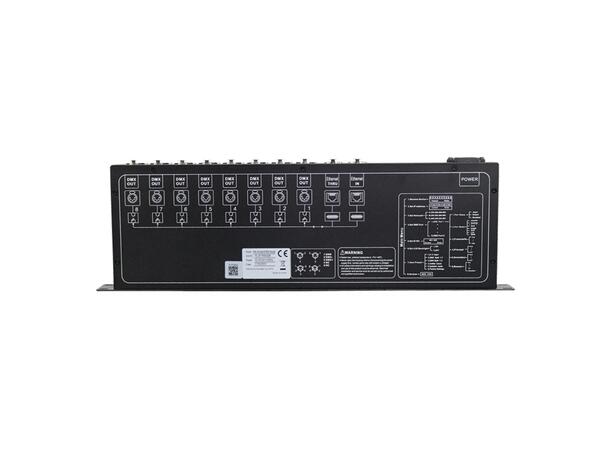

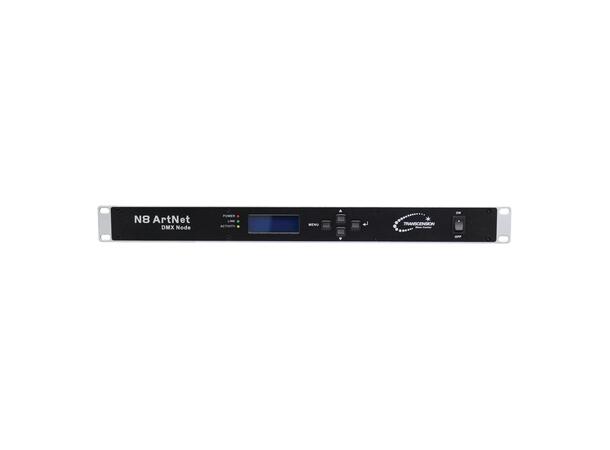

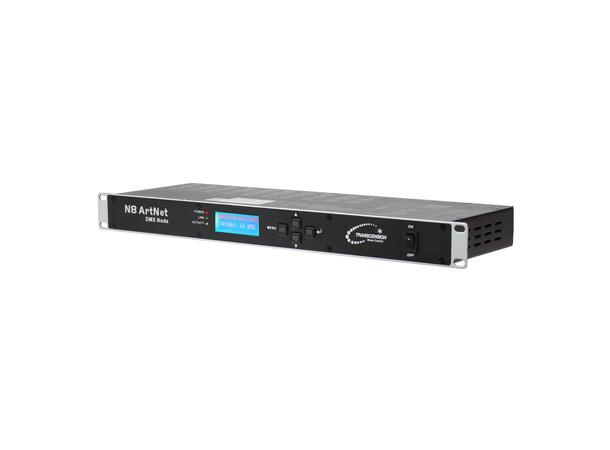

This fully configurable, multipurpose Artnet nodes features eight universes, allowing users to transmit data through an Ethernet network, with up to 512 DMX channels per universe. This solution makes light work of controlling LED fixtures that use many channels, and has three modes of operation: Art-Net™ to DMX node, eight universe DMX to Art-Net™ processor or DMX splitter/buffer. It has eight optically isolated DMX outputs via 5-Pin XLR, Neutrik™ etherCON™ input/through and a fused IEC mains input. LEDs on the front panel provide constant activity status information regarding the network, input data and triggered universes.
Features
- Eight way Art-Net™ to DMX processor
- Art-Net™ input/through via etherCON™ RJ45
- 4096 channels
- 4 push button menu with LCD display
- 6 user presets
- 10/100M LAN interface
- Supports TCP/IP protocol
- Manual IP address selection
- Eight DMX512 outputs via 5-Pin XLR
- RDM Support
- Electronically isolated inputs and outputs
- IEC power input
- 19”/1U rack mountable
