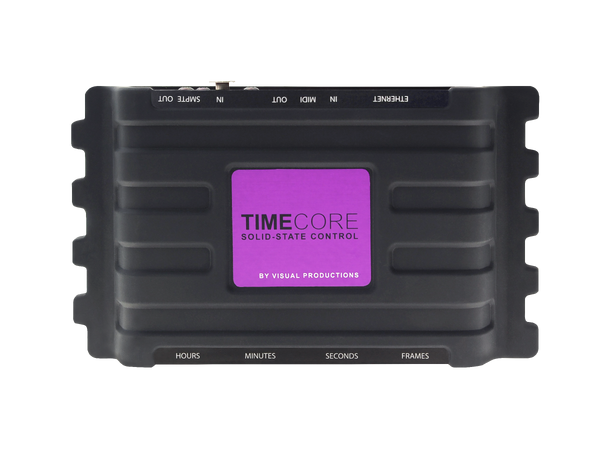

Timecore
The TimeCore is a compact device that can perform all tasks related to timecode. It can generate, follow, convert and display timecode signals. It even handles a number of non-timecode protocols.
Generating and following timecode

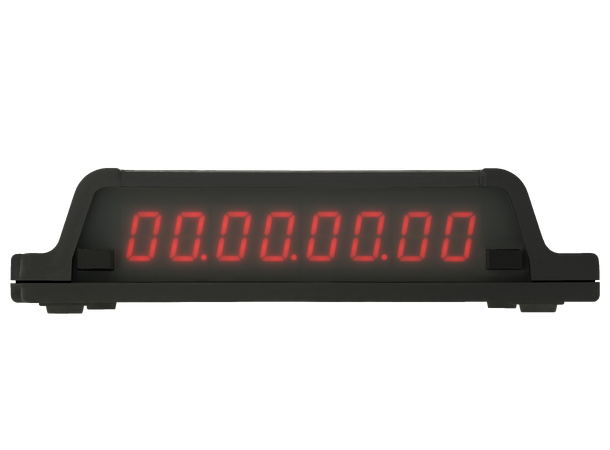

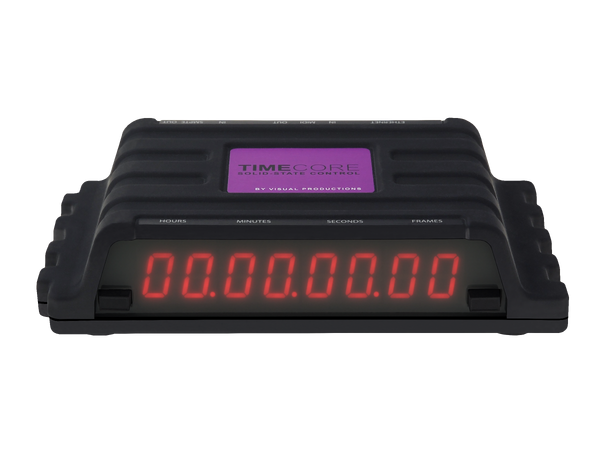

The TimeCore can be set to be a timecode master, in which it will generate a stable timecode signal. Alternatively, the unit can also be set as a timecode slave. A large LED display gives a real-time readout on the current timecode frame..
Converting timecode
The unit supports receiving and transmitting SMPTE (LTC), MTC and a Ethernet-based timecode (Art-Net). The TimeCore is capable of converting between any of these protocols. It can even convert between different frame-rates (24, 25, 29.97, 30).

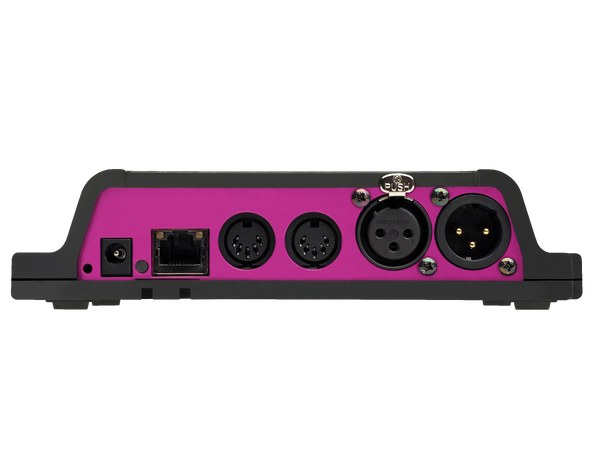

Ethernet capable

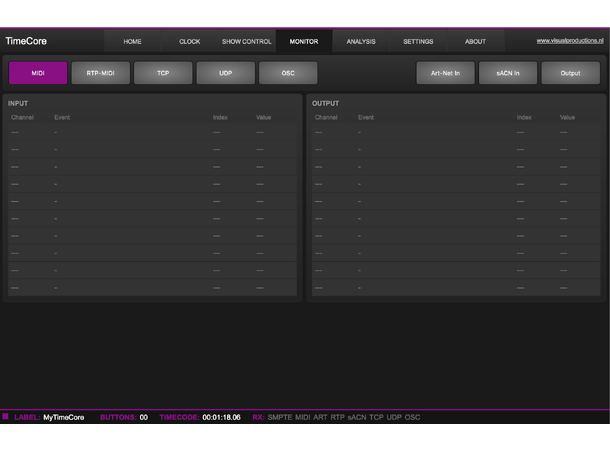

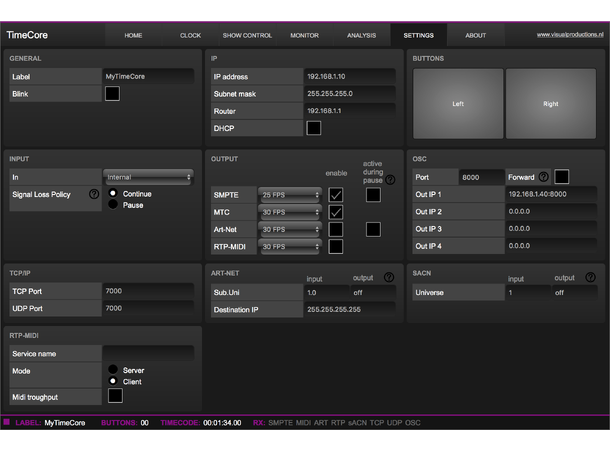

The TimeCore has an Ethernet port that allows you to access the internal web-server. This web-server enables you to fully configure the behaviour of the device..

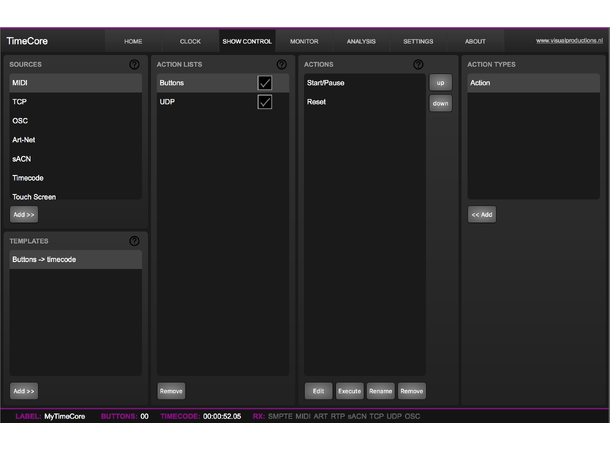

Show Control protocols
Various protocols that are often found in show control are supported; for instance UDP, TCP, OSC and MIDI. Any messages received from these protocols can be used to start, stop or manipulate the timecode. Furthermore, sending out these protocols Cbe mapped on the timeline.
Lighting Protocol
The TimeCore speaks lighting languages like Art-Net and sACN. The unit can directly interact with your lighting desk

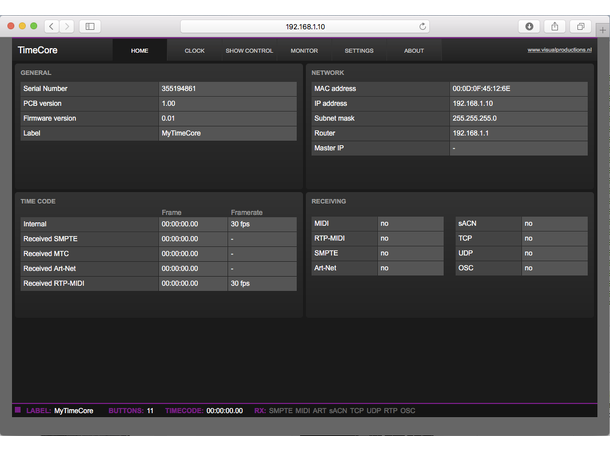

Web-interface Home page
The TimeCore can be set to be a timecode master, in which it will generate a stable timecode signal. Alternatively, the unit can also be set as a timecode slave. A large LED display gives a real-time readout on the current timecode frame..
Family
The functionality of the TimeCore can be extended by combining it with other members of the core product family. The IoCore can add GPI, 0-10V, GPO and RS-232 ports to the TimeCore. The CueCore extend with DMX-512 and recorded lighting shows. The B-Station can act as a remote control.
Download the software tools
We have bundled the TimeCore with software tools. vManager, allows you to discover TimeCores on the network, backup their internal data and upgrade firmware. There is also a simple program for creating custom touch-screen user-interfaces called Kiosc.
https://www.visualproductions.nl/downloads/
Specifications
• Timecode master, slave & converter
• Timecode display
• 2 user-definable push-buttons
• SMPTE LTC
• MTC MIDI timecode
• Art-Net timecode
• TCP
• UDP
• OSC
• Art-Net
• sACN
• MIDI notes, MMC, MSC
• Show Control function
• Compatible with Kiosc
• Desktop or DIN Rail mounted
• PoE Class I
