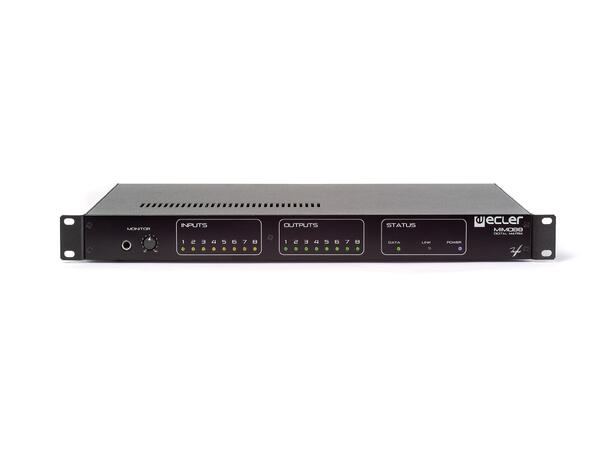

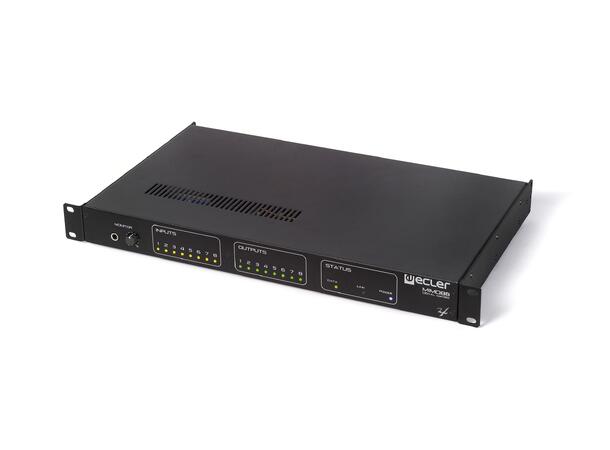

MIMO88
8x8 digital audio matrix, fully programmable, DSP, expandable to 16x16 by linking a second unit.
Main features
- Expandable to 16x16
- controllable via EclerNet software
- UCP remote control (WPNETTOUCH + 3rd party)
- TP-NET protocol
- DSP: signal generator, delays, parametric EQ, noise gate, compressor/limiter, ducking, paging, auto-mixer, presets, scheduled events
- frequency shifter (anti-feedback) per input.
Technical specifications
- Processor: 2x32/64bit
- Sampling: 48kHz, 24bit AKM
- Latency: <2.9ms (+1ms for 16x16)
- Freq response: 5Hz-24kHz(-3dB)
- Dynamic range: AD 110dB/DA 115dB

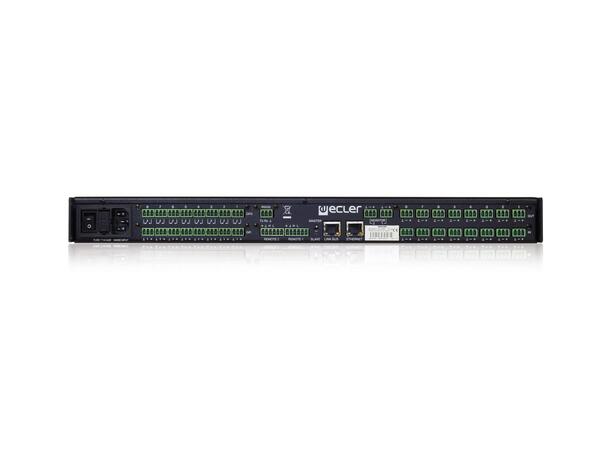

- I/O: 8+8 mic/line, terminal block
- Input sensitivity: -50 to +10dBV
- Phantom power: +42VDC 5mA
- Ethernet: 1xRJ-45 10/100
- Serial: RS-232
- GPIs/GPOs: 8/8
- Dimensions: 482.6x44x266.5mm (1RU)
- Weight: 3.5kg
