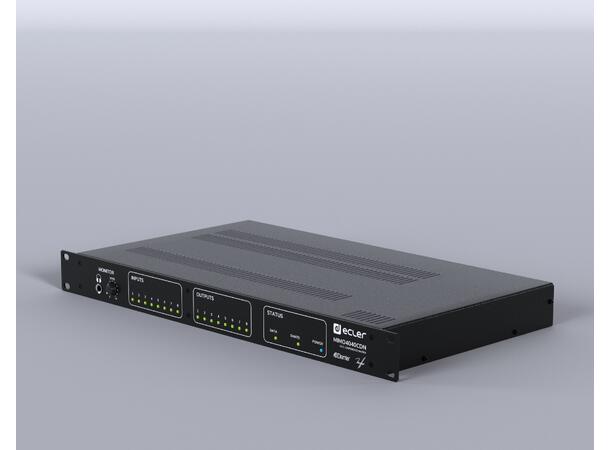

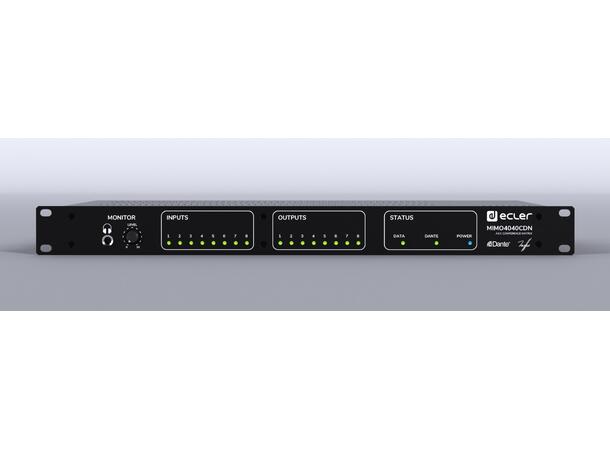

MIMO4040CDN

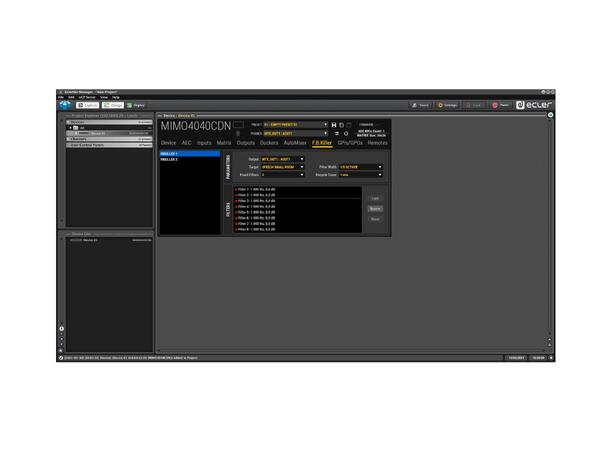

40x40 digital audio matrix with Dante/AES67, CONFERENCE firmware, designed for conference rooms with AUTOMIXER/FEEDBACK KILLER by default and up to 8 AEC-processed mic channels via software licenses.
Main features
- CONFERENCE firmware only
- 40x40 audio I/O ports
- 40x40 native digital matrix
- 8 MIC/LINE analogue inputs
- 8 LINE analogue outputs
- 32 Dante/AES67 digital inputs
- 32 Dante/AES67 digital outputs
- 8 GPI + 8 GPO
- 2 Dante interfaces (redundant capable)
- Ethernet + RS-232 control (EclerNet, UCP, TP-NET, WPNET)
- Embedded UCP project manager/server

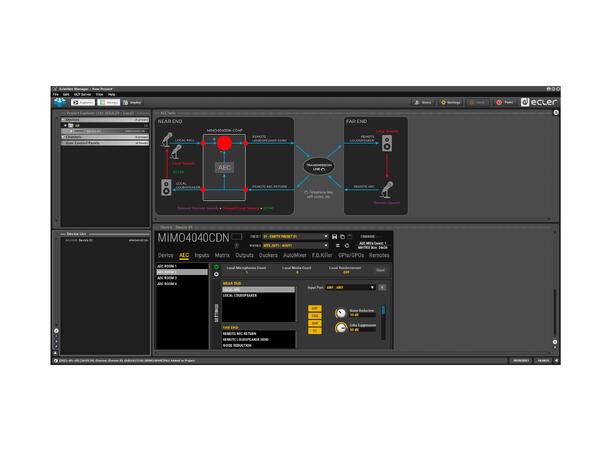

- Includes 2x AEC processing channel license free of charge, expandable via M40-AEC licenses
Technical specifications
- Processor: Quad core 64bit 1GHz
- Sampling rate: 48kHz
- Resolution: 24bit
- Latency: <4.3ms
- Frequency response: 5Hz-24kHz(-3dB)
- Dynamic range: AD 110dB, DA 115dB
- Analogue inputs: 8 Mic/Line terminal block
- Input sensitivity: -50 to +10dBV
- Phantom power: +42VDC 5mA, sw switched
- Analogue outputs: 8 Line terminal block
- Max output level: +18dBV
- Monitor outputs: 2, + headphones jack 1/4
- Dante/AES67: 32/32 flows, 2xRJ45 (Primary/Secondary)
- Ethernet: 10/100Mb,1GB Auto X-Over
- Serial: RS-232 DB9
- Control: EclerNet manager v6.00+, TPNET, UCP, WPNET
- GPIs: 8, 0-10VDC/TTL
- GPOs: 8, isolated relay 1A/48VDC
- RTC retention: >3 months
- Power supply: PoE DC
- AC mains: 90-264VAC 47-63Hz
- Power consumption: 30VA
- Installation: 19" rack 1RU
- Dimensions: 482.6x44x253mm
- Weight: 3.25kg
