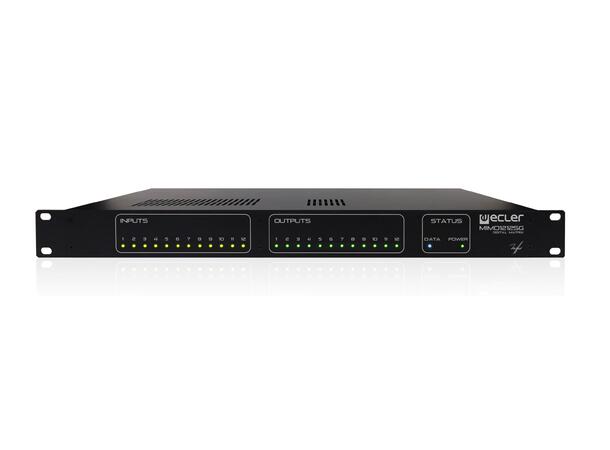

MIMO1212SG
Simplified, cost-effective 12x12 EclerNet digital audio matrix (MIMO1212 Single), not expandable.
Main features
- 12x12 digital matrix (not expandable)
- Fully programmable via EclerNet software
- Remote UCP control, WPNETTOUCH compatible
- TP-NET protocol
- DSP: signal generator, delays, full parametric EQ, noise gate, level/mute/phase, vu-meters, compressor/limiter, paging/ducking, presets, scheduled events
- Frequency Shifter on 4 inputs
- WPNET4KV/WPNET8K compatible via retro firmware
Technical specifications
- Processor: 2x 32/64bit
- Sampling rate: 48kHz
- Resolution: 24bit AKM
- Latency: <3.2ms
- Frequency response: 5Hz-24kHz(-3dB)
- Dynamic range: AD 110dB, DA 115dB

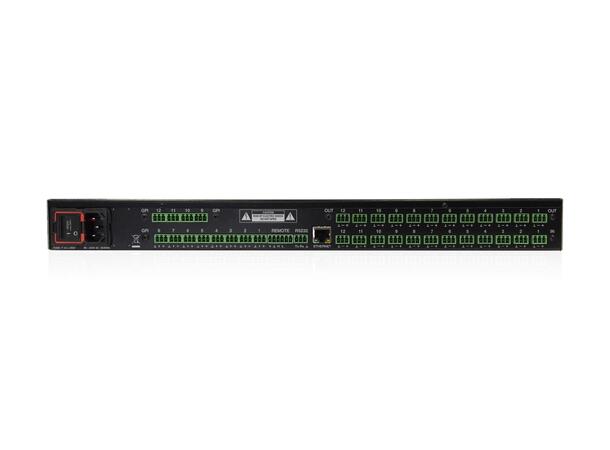

- Inputs: 12 Mic/Line, terminal block symmetrical
- Input sensitivity: -50dBV to +10dBV in 0.5dB steps
- Phantom power: +42VDC 5mA max
- Outputs: 12 Line, terminal block symmetrical
- Max output level: +18dBV
- Ethernet: 1 RJ45 Base-Tx 10/100Mb
- Serial: RS-232
- Control: EclerNet manager v3.03r4+, TPNET, UCP
- GPIs: 12, 0-10VDC or TTL
- RTC retention: ~100 hours
- AC mains: 90-264VAC 47-63Hz
- Power consumption: 75VA
- Installation: 19" rack 1RU
- Dimensions: 482.6x44x253mm
- Weight: 3.2kg
