Features:
Sixteen channel / three way split per channel
Passive unit - no power required
Ultra low noise design
D sub connectors on rear panel for Monitor and Auxiliary Splits (Tascam wiring)
Transformer Balanced Inputs and Outputs
Inputs and Main Outputs hard wired to pass Phantom Power
Intuitive, 'user friendly' layout
Flawless audio performance
About the MSX 48
The ARX MSX 48 Transformer isolated Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today’s standards of audio production.
The MSX 48 is a totally passive device requiring no power, and consists of Sixteen channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel.
On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed. Duplicates of the Monitor and Aux splits are also provided on two sets of dual 25 pin D connectors on the rear panel, wired to Tascam wiring protocol.
Numbered marker panels on the front and rear provide a space where individual channel connections can be noted.
The all-steel chassis of the MSX 48 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation.
The MXS 48 is the easy answer to multi channel signal splitting requirements.
Input Impedance 300 Ohms
Output Impedance 2 secondaries @ 600 Ohms each
Frequency Response 30Hz - 20 KHz ± 1dB
Maximum Output Level + 20dBm
THD at Max Output 0.2% 30 Hz - 20KHz @ 20dBm
Insertion Loss 0.5dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Main Output 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold
Monitor & Aux Output 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating.
Weight 13.5 lbs (6 Kg)

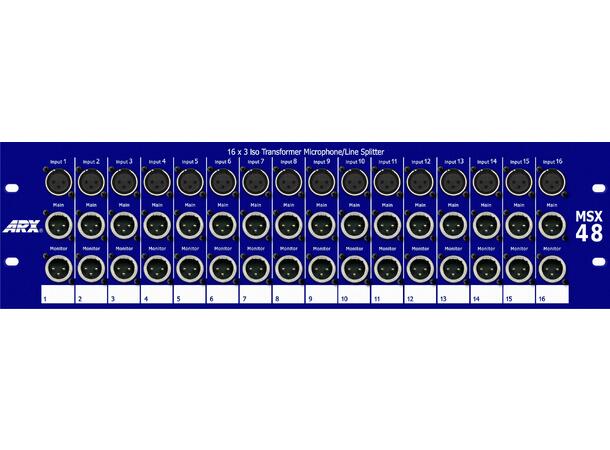

Front Panel
16 x Hardwired balanced XLR Input and Main Outputs. Pin 3–-, Pin 2 +, Pin 1 Ground
16 x Hardwired transformer isolated balanced XLR Monitor Splits. Pin 3–-, Pin 2 +, Pin 1 floating (not connected)
Numbered marker panel for labelling individual channel assigns

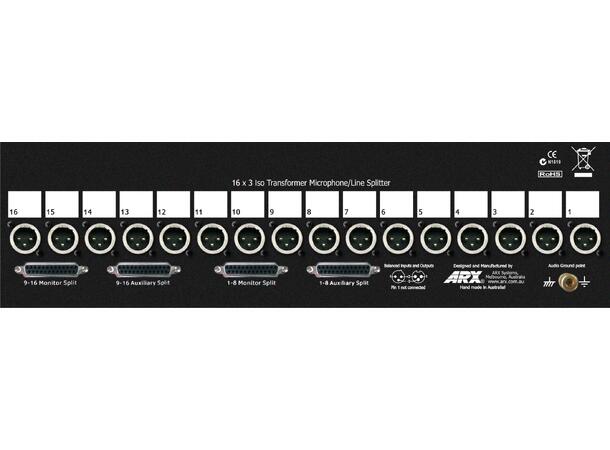

Rear Panel
16 x Hardwired transformer isolated balanced XLR Auxiliary Splits. Pin 3–-, Pin 2 +, Pin 1 floating (not connected)
2 x D Sub connectors for Monitor Splits
2 x D Sub connectors for Auxiliary Splits
Screw Terminal Chassis Ground point
Note: No connections to Audio ground
