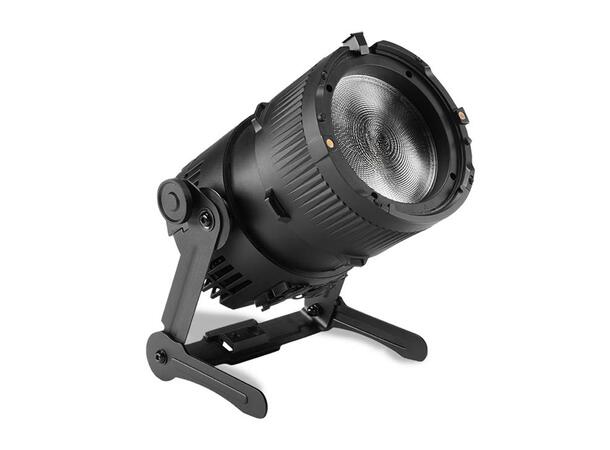

Accurate punch, fast operation. This wireless spotlight with Fresnel lens features a 13º–60º zoom, zero stray light, and delivers 8,000 lux at 3 meters—all with just 75W of power. (650 W equivalent.) It’s not only a future-proof investment, but also a fixture every event, film, or broadcast crew will want on set.
AS A POWERFUL UPLIGHT
Following the successful applicability of QuikSpot, QuikPunch is a brighter uplight with a perfect optical beam -where all colors are mixed right after the Fresnel lens. It lasts 4.5 hours at full brightness with OutputGain activated, and its 13º spotted beam makes it ideal for long throws to lit columns and high buildings.
AS AN EXCELLENT FRESNEL

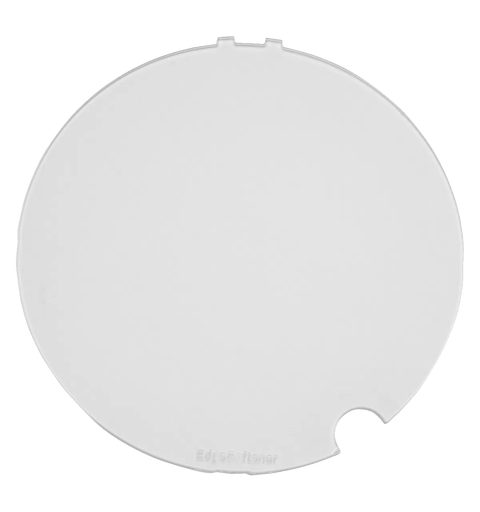

QuikPunch is a high-quality Fresnel projector with a 5” lens, in the same tradition of the popular 650 W Tweenies in both film and broadcast worlds. It is punchier enough to lit talent from 3 meters / 9.8 feet away, and it comes with a wider 60º beam angle when in flood position. But unlike traditional Fresnels, QuikPunch delivers zero spill light, its edges are sharper, and it does not force users to flood it in order to use barndoors. The EdgeSoftener filter is also available for those who like the retro-look and beam blending of conventional lamp-based Fresnels.
AS A VERSATILE STAGE PAR
Being as bright as a conventional 200 W LED PAR in just 75 W of Power consumption, QuikPunch works great on stage. It can deliver aerial beams when used as a backlight, it works really good on lighting booms taking advantage of its barndoors and it also delivers an elegant look for captivating eye candy effects due to its large single source lens.
AS A COMPACT WALL-WASHER
Because QuikPunch is bright even with its zoom at 60º, it can be used as a convenient wall-washer to reduce the amount of units needed to illuminate a wide surface evenly. It is powerful enough to replace a small LED wash light, it is battery-driven, and it is CRMX controllable, meeting all the conditions for this type of application.
- Order Code: AST-QUKPN
- LED Engine: Titan LED Engine
- Colors: RGBMintAmber
- Output Gain: Yes
- LED Power Draw: 75 W
- Tungsten Equivalent: 650 W
- CRI (Ra)/ TLCI 3200- 6500 K*: =96
- Strobe: 0 - 25 Hertz
- Battery Runtime: up to 20 hours
- Battery Runtime (max. Brightness): 4 hours 30 min
- Battery Lifetime: 70 % after 500 cycles
- Charging Time (nominal): 5 hours 15 min
- AC Input: 100 - 240 VAC, 50 / 60 Hertz
- 115 VAC - 0.6 A / 230 VAC - 0.3 A
- AC Connector: PowerCON TRUE1 IN / OUT
- Power Consumption (max.): 100 W
- Wired DMX: Yes
- CRMX Receiver: Built-in
- BluetoothBridge: BTB Built-in
- Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
- Wireless Range CRMX/UHF: up to 300 m / 330 yds
- Bluetooth: up to 3 m / 3.3 yds
- RDM Support: Wireless and wired
- Infrared Control: Yes
- PrepBox compatible: Yes
- IP Rating wired / unwired: IP65
- Ambient Operating Temperature: 0 - 40 °C / 32 - 104 °F
- Weight: 6.567 kg / 14.48 lbs
- Dimensions (L x W x D): 237.5 mm x 195.8 mm x 309 mm /9.35" x 7.71" x 12.17"
- Mounting Options: AirlineTrack, 3/8" - 16 UNC thread, Yoke (with 3/8" - 16 UNC thread, 1/2" hole)
