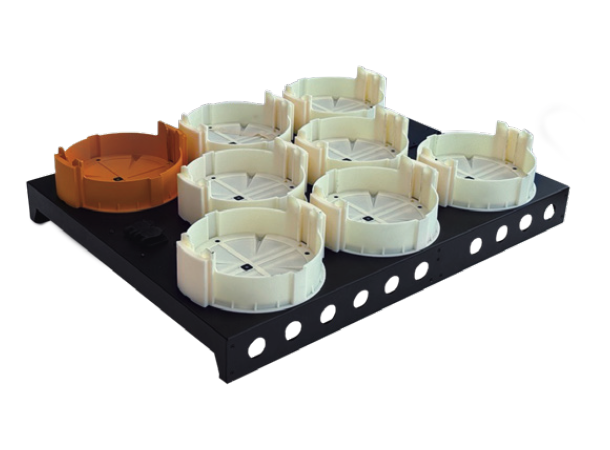

PrepBox-compatible, contact-based charging device, can charge up to 8 QuikPunch at the same time
Technical Specifications- Order Code AST-QUKPN-CHRPLT
- Input Voltage 100 – 240 VAC, – 50/60 Hz, 115 VAC – 9 A, 230 VAC – 5 A
- Output 8 x 25.5 VDC, 3.45 A
- Connectors "PowerCON TRUE1 IN/OUT / 7 Pin for PrepBox Cable"
- Cables 1 x PowerCON TRUE1 cable (AX5-CHR)
- Weight 10.54 kg / 23.24 lbs
- Dimensions (L x W x D) 715mm x 558mm x 151mm / 28.15" x 21.97" x 5.94"
