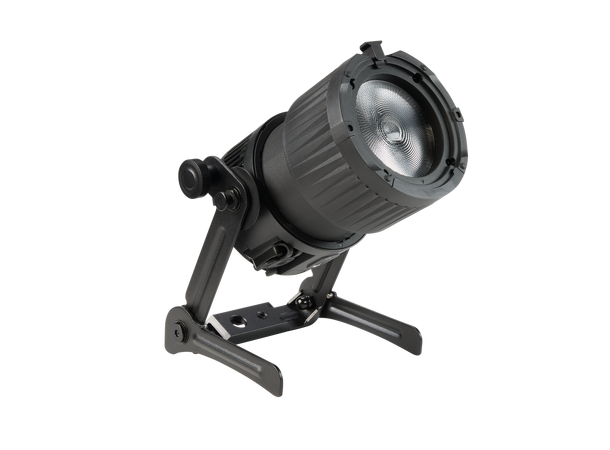

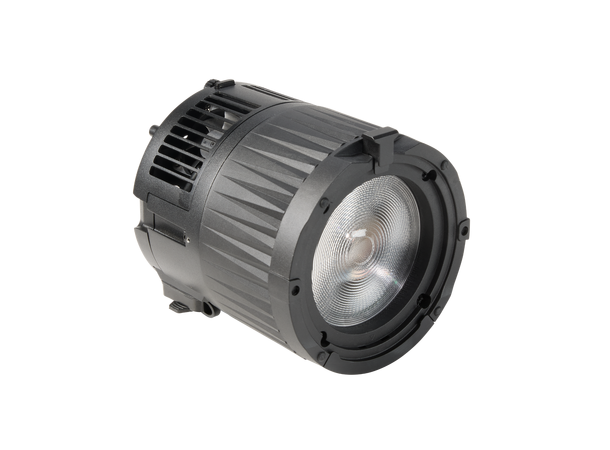

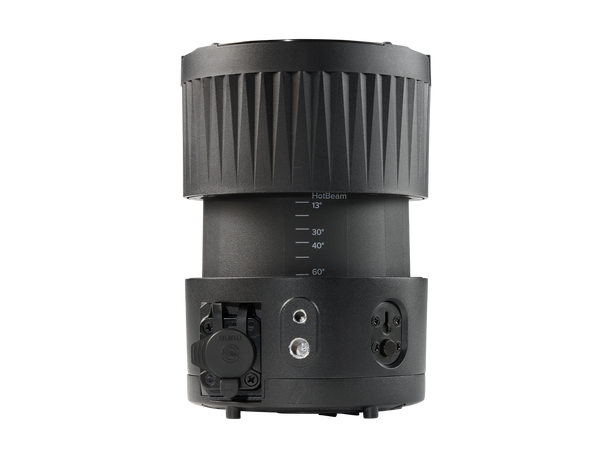

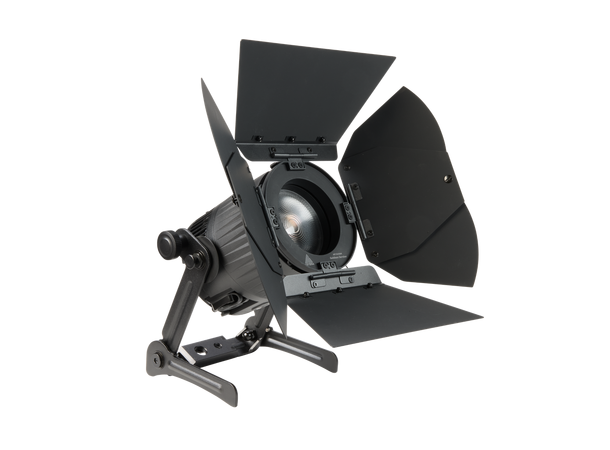

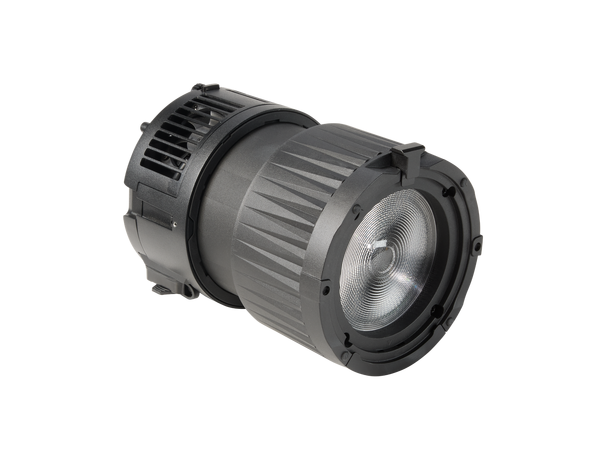

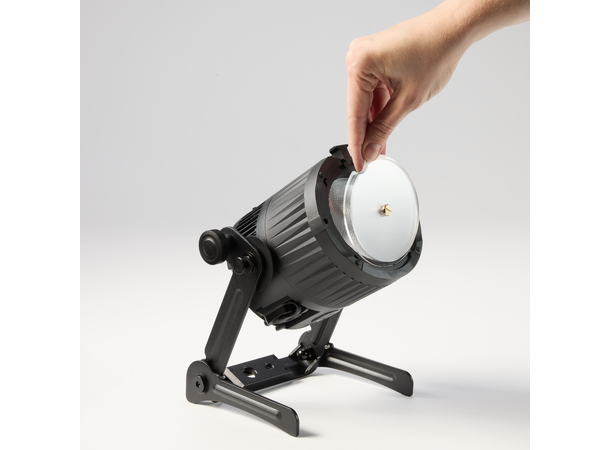

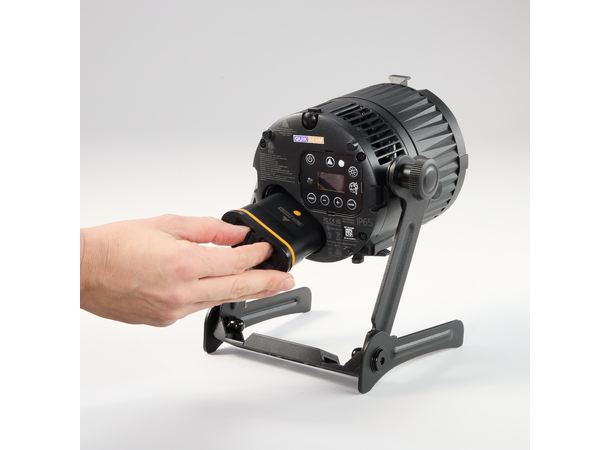

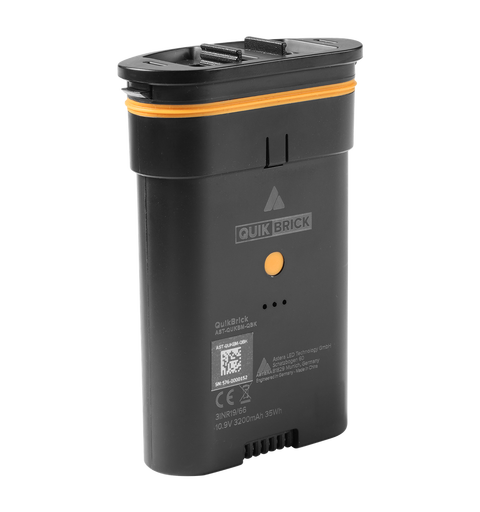

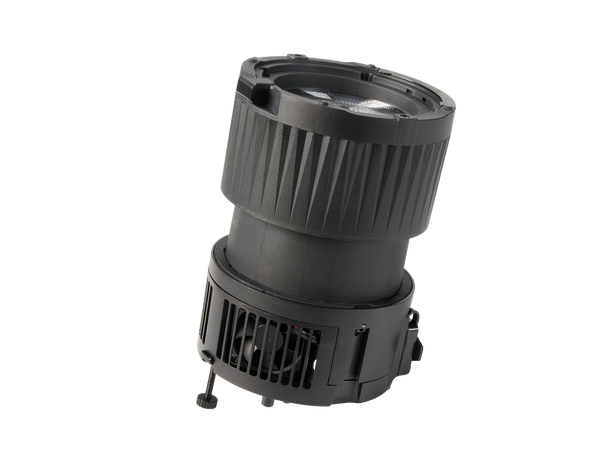

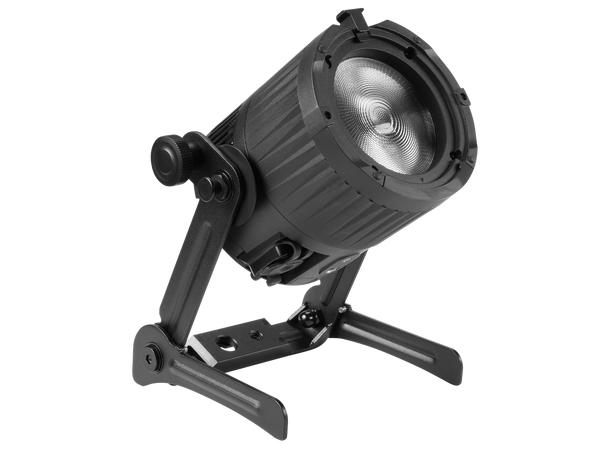

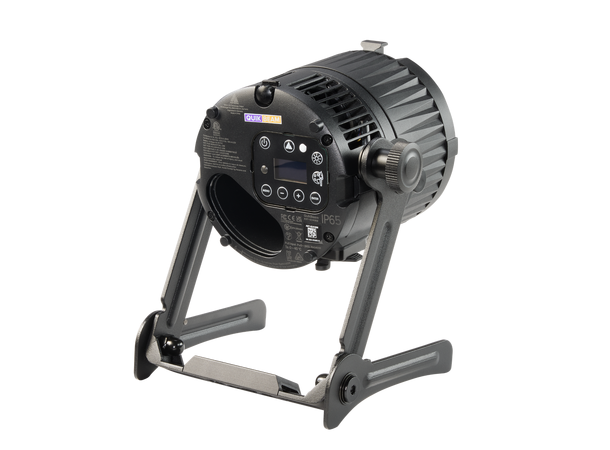

Designed to blend in. Engineered to stand out. As a compact spotlight, QuikBeam delivers the power of a 200W Tungsten equivalent, with a 13º–60º Fresnel based zoom, swappable QuikBrick batteries, and built-in PoE.
Powered by the Titan LED Engine, it provides rich, accurate color rendering. Lightweight, versatile, and future-ready, it works perfectly for events of any size, indoors or outdoors, and for film and broadcast sets alike.
|
|
|
|---|
Order Codes | AST-QUKBM-STD |
|
|---|
LED Engine | Titan LED Engine |
|---|
Colors | RGBMintAmber |
|---|
LED Power Draw | 20 W |
|---|
Luminous Flux 2700 K | 1124 Lumens |
|---|
Luminous Flux 3200 K | 1190 Lumens |
|---|
Luminous Flux 4000 K | 1239 Lumens |
|---|
Luminous Flux 5500 K | 1285 Lumens |
|---|
Luminous Flux 6500 K | 1224 Lumens |
|---|
Candela 2700 K | 18545 cd |
|---|
Candela 3200 K | 19575 cd |
|---|
Candela 4000 K | 20312 cd |
|---|
Candela 5500 K | 20663 cd |
|---|
Candela 6500 K | 20564 cd |
|---|
Light Output 2700 K @ 3 m | 2059 Lux |
|---|
Light Output 3200 K @ 3 m | 2174 Lux |
|---|
Light Output 4000 K @ 3 m | 2257 Lux |
|---|
Light Output 5500 K @ 3 m | 2294 Lux |
|---|
Light Output 6500 K @ 3 m | 2285 Lux |
|---|
CRI (Ra) / TLCI 3200 – 6500 K
(OutputGain disabled) | =96 |
|---|
OutputGain | Yes |
|---|
Beam Angle | 12.6° – 58.5° |
|---|
Field Angle | 16.9° – 78.2° |
|---|
Strobe | 0 – 25 Hertz |
|---|
Battery Runtime | up to 20 hours |
|
|---|
Battery Runtime (max. Brightness) | 1 h 20 m | |
|---|
Charging Time (nominal) | 2 h 40 m | |
|---|
DC Input | PoE++ |
|---|
DC Connector | RJ45 |
|---|
Ethernet Port Speed | 100 Mbit/s |
|---|
Power Consumption (max.) | 40 W |
|---|
Cable length | up to 100 m |
|---|
ArtNet/sACN | via Ethernet |
|---|
CRMX Receiver | Built-in |
|---|
BluetoothBridge BTB | Built-in |
|---|
Wireless Protocols | CRMX, UHF, Bluetooth, WiFi |
|---|
Wireless Range | CRMX / UHF up to 300 m / 330 yds
Bluetooth up to 3 m / 3.3 yds |
|---|
RDM Support | via CRMX |
|---|
Infrared Control | Yes |
|---|
IP Rating unwired | IP65 |
|---|
IP Rating wired | IP65 |
|---|
Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F |
|---|
Weight | 1617 g / 3.56 lbs |
|
|---|
Dimensions (H x Ø) without yoke | 136 mm x Ø 120 mm /
5.35" x Ø 4.75" |
|---|
Dimensions (L x W x D) with yoke | 241 mm x 174 mm x 125 mm /
9.48" x 6.84" x 4.93" |
|---|

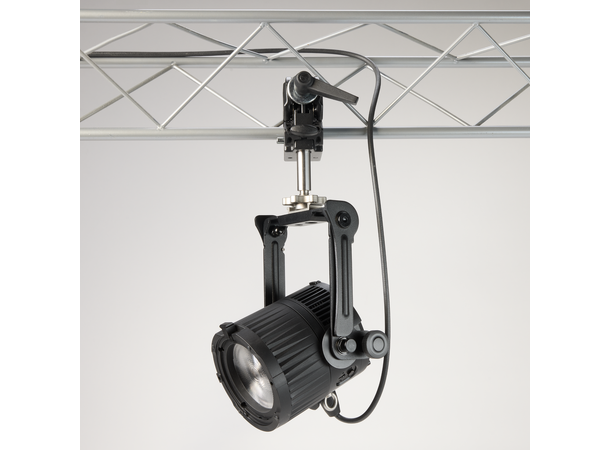

Mounting Options | 1/4" – 20 UNC, 3/8" – 16 UNC thread, Yoke (with AirlineTrack, 3/8" – 16 UNC thread, 1/2" hole) |
|---|
