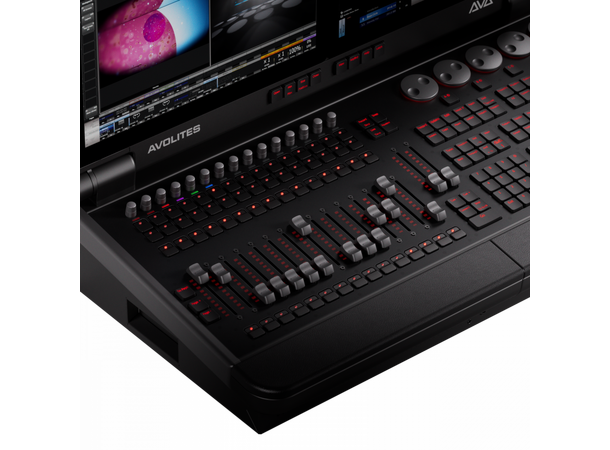

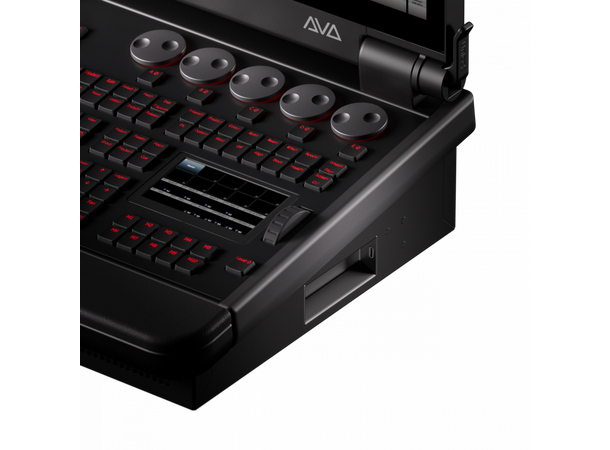

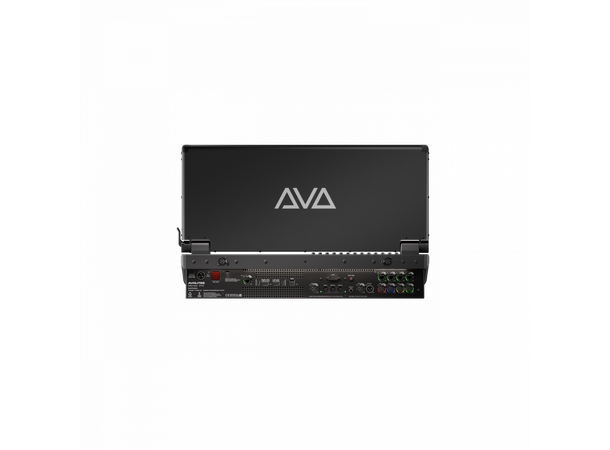

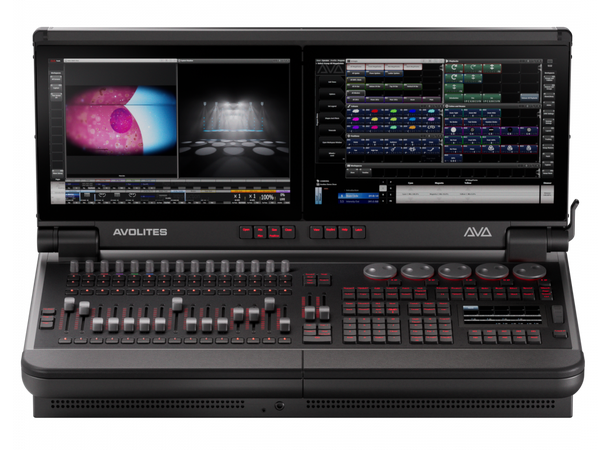

AVOLITES D7-215 Diamond 7 Console

The latest in the Diamond collection of consoles

• 15 motorised touch-sensitive faders, with designer fader cap and RGB fader indicator
• Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches

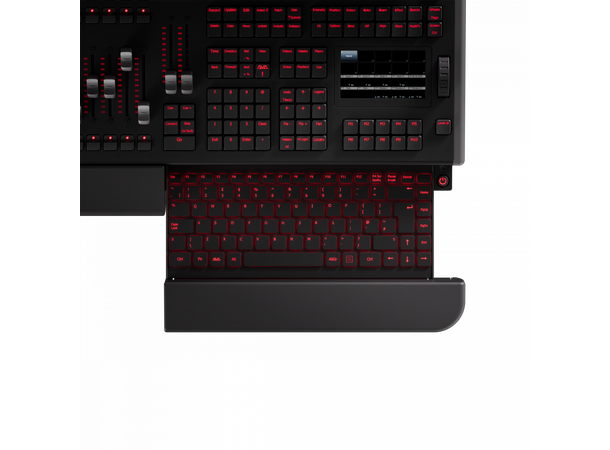

• Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
• 4 x Neutrik XLR on primary network port, 1 x Neutrik XLR on secondary network port, internally switched and managed
• GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector
• 15 ultra high resolution touch sensitive playback encoders with push function, and RGB encoder indicator
• Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
• 2 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness, mounted on folding panel
• LED desk reading light in panel above screens and over rear panel
• MIDI in, Loop & Out port in DIN 5, SMTP in/loop out, Foot trigger input, Audio trigger Input
• Supports 2 x additional external DisplayPort 1920*1080 touchscreens
• 5 x custom RGB backlit optical attribute encoders
• Dedicated level wheel and onscreen level indication
• 4 x isolated DMX outputs via 5 pin XLR connectors
• SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation
• Fits into a custom Peli-Air Case 1650
