BASIC WCZ-CRIMPER Krympeverktøy

For LK, Socapex, Harting etc.

Varenr: 140243

Alt. varenr: WCZ-CRIMPER

15 801,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

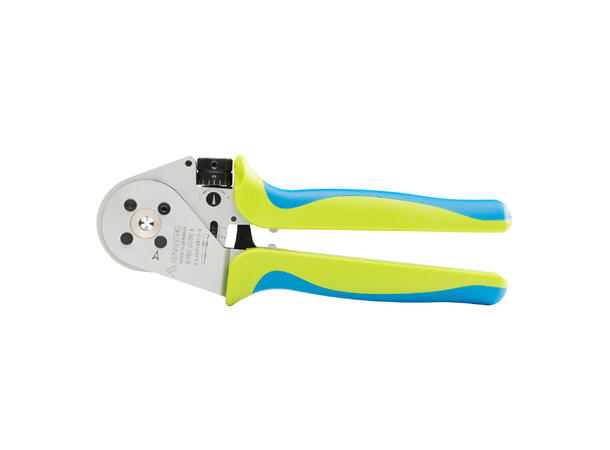

Universal four-mandrel crimper plier AWG26-10

In case - Incl. Plug gauge for checking – Patented tool – Crimp mandrel feed adjustable in steps of 0.01 mm (0.0004 in.) with scale reading – Max. contact diameter 7.5 mm (0.3 in.) - Length: 230 mm (9.06 in.)

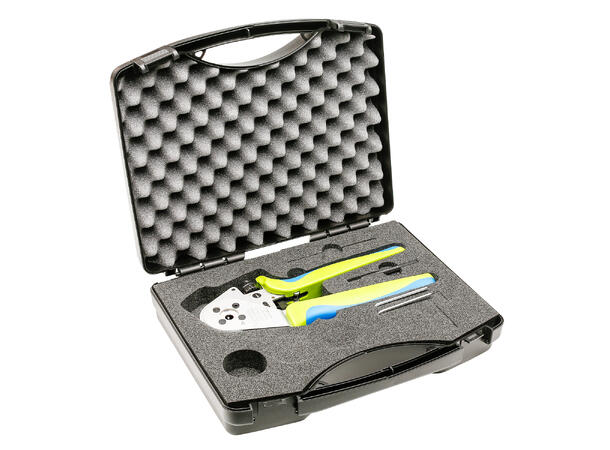

This should be the right solution for most users. It's a high-quality 4-mandrel crimper plier with case the crimping depth of which can be adjusted down to a 1/100th mm (0.0004 in.). The crimping range goes from 0.14 – 6 sq mm (0.0002 – 0.009 sq in.) – and is hence sufficient even for thick Elephant cables! The instrument comes in a case along with tools and plug gauge – so it's a professional tool.

Fits the following contacts :-HI-LKPIN-... (all types) -HI-SOCAPIN-... (all types) -ILME CD... (all sizes & types) -ILME CC... (all sizes & types)

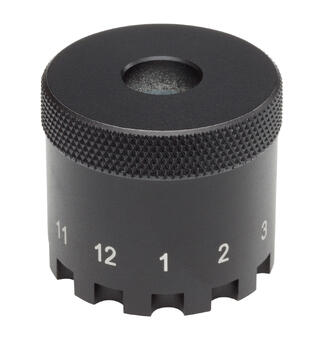

Required matching contact support:-WCZ-CRIMPLOC
