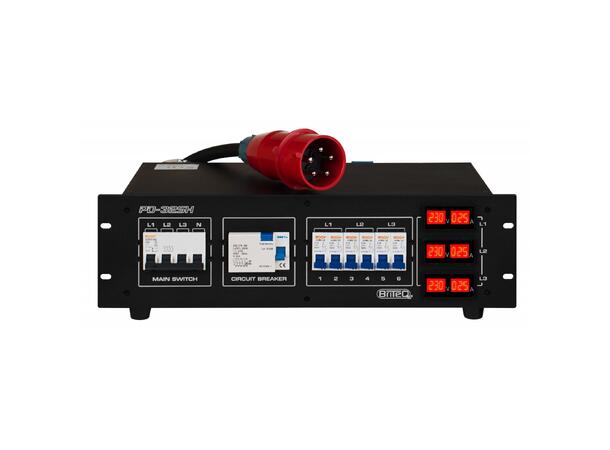

This 3-phase power distributor is designed to improve safety in both mobile, rental and fixed installations.
Choice of different outputs for maximum flexibility (rental companies!):

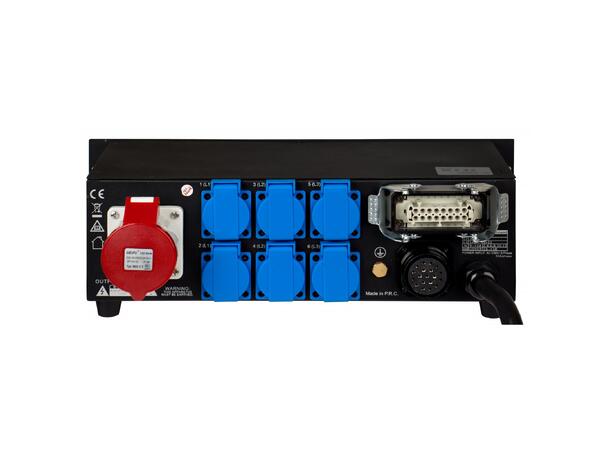

6x earthed 16A mains outlet sockets: (2 sockets per phase, German 16A blue schukos (CEE 7/4))
1x 16PIN industrial rectangular connector: output for use with standard wiring for rental multi-cables
1x 19PIN industrial round connector: output for use with standard wiring for rental multi-cables
Designed and build to the highest European and international safety standards.
Oversized internal wiring for increased reliability!
32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected!
The 30mA, 4pole residual current circuit breaker prevents electrical shocks
Accurate digital 3-digit voltmeters per phase
Accurate digital 3-digit ampere meters per phase
Two C16 (16A - 1P+N) automatic circuit breakers per phase
1,5m long mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug
CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass
Extremely robust 19"/3U metal housing
