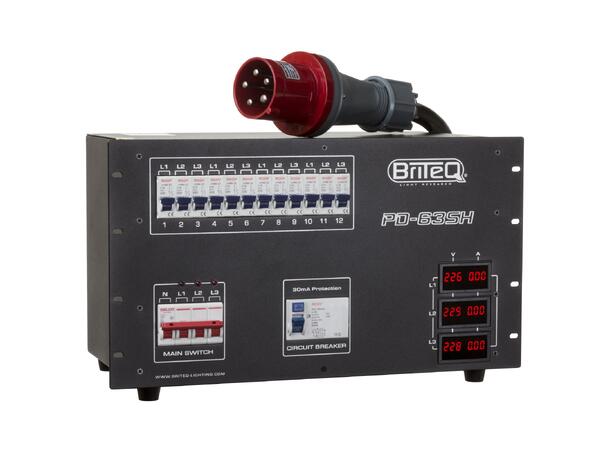

This 3-phase power distributor is designed to improve safety in both mobile, rental and fixed installations.
Choice of different outputs for maximum flexibility (rental companies!):

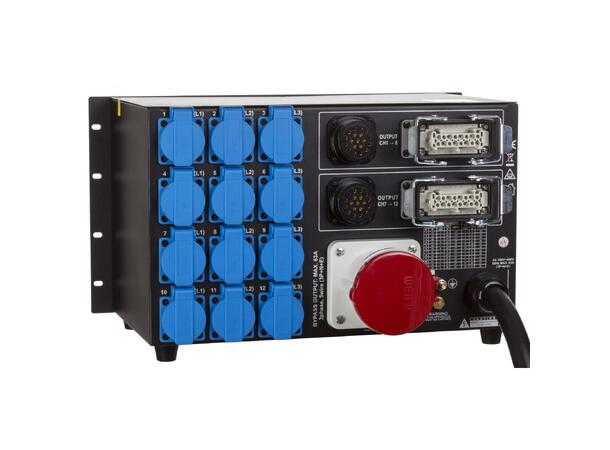

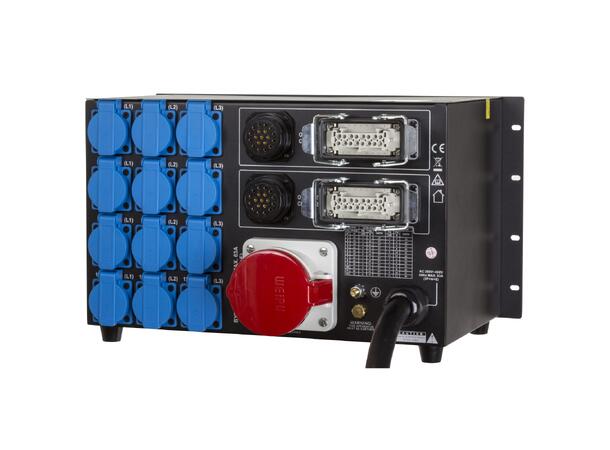

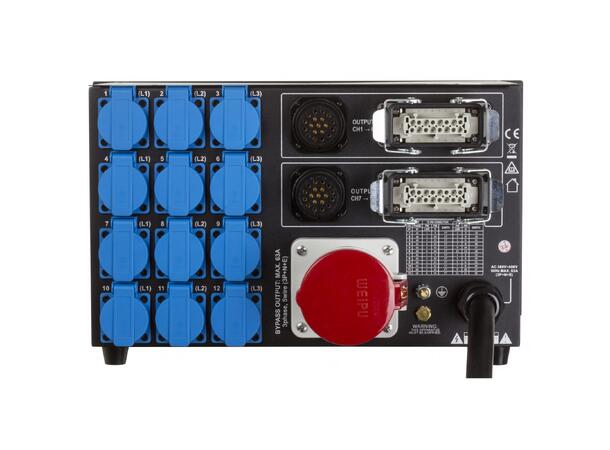

12x earthed 16A mains outlet sockets: (4 sockets per phase, 2 different models available

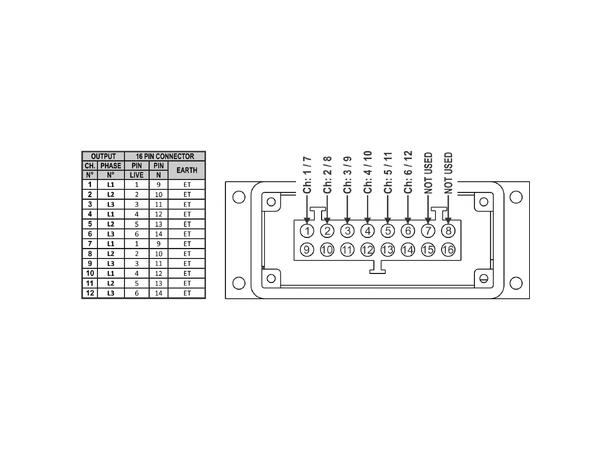

2x 16PIN industrial rectangular connector: output for use with standard wiring for rental multi-cables

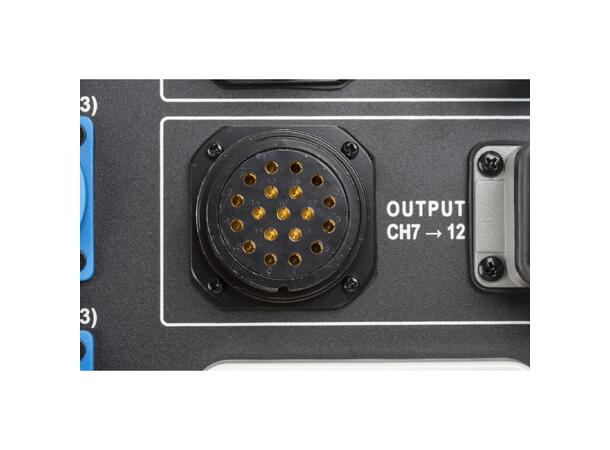

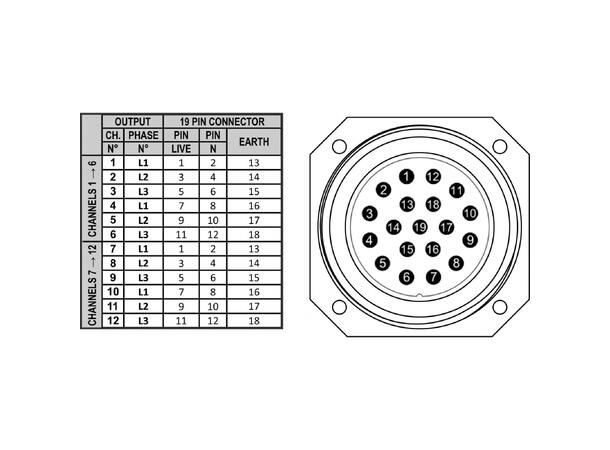

2x 19PIN industrial round connector: output for use with standard wiring for rental multi-cables
Designed and build to the highest European and international safety standards.
Oversized internal wiring for increased reliability!

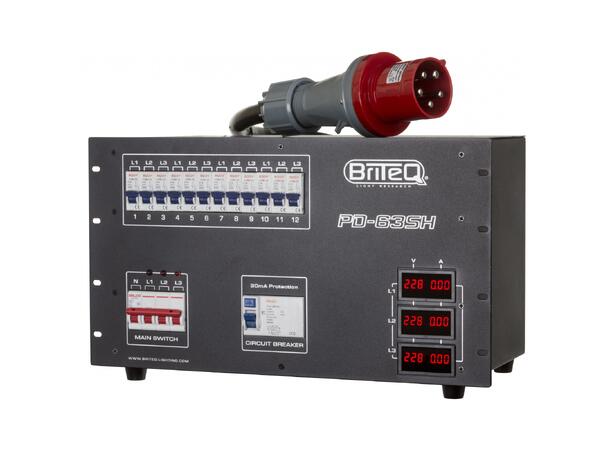

63A 4pole circuit breaker protects ALL outputs, including the 63A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected!
The 30mA, 4pole residual current circuit breaker prevents electrical shocks

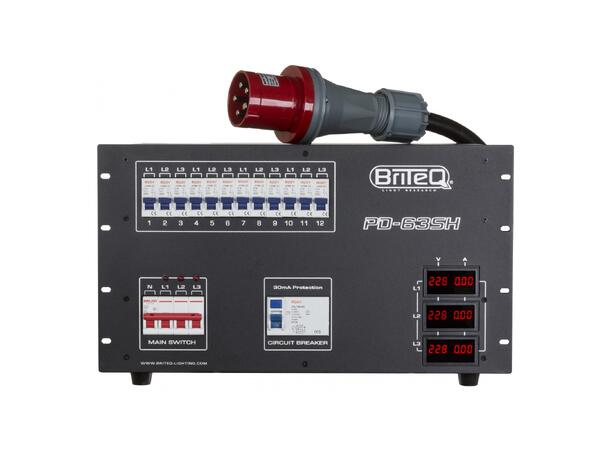

Phase indicators to easily check if the 3phases are available.
Accurate digital 3-digit voltmeters per phase
Accurate digital 3-digit ampere meters per phase
C16 (16A - 1P+N) 2-POLE automatic circuit breakers per 16A output (socket)
1,5m long mains input cable (3x 63A, 5wire), equipped with CEE (3P+N+E) 63A inlet plug

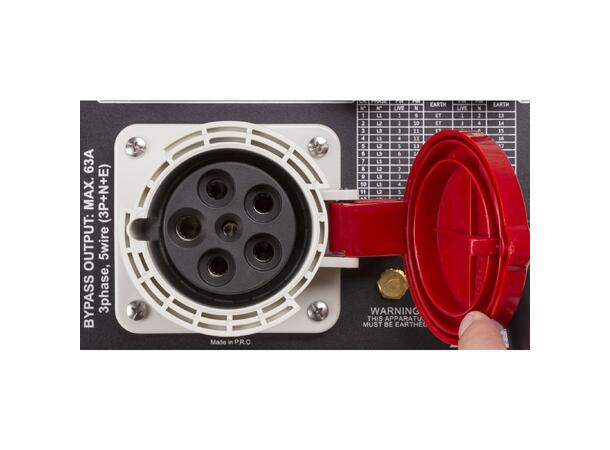

CEE (3P+N+E) outlet socket (3x 63A, 5wire) for bypass
2 different models available:
PD-63SH/FRA-BEL: French/Belgian 16A blue mains sockets

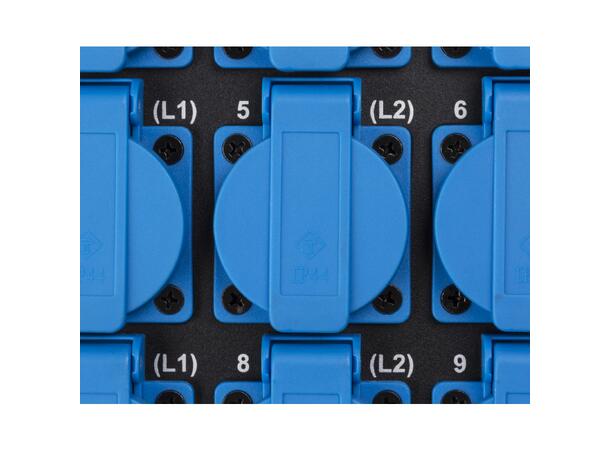

PD-63SH/GERMAN: German 16A blue schukos (CEE 7/4)

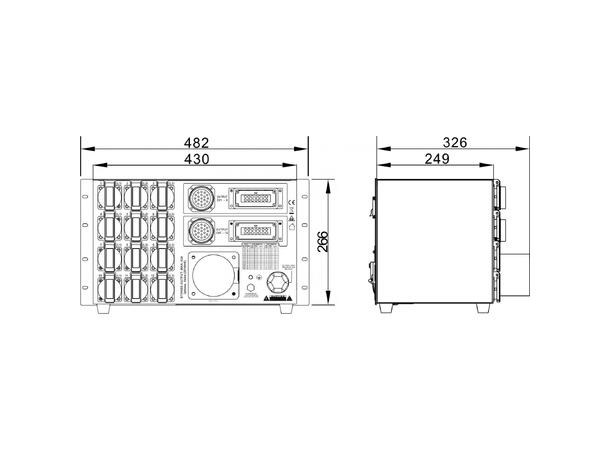

Extremely robust 19”/6U metal housing
