CARDINAL DVM DVM-HDBT-MAT44

Whether in the catering business, retail trade or in the field of digital signage – with the Matrix systems of the CARDINAL DVM series the free distribution of all input signals to any outputs is done as easily as never before. In a sports bar, for example, you can switch between the live TV signal on input 1 and the video server for promotion on other inputs. And this individually for each display!

The employed HDBaseT technology easily allows HDMI ® transmission distances of up to 70 metres / 230 feet between Matrix and display. And owing to PoH (Power over HDBaseT) remote receivers will also be powered in one go.This saves extra power supplies. For us the support of all HDMI ® functions, resolutions and formats up to 4Kx2K, 3D, 48-bit Deep Colour and HDCP is a self-evident feature. Likewise the audio section has all common formats such as Dolby True HD or DTS-HD as well.

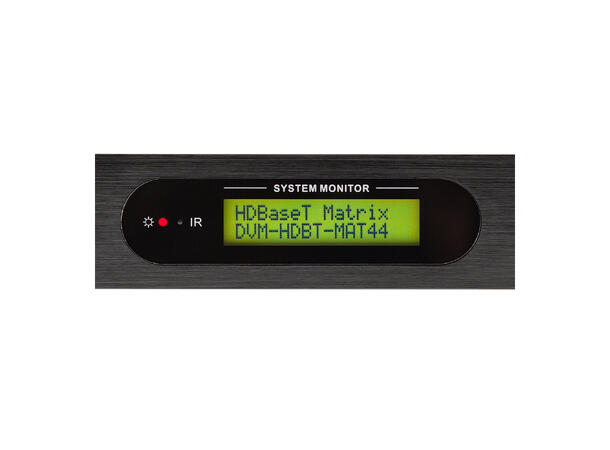

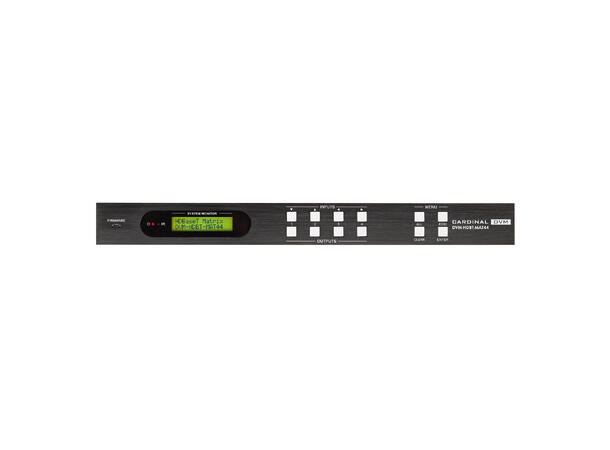

Speaking of management: the control functions are executed directly via push-buttons and display on the device or by means of the infrared remote control. Alternatively you can use the supplied PC software or existing media controllers via RS232 or ethernet (TCP/IP). Moreover, the integrated EDID management ensures a fast and stressless setup.

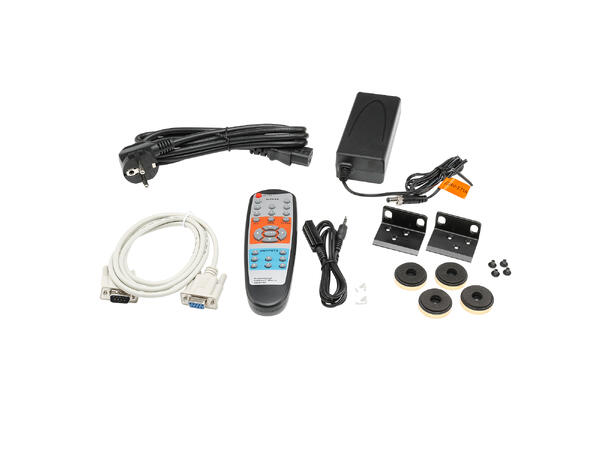

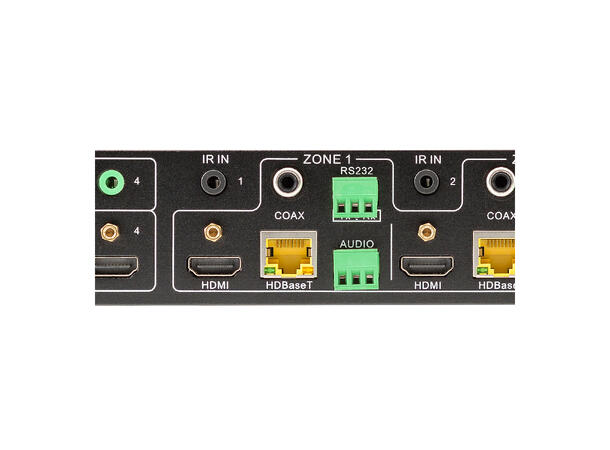

Features DVM-HDBT-MAT44:• Inputs & outputs:4 x HDMI ® Inputs 2 x HDMI ® Outputs 4 x HDBaseT outputs (parallel to HDMI ® ) 5 x IR control inputs (4 x for HDBaseT with PoH 70 m (230 ft.), 1 x general) 4 x IR control output (from HDBaseT) 4 x RS232 interfaces for HDBaseT• HDBaseT lite (max. 70 m (230 ft.): 1080p; 40 m (131 ft.): 4Kx2K)• IR matrix function• Ethernet connection 10/100 BaseT• RS232 connection (SUB-D09)• Fast switching time• Two external 12 V / 5 A power supplies included (1 x device power, 1 x PoH)• 19“ rack enclosure with 1 RU and 245 mm (9.6 in.) depth, 2.7 kg (5.96 lbs.)• Suitable HDBT receiver DVM-HDBT-EX07-R• Supports HDCP 2.2
