CARDINAL DVM DVM-HDBT-MAT88

Whether in the catering business, retail trade or in the field of digital signage – with the Matrix systems of the CARDINAL DVM series the free distribution of all input signals to any outputs is done as easily as never before. In a sports bar, for example, you can switch between the live TV signal on input 1 and the video server for promotion on other inputs. And this individually for each display!

The employed HDBaseT technology easily allows HDMI ® transmission distances of up to 70 metres / 230 feet between Matrix and display. And owing to PoH (Power over HDBaseT) remote receivers will also be powered in one go.This saves extra power supplies. For us the support of all HDMI ® functions, resolutions and formats up to 4Kx2K, 3D, 48-bit Deep Colour and HDCP is a self-evident feature. Likewise the audio section has all common formats such as Dolby True HD or DTS-HD as well.

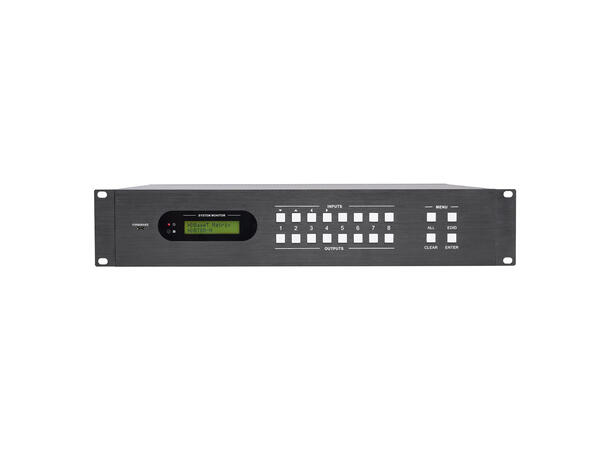

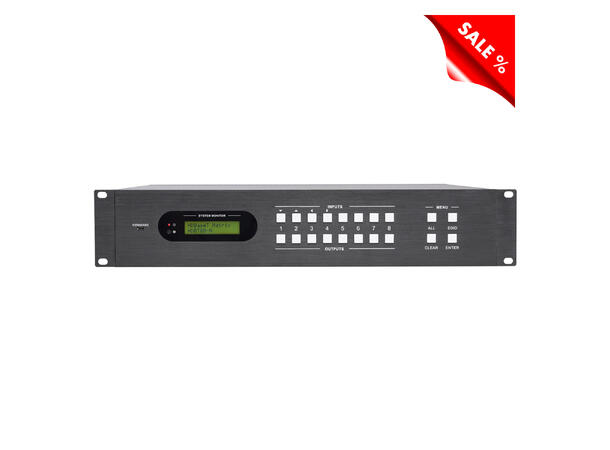

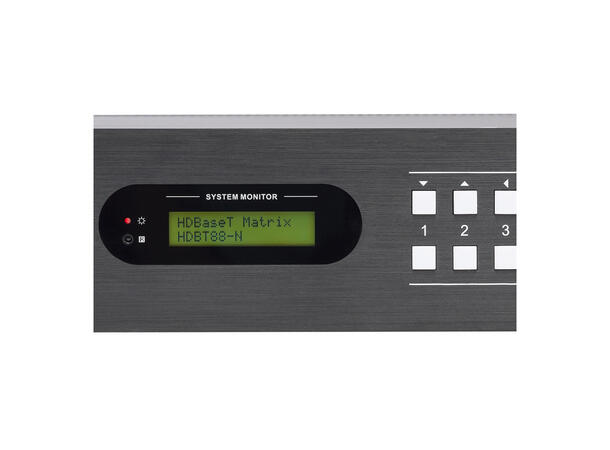

Speaking of management: the control functions are executed directly via push-buttons and display on the device or by means of the infrared remote control. Alternatively you can use the supplied PC software or existing media controllers via RS232 or ethernet (TCP/IP). Moreover, the integrated EDID management ensures a fast and stressless setup.

DVM-HDBT-MAT88 features:

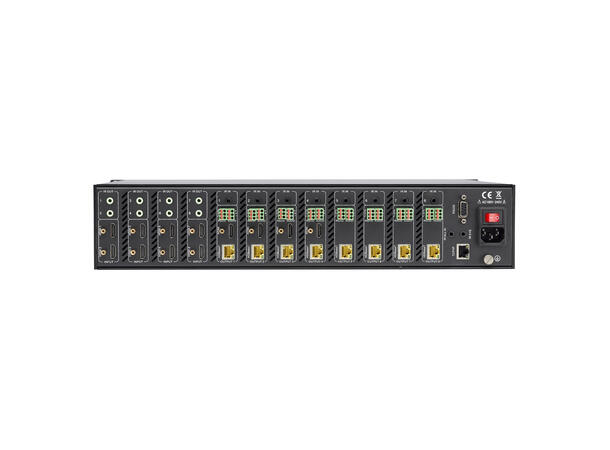

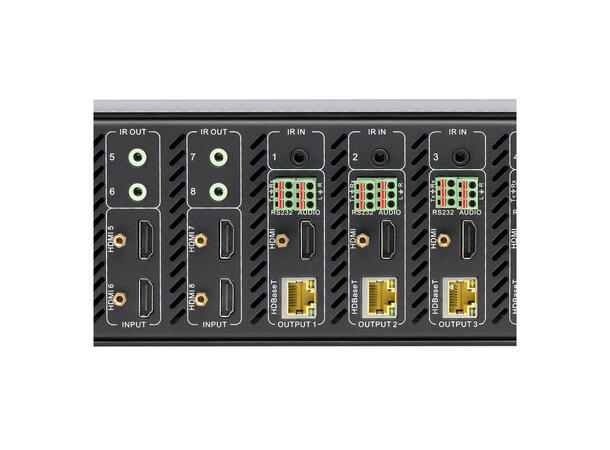

• Ins & Outs:
8 x HDMI ® inputs
8 x HDBaseT outputs
9 x IR control input (8 x for HDBaseT, 1 x general)
8 x IR control output (from HDBaseT)
• HDBaseT (max. 70 m / 230 ft., 1080p)
• IR matrix function
• 10/100 BaseT Ethernet connection
• RS232 connection (DSUB9)
• fast switching times
• 2 external 12 V / 6.25 A power supplies included (1 x unit power, 1 x PoH)
• 19“ / 1 HU housing, 300 mm / 11.81” deep, 3.5 kg / 7.7 lbs
