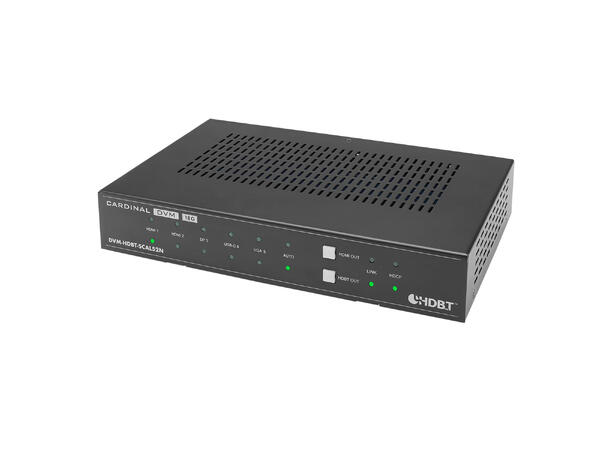

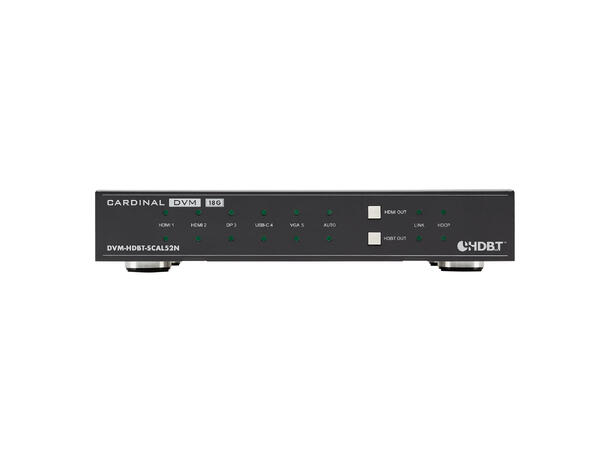

In modern conference and seminar rooms we will often find various input devices like notebooks, tablets or BluRay players. When it’s about the precise adaptation of the different input signals to the resolution and aspect ratio of a beamer or a display, the DVM-HDBT-SCAL52N is exactly the right decision. Besides short and failure-free switching times, it also convinces with its great connectivity, providing up-to-date formats such as USB-C, Displayport and HDMI®. These and the analog inputs (VGA, CV, YPrPb) can all be conveniently routed to an HDMI® and an autonomous HDBaseT output. Of course, the DVM-HDBT-SCAL52N can handle the HDMI® 2.0 standard with UHD resolution at full color depth. By the way: the DVM-HDBT-SCAL52N may be controlled locally both via RS232 & Ethernet as well as through rear switching contacts. The built-in audio mixer can be fed independently of the video signal by all inputs plus an auxiliary microphone input.
Features of DVM-HDBT-SCAL52N:

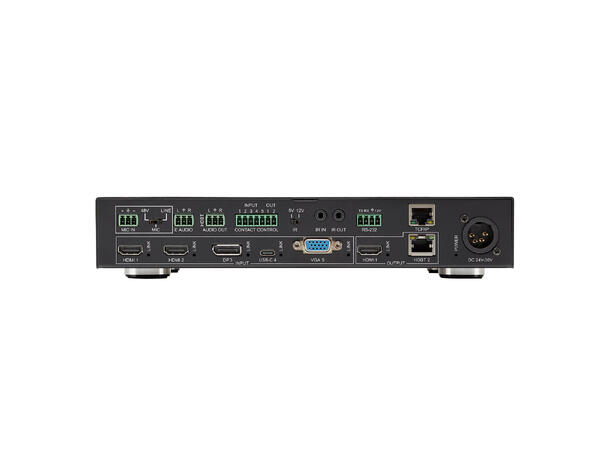

• 5 video inputs:
2 x HDMI® 2.0 (18G)
1 x DP1.2
1 x USB-C (DP alternate mode w/o PD)
1 x VGA
• 2 analog stereo audio inputs
• Microphone input (w. switchable 48V phantom power)
• 2 independent video outputs:
1 x HDMI® 2.0 (18G)
1 x HDBaseT (18G owing to loss-free CSC compression)
• Supports 4K with 60 fps
• Supports HDCP V2.2
• Comprehensive onboard EDID management
• PoH on HDBaseT output
• Rear switching contacts for external buttons
• RS232 with variable baud rate
• Ethernet 10/100 BaseT
• Integrated web server for efficient management
• Power supply via optional DVM-194-PS1, -PS2 or -PS3
• 9.5“ housing w. 1 RU and 230 mm depth, 1,400 g
