CARDINAL DVM DVM-120-SPR Remote monitorkontroller

CARDINAL DVM DVM-120-SPR

Remote monitorkontroller

Varenr: 140506
Alt. varenr: DVM-120-SPR
17 129,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

SERIE DVM120

With the introduction of the CARDINAL 120 range, SOMMER CABLE is embarking on a new direction in the field of active components and audio tools. We had tried and proven designs which have reworked into a new range with a new housing concept. We believe this range meets the highest electronic, mechanical and audiophile requirements.

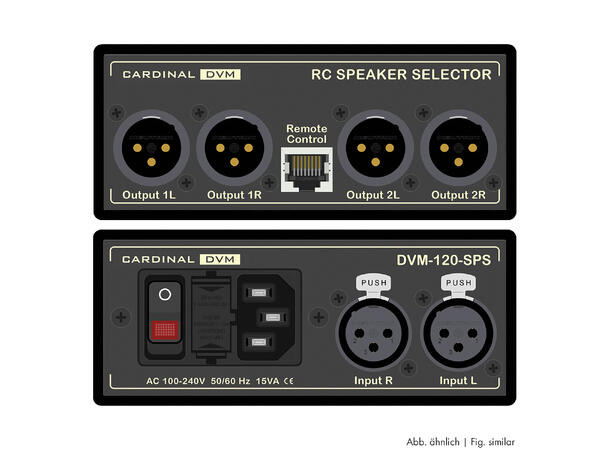

DVM-120-SPR Remote Monitor Controller

These dual-channel monitoring controllers are used to connect two pairs of active loudspeakers to one monitoring output – a typical situation in the studio or when doing a live recording.
For the signal switching and the level control in the balanced signal path we use premium-grade signal relays via a sophisticated logic circuit. Both units are operated through an external remote control with high-quality keys which is connected by means of a standard CAT.5 network cable.
While the DVM-120-SPS only acts as a pure selector switch between the two outputs, the DVM-120-SPR also allows an output level control accurate to one dB (control range 0 dB to –76 dB) and to store a reference level, which can always be recalled using the remote. The level will be precisely indicated by a display on the remote.

The following functions can be operated via the remote control:
1. MUTE on/off: After turn-on Mute is automatically active
2. A/B: Switches between speaker pairs A and B
3. MONO: Only left speaker is on: allows true mono listening
4. LEVEL: Recall of the saved reference level
5. ADJUST/SET: Level adjustment and saving the reference level to memor

The power lead and a CAT.5 patch cable for connecting the remote control are included in the delivery.


Advantages:

  • Uncompromising mechanical design – due to 18 mm recessed front panels, 3 mm thick aluminium profile & inset stacking feet
  • Integrated wide-range mains supplies (90 – 240 V) – direct connection via IEC switch/fuse combination
  • Developed for highest audiophile requirements
  • Exclusive use of high-quality components

Application:

  • Super high-grade audio tools and ideal helpers for live and studio applications


Specifications:

Article numberDVM-120-SPR
EAN4049371243643
BrandCARDINAL DVM
TypeRemote monitor controller
Weight kg1,2
ModelProfessional
Length m0,26
Width mm120
Height mm51
Depth mm260
Power supplyAC 100 – 240 V 15 VA IEC (with illuminated switch and fuse insert)
