CARDINAL DVM DVM-HDBT-EX07-S

HDbaseT kit. Opp til 70 meter. RS-232,IR

Varenr: 144745
Alt. varenr: DVM-HDBT-EX07-S
8 252,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

HDBaseT Extender Set HDMI + IR + RS232 up to 70m

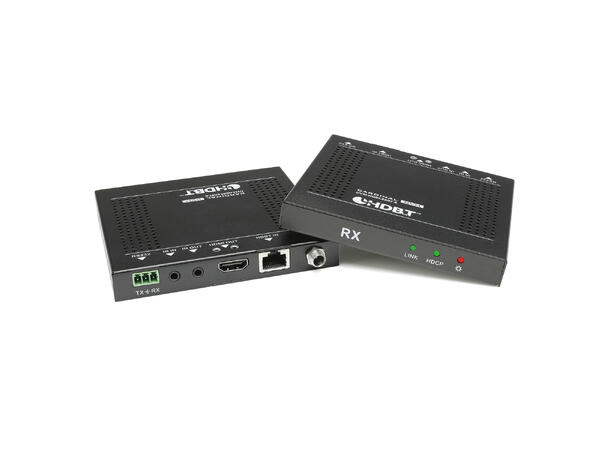

-HDBaseT-Transmitter
-HDBaseT-Receiver

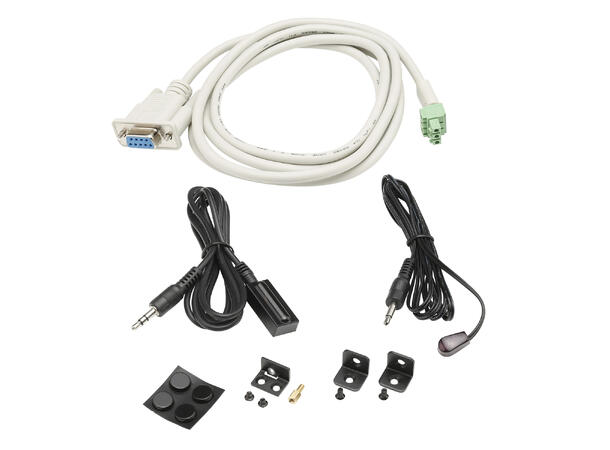

-1x Power Supply 24V
-1x IR-Transmitter
-1x IR-Receiver
-2x RS232 cable adapters
* supports HDMI 2.0b, 18G
* transmits FullHD signals up to 70m/230ft
* transmits UHD signals up to 40m/130ft
* transmits RS232 & IR bidirectional
* supports HDCP (up to V2.2)
* supports official PoH standard - the PSU must be connected to the transmitter!
* supports 3D, 4K@60fps 4:4:4
* recommended cable: CAT.7 AWG23
* ultra compact design



Specifications:

Article numberDVM-HDBT-EX07-S
EAN4049371367813
BrandCARDINAL DVM
TypeHD-BaseT-Extender-Set HDMI+IR+RS232
FunctionHD-BaseT-Extender-Set
Weight kg1.034
Supported formatstransmits Full HD signals up to 70m
Supported formatssupports HDCP (up to V2.2)
Supported formatstransmits UHD signals up to 40m
Supported formatstransmits RS232 & IR bidirectionally
Supported formatssupports HDMI 2.0b, 18G
Supported formatssupports official PoH standard - the PSU must be connected to the transmitter!
Width mm134
Height mm18
Depth mm110
MatchcodeDVM-HDBT-EX2
