Key Features
Design
Simple user interface
Easy navigation
Large touch screen with easy to understand and intuitive graphical interface
User prompts through setup, programming and operation
Console Output Capacity
No limit on number of fixtures, only by number of universes supported
User Interface
Modeled on smart phone icon interface and gesture support
Intuitive interface allowing simple control of all fixture attributes
Supports pinching for zooming and scrolling
The remote app is identical to that on the console display so that you can easily swap between the two
Playback Faders
Dedicated Grand Master fader
Dedicated Cue Stack Control section
One Cue Stack and two Chase faders
Playbacks compatible with and aid progression towards MagicQ
Fixture Faders
Fader for Intensity Control
Flash button
Fixture, Group and Cue modes
RGB LED shows current mode/state
20 fixture faders
Networking
QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
Colour Control

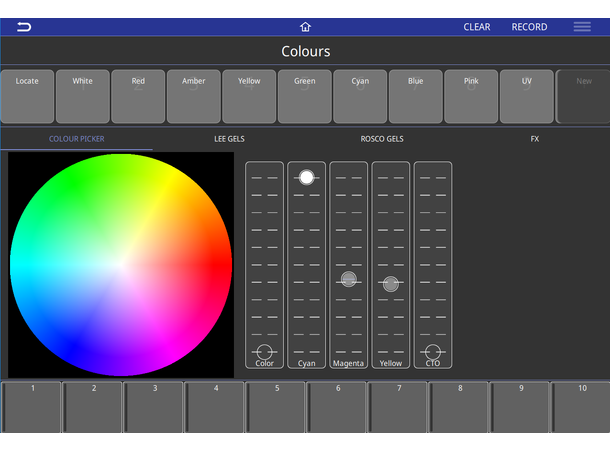

A dedicated “colour control area” with Hue and Saturation encoders, and a pair of additional buttons for colour control
Select from in-built palettes and gel libraries using the touch screen

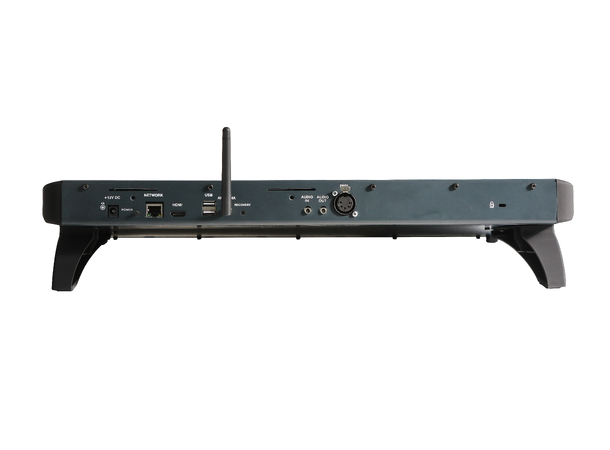

Ports
2 USB ports for loading and saving shows, and for optional keyboard and mouse audio input and output
In-built WIFI port for simple connection of tablets and smart phones
Offline Software
Offline editor available for both Windows and Mac
Easy upgrades
Includes MagicVis visualiser
Replicates entire QuickQ console software excluding output
Touch Screen 9.7"
Universes Supported 1
DMX Outputs 5-Pin XLR 1
Fixtures Supported 512
Fixture Faders 20
Bump Buttons Y
Dedicated Hue/Saturation Encoders Y
Attribute Encoders 0
Master Faders 2 Chase, 1 Cue Stack
Cue Stacks 1
Dedicated Home Button Y
USB 2
Network Y
External Monitor 1920 x 1080 HDMI
Audio In/Out Y
sACN Y
ArtNet Y
Pathport Y
OSC N
MIDI N
MIDI Timecode N
Supports Moving Lights LEDs & Dimmers
Size (WDH mm) 525 x 350 x 106
Weight 4.7 kg
Software Features
RDM Autopatch
HSV Colour Mixing
Colour Picker
Built-in FX
Chase and Cue Support
Execute Window
Audio Triggering
Tap to Time
Software Upgrade/Downgrade
Easy Fixture Personality Update
