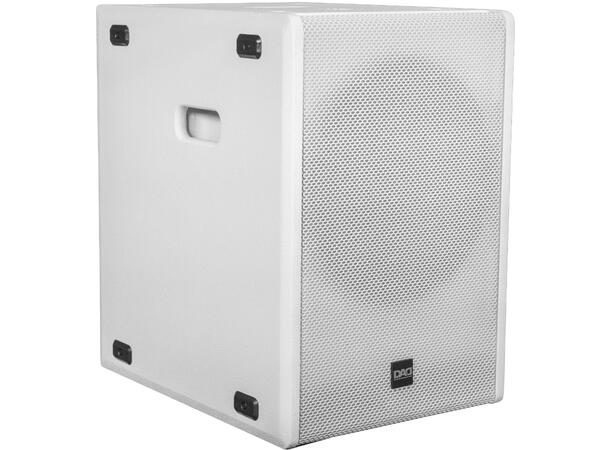

Bass-reflex active subwoofer, 2x700 W D-class amplifier, 124dB SPL
Features:
Low frequency: 12'' woofer/3'' v.c.
Frequency response: 40-200 Hz (±3dB)
Built-in DSP: fully adjustable.
ARK112SA amplified subwoofer speaker can drive up to 2 column speakers of the ARK column series plus an additional ARK112SP passive subwoofer.
Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKER
System type: active subwoofer
COMPONENTS
Low frequency: 12'' woofer/3''v.c.
FEATURES
Built-in amp LF/MF-HF: 700+700W /4Ohm
Built-in DSP: DSP fully adjustable
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 118/124dB @1m (free field)
Frequency response: 40-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 120/200Hz
ELECTRONICS
Amplifier: digital
Power: 700 +700W /4Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.

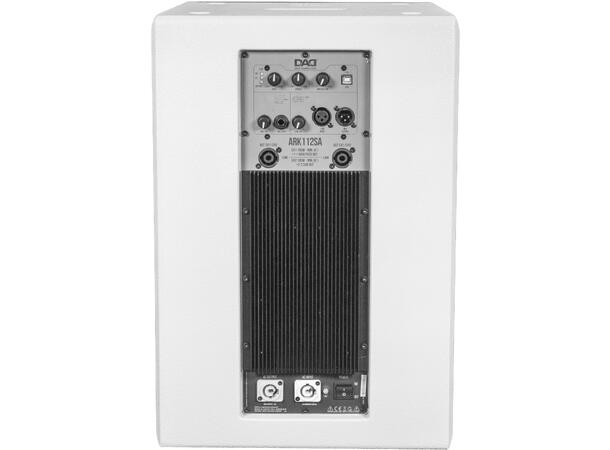

User controls: mic, line, master, eq LF-HF
Built-in DSP: 28/56bit
Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Output signal: jack 6.35 mm, 4 pole IN/OUT
Data: USB port
Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
Cabinet material: 15mm plywood
Sospension system: support with signal connection
Handles: 2 on side, 1 top
PHYSICAL
Dimensions (WxHxD): 362x520x470mm
Weight: 24.1kg
