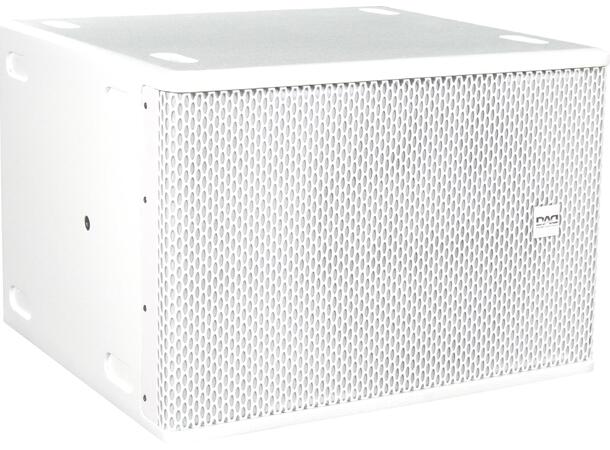

Bass-reflex active subwoofer, 2x700 W D-class amplifier, 122dB SPL
Features:
Low frequency: 12'' woofer/2'' v.c.
Frequency response: 40-200 Hz (±3dB)
Built-in DSP: fully adjustable
Remote control with RJ45 port via ARK485UR accessory
ARK12SA amplified subwoofer speaker can drive up to 4 full range speakers of the ARK series plus an additional ARK12SP passive subwoofer.

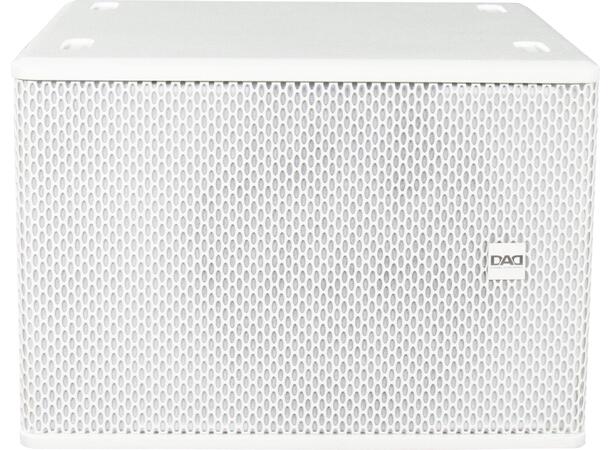

The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
LOUDSPEAKER
System type: active subwoofer
FEATURES
Built-in amp LF/MF-HF: 700+700W /4Ohm
Built-in DSP: DSP fully adjustable
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 116/122dB @1m (free field)
Frequency response: 40-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 120/160Hz
ELECTRONICS
Amplifier: digital
Power: 700 +700W /4Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.
User controls: mic, line, master, eq LF-HF
Built-in DSP: 28/56bit

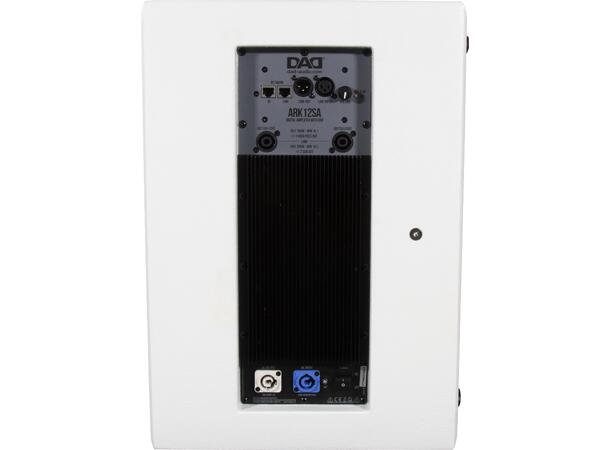

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Output signal: 2 x 4 pole
Data: USB port
Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
Cabinet material: 15mm plywood
Sospension system: wall brackets (not included)
PHYSICAL
Dimensions (WxHxD): 362x520x470mm
Weight: 23.8kg
