Bass reflex passive subwoofer, 400 W AES, 123dB SPL
Features:
Low frequency: 12'' woofer/3'' v.c.
Frequency response:40-200 Hz (±3dB)

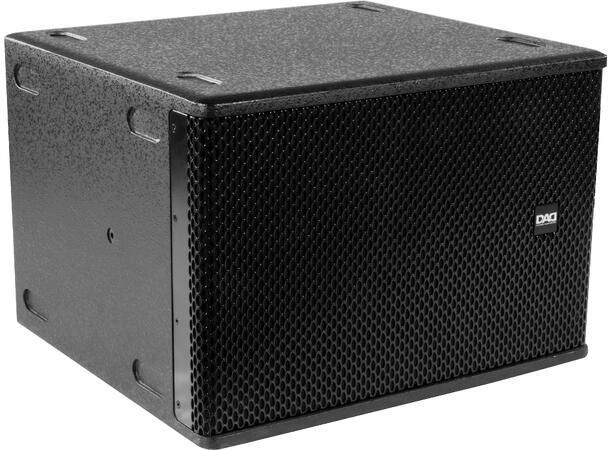

ARK12SP subwoofer speaker is the ideal complement to the full range speakers for reinforcing low notes.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation. Can be combined with IDEA amplifiers with dedicated presets.
Birch plywood enclosure.
LOUDSPEAKER
System type: passive subwoofer
COMPONENTS
Low frequency: 12'' woofer/3''v.c.
FEATURES
AES/program power: 400/800W
SPL max: 123dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 94dB
Impedance: 8
SPL cont/peak: 117/123dB @1m (free field)
Frequency response: 40-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 100/160Hz
Recommended amplifier up to: 800W
INPUT/OUTPUT CONNECTORS
Input signal: Phoenix - NL4 IN/OUT
CABINET CONSTRUCTION
Cabinet material: 15mm plywood
Sospension system: wall brackets (not included)
PHYSICAL
Dimensions (WxHxD): 362x520x470mm
Weight: 22.1kg
