DAD ARK426A Aktiv søylehøyttaler 4x6"+1"

Active column loudspeaker, D-class bi-amp, 2-way 700 W+350 W, 129dB SPL

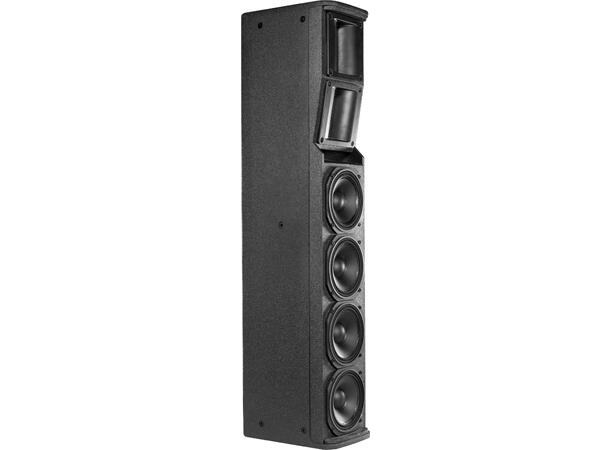

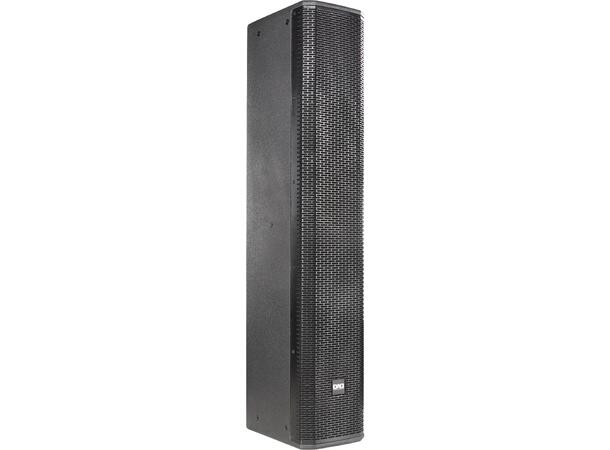

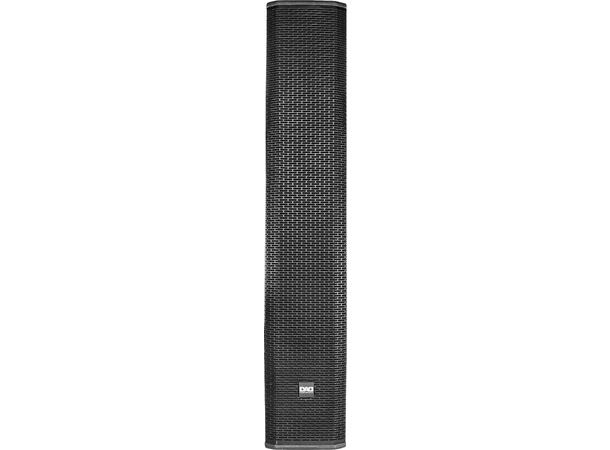

 The ARK426A speaker represents the top of the range in the segment of compact vertical arrays. ARK426A is a 2-way amplified long-range system for fixed and mobile installations. It consists of two 1" compression drivers (1.75" v.c.), mounted on a waveguide. The overall nominal coverage (H x V) is 110 ° x 25 ° (-17.5 ° / + 7.5 °). The MF / LF frequency range is covered by 4 6" speakers. The ARK426A is an extremely flexible speaker, it can be used in full range or as an MF / HF section (up to two overlapping units) in high sound pressure systems in combination with the BX series subwofers The cabinet is made of 12 mm birch plywood with a black polyurea finish.

Features:
Low frequency: 4x6'' Nd woofer/1.5'' v.c.
High frequency: 2x1'' Nd driver / 1.7'' v.c.
Frequency response: 80-18000 Hz (±3dB)
Cover angle HxV: 110x25° (-17.5°/+7.5°)
Combined with the BX series subwoofers
Configurable in two superimposed units
Optional transport and fixing accessories

• System type: 2-way active column module

• Low frequency: 4x6'' neodymium woofer / 1.5'' v.c.
• High frequency: 2x1'' neodymium driver / 1.7'' v.c.

• Input: Line - Mic
• Built-in amp LF/HF: 700/350W
• SPL max: 131dB @1m (free field)

• SPL cont/peak: 125/131dB @1m (free field)
• Frequency response: 80-18000Hz (±3dB)
• Coverage angle HxV: 110 ° x 25°  (-17.5°/+7.5°)°
• Cross over frequency: 1500Hz
• Suggest LPF range: 120/150Hz

• Amplifier: digital
• Input sensitivity: 4 dBu (1,228Vrms) adjustable
• Protection: RMS limiter, fast limiter, temp.
• User controls: mic, line, bass boost
• Processor: DSP
• Operating voltage/frequency: 220 V~240 V/50 Hz

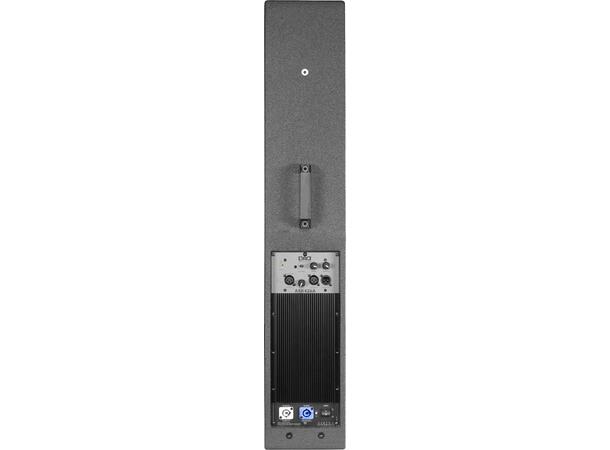

• Input signal: XLR IN/OUT
• Power connection: powerCON IN/OUT

• Cabinet material: 12mm birchplywood

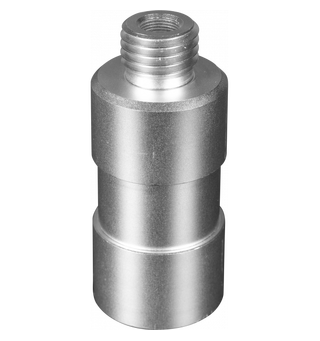

• Sospension system: Under: 35 mm mounting pole - Up: M20 screw
• Handles: 1 rear

• Dimensions (WxHxD): 180x993x260mm
• Weight: 19kg
