Active subwoofer, D-class amplifier, 1000 W, 133db SPL

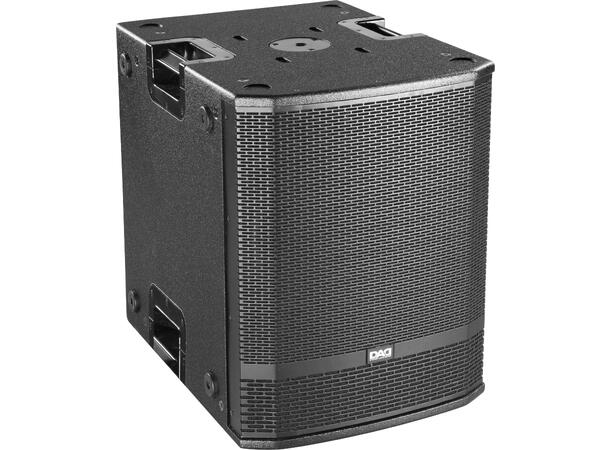

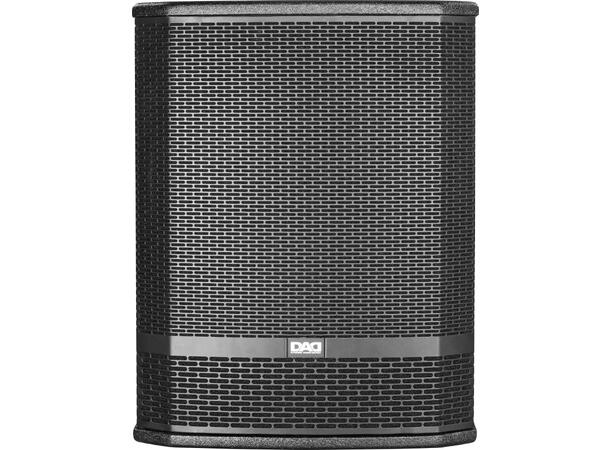

The BX15SA is an 15" powered subwoofer that provides a powerful low frequency response. The geometry of the reflex duct is low compression thanks to the aerodynamic development. This design guarantees precise and well controlled bass response even at high volume.
STATE-OF-THE-ART B&C WOOFER
The BX15SA is equipped with an 15” neodymium woofer produced by B&C Speakers with very low distortion and extremely long excursion. The neodymium motor provides an extremely high magnetic flux for greater efficiency. The 4" coil is 25 mm high, ensuring an ultra linear excursion of 18 mm/pp with constant magnetic force. The fiberglass cone and the ventilated magnet reduce distortion and power compression. This design improves overall quality sound and performance characteristics.
CLASS D AMPLIFIER

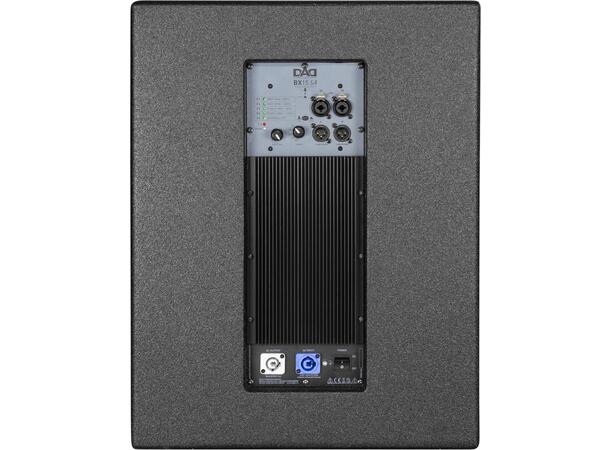

1000W RMS digital amplifier managed by digital stereo crossover (DSP) with 4 different presets and high pass output for connecting the satellites. The amplifier is fanless since it is equipped with an effective and robust aluminum heat sink that also guarantees its mechanical stability during transport.
CABINET
DAD cabinets are made of birch plywood covered with a black polyurea finish. The subwoofers are stackable and light, for easy installation and easy disassembly, thanks to the ergonomic handles.
APPLICATIONS

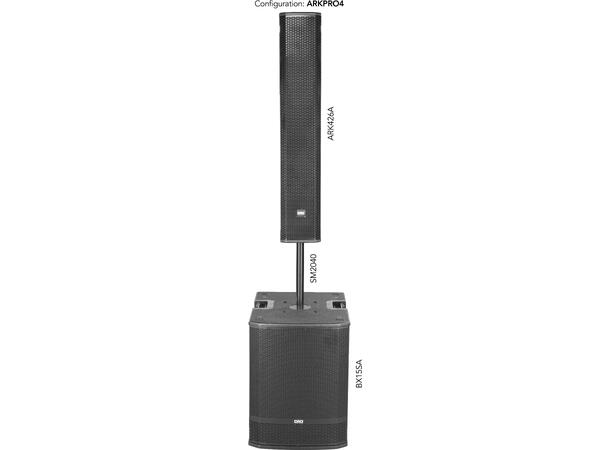

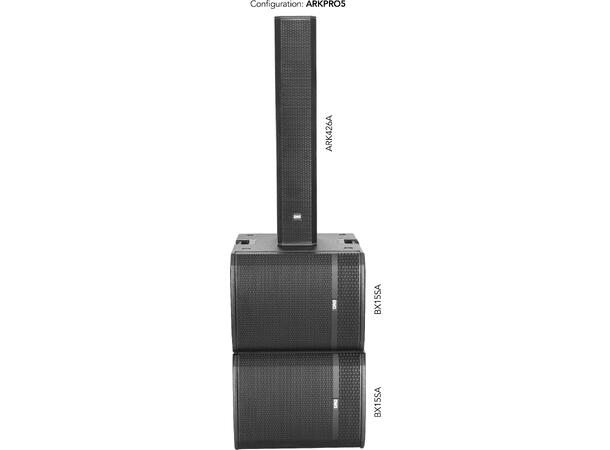

The BX15SA is perfectly suitable as a sub-extension of the low range for the ARK426A, ARK216A full range column speakers, or for amplified 8" / 10 "/ 12" speakers of the DAD, and can be used in houses of worship, theaters, clubs and mobile applications.
Features:
1000 W RMS digital amplifier
15" B&C neodymium woofer with 4" voice coil
Bass reflex box with aerodynamic duct
Stereo crossover with switchable crossover frequencies
Polarity reversal switch
XLR COMBO stereo input, XLR COMBO stereo signal output
LOUDSPEAKER
System type: active subwoofer
COMPONENTS
Low frequency: 15'' neodymium woofer / 4'' v.c.
FEATURES
Built-in amp: 1000W
SPL max: 133dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 127/133dB @1m (free field)
Frequency response: 40-180Hz (±3dB)
Coverage angle HxV: ° omnidirectional
ELECTRONICS
Amplifier: digital
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: RMS limiter, fast limiter, temp.
User controls: bass-deep/punch, LPF-80/120Hz, link/crossover, reverse phase
Processor: DSP
Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT, jack 6.35 mm
Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
Cabinet material: 18mm birchplywood
Sospension system: M20 mounting pole
Handles: 4 on side
PHYSICAL
Dimensions (WxHxD): 440x577x609mm
Weight: 40kg
