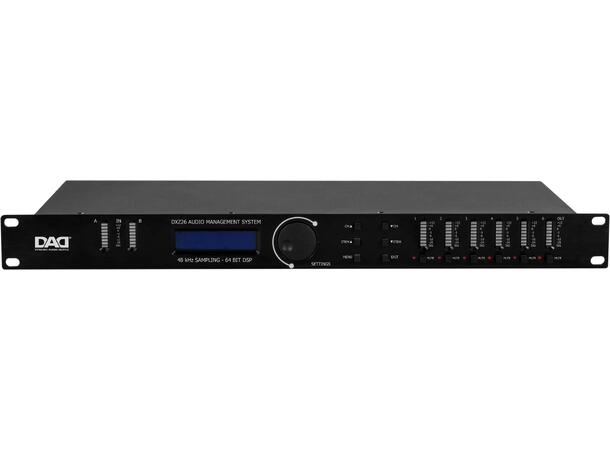

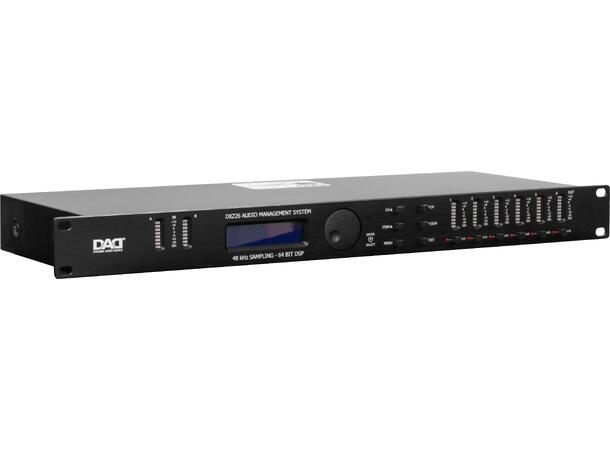

The DXZ series processors combine an intuitive user interface with professional audio processing standards. Their economic convenience makes them ideal for rental companies and for various installation applications. All DXZ products feature 48 kHz sampling rate, a dynamic range of 110 dB (A) at inputs, 114 dB (A) at outputs and a maximum input level of + 23 dBu. The DXZ26 audio management system features 2 inputs and 6 outputs, while the DXZ48 system has 4 inputs and 8 outputs, each with 10 Parametric EQ bands per output and a frequency range up to 40 kHz. Parameter management is It takes place through an intuitive user interface with real-time monitoring on PC through a built-in Ethernet connection (DXZ48 - DXZ88), (while through USB connection for the DZX26 model). The analog input allows voltages up to 10V RMS (+ 23dBu) and provides a value at the top of the category. The outputs are capable of delivering a signal up to + 12dBu (3.084V RMS), which is enough to drive even the most demanding power amplifier. The DXZ88 Matrix Zone model provides the same DXZ series DSP functionality in a 8-in-8 master mixer with full processing on each channel.
Features:
Audio Management System
2 input 6 output.
Full configuration and real-time monitoring via PC USB port
AUDIO PROCESSOR
Type: Audio management system
DSP FEATURES
Input: 2 way mono
Output: 3 way stereo, 6 way mono
Max input level: +23dBu
Frequency responce: 10Hz - 40Khz +/-3dB (filter disabled)
Distorsion: <0.01%, (+10dBu, 20Hz to 20kHz)
Dynamic range in/out: 110dB/114dB
Digital processing: 64 bit
Sampling rate: 48 kHz
A/D - D/A Converter: 24 bit
Gain OUT: +12dB to -48dB and mute, 0.25dB steps
Delay: output 2000ms
Crossover Filters: Bessel, Butterworth, Linkwitz-Riley, all pass
Crossover Filters Slope: 12,18 & 24dB/octave Bessel and Butterworth, 12 & 24dB/octave Linkwitz-Riley
EQ frequency: 10Hz to 25kHz, 1/36 octave steps
Equalizer: 10 parametric filters for output
EQ Gain: +12dB to -12dB, 0.25dB steps
EQ width: Q 25 to 0.2 - BW 4.75 to 0.06
Limiters: Adjustable threshold in 0,25dBu steps. Adjustable relase in 1 dB/s steps
Compressor: True RMS compressor. Adjustable threshold, attack time, release, hold
Latency: 640 microseconds
Memory/Presets: 50

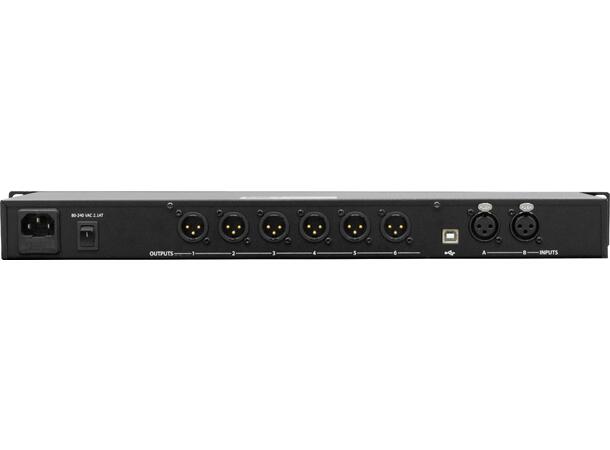

INPUT/OUTPUT CONNECTORS
Input signal: XLR in/out
Data: USB port
Power connection: VDE
POWER SUPPLY
Power voltage/frequency: 80 to 240V AC, 50/60Hz
PHYSICAL
Dimensions (WxHxD): 482x44x175mm
Rack unit: 1
Weight: 1.7kg
