Active loudspeakers, D+AB class bi-amp, 2-way 350 W+70 W, 124db SPL
Features:
Low frequency: 10'' woofer/2.6''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 65-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and sound pressure
LOUDSPEAKER
System type: active 2 way
COMPONENTS
Low frequency: 10'' woofer/2.6''v.c.
High frequency: 1'' driver/1.7''v.c.
FEATURES
Built-in amp LF/HF: 350+70W
SPL max: 124dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 118/124dB @1m (free field)
Frequency response: 65-18000Hz (±3dB)
Coverage angle HxV: 90x70°
Cross over frequency: 2000Hz
ELECTRONICS
Amplifier: digital + AB class
Power: 350+70W /4/8Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: fast limiter, temp
User controls: mic, line, master, eq LF-HF
Processor: analog
Operating voltage/frequency: 220 V~240 V/50 Hz

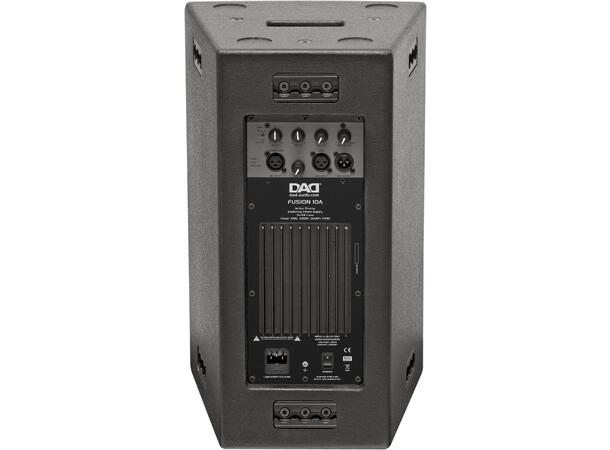

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Power connection: VDE
CABINET CONSTRUCTION
Cabinet material: 15mm birchplywood
Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
Angle: 10° trapezoidal taper
Handles: 2 on side
PHYSICAL
Dimensions (WxHxD): 304x495x300mm
Weight: 17kg
