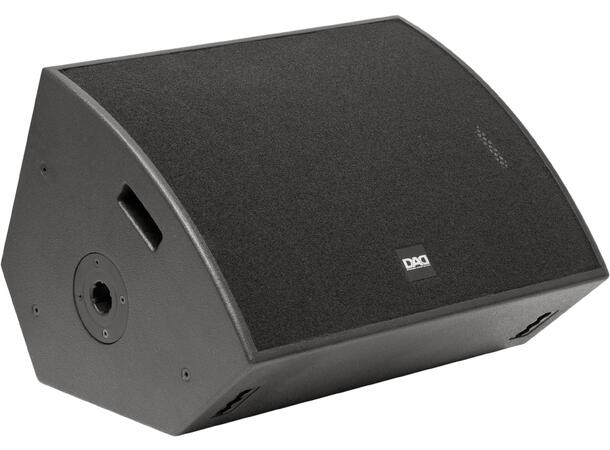

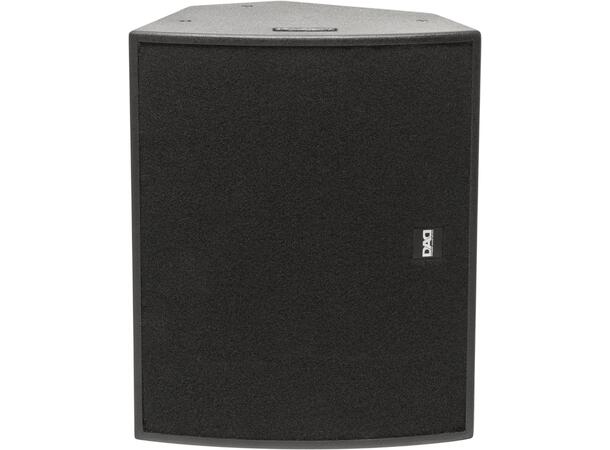

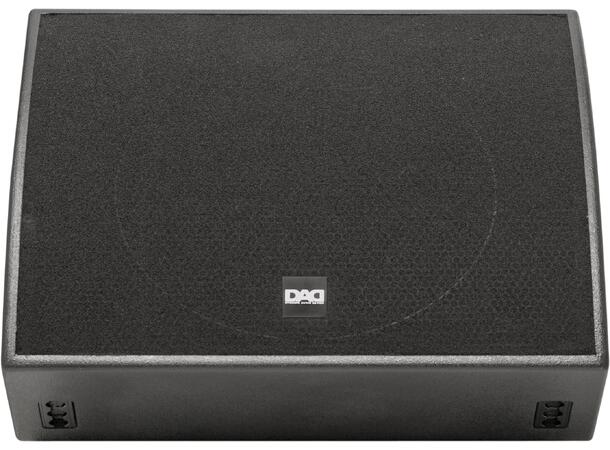

Active stage-monitor, coaxial design, D+AB class bi-amp. 2-way 350+70 W, 128db SPL

Features:
Low frequency: 15'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 50-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction in the monitoring of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and high sound pressure

LOUDSPEAKER
System type: active 2 way coaxial

COMPONENTS
Low frequency: 15'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.

FEATURES
Built-in amp LF/HF: 350+70W
SPL max: 128dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 122/128dB @1m (free field)
Frequency response: 50-18000Hz (±3dB)
Coverage angle HxV: 90x90°
Cross over frequency: 1700Hz

ELECTRONICS
Amplifier: digital + AB class
Power: 350+70W /4/8Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: fast limiter, temp
User controls: mic, line, master, eq LF-HF
Processor: analog
Operating voltage/frequency: 220 V~240 V/50 Hz

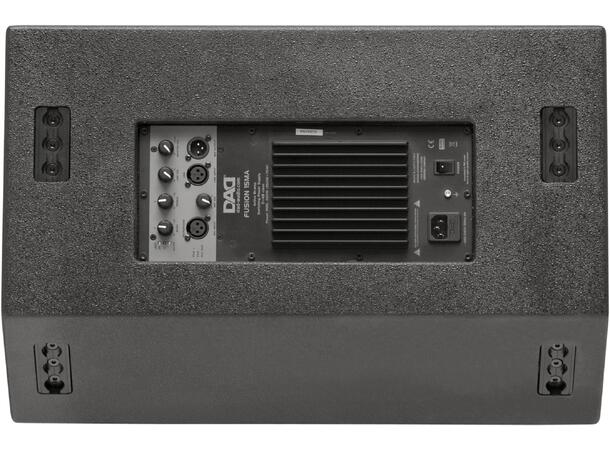

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Power connection: VDE

CABINET CONSTRUCTION
Cabinet material: 15mm birchplywood
Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount
Angle: 40° monitor applications
Handles: 2 on side

PHYSICAL
Dimensions (WxHxD): 605x420x500mm
Weight: 29kg
