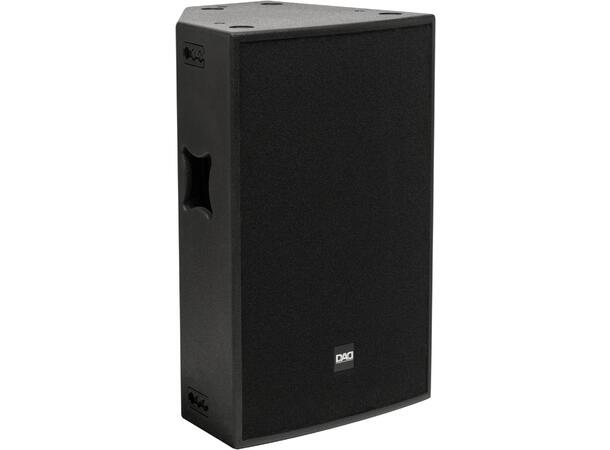

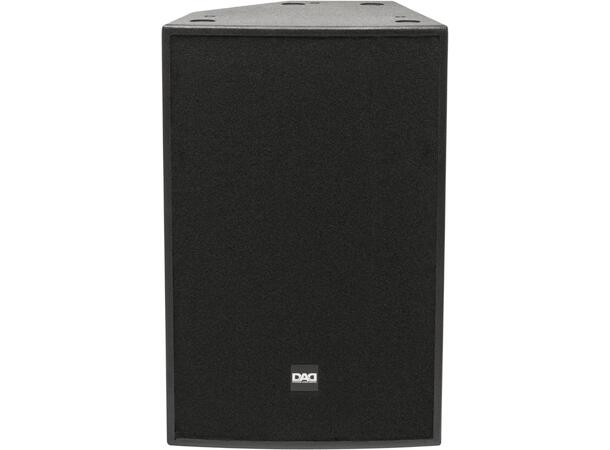

2-way passive loudspeakers, 350 W AES, 129db SPL
Features:
Low frequency: 15'' woofer/3''v.c.
High frequency: 1.4'' driver/3''v.c.
Frequency response: 50-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure, designed for stage-monitor application
For sound installations in environments requiring dynamics and sound pressure
LOUDSPEAKER
System type: passive 2 way
COMPONENTS
Low frequency: 15'' woofer/3''v.c.
High frequency: 1.4'' driver/3''v.c.
FEATURES
AES/program power: 350/700W
SPL max: 129dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 98dB @1W/1m (free field)
SPL cont/peak: 123/129dB @1m (free field)
Frequency response: 50-18000Hz (±3dB)
Coverage angle HxV: 90x70°
Cross over frequency: 1500Hz
Protection: H.F. signal compression
Recommended amplifier up to: 700W /8Ohm

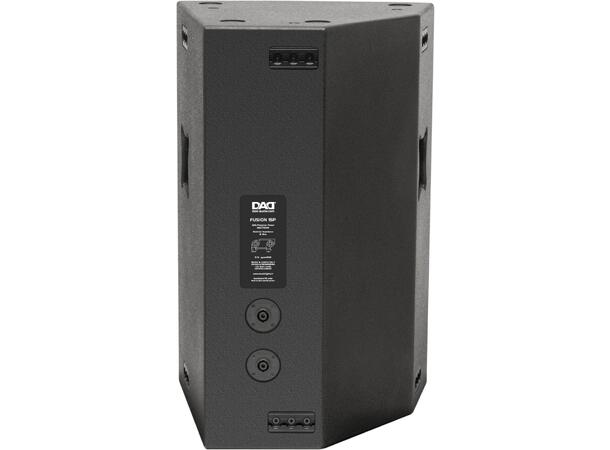

INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
Cabinet material: 15mm birchplywood
Sospension system: 6 point M8 eyebolt, fly track, 35 mm pole mount

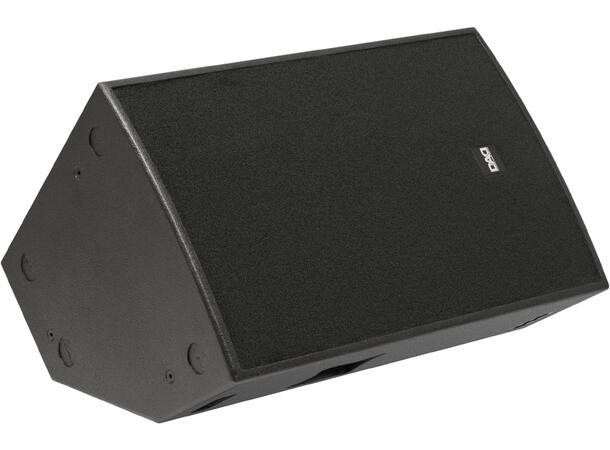

Angle: 10 - 40° monitor applications
Handles: 2 on side
PHYSICAL
Dimensions (WxHxD): 448x688x400mm
Weight: 30kg
