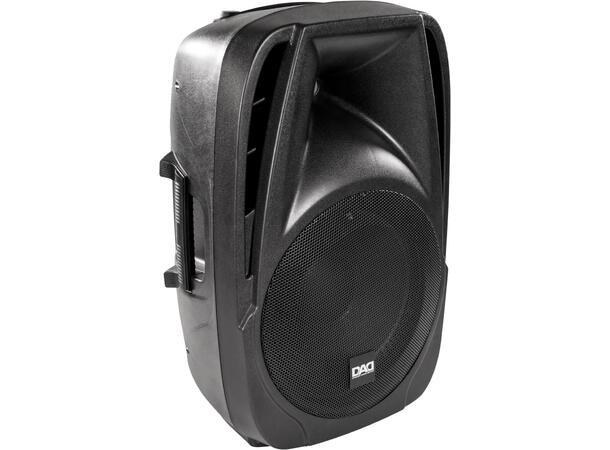

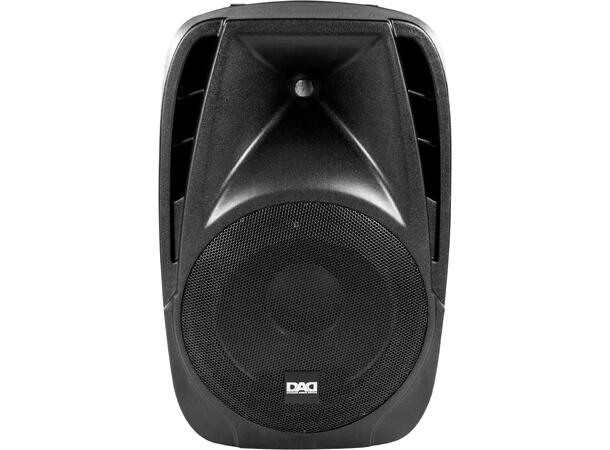

Active loudspeaker, bi-amp, 2-way 250+50 W, 126dB SPL
Features:
Low frequency: 12'' woofer/2''v.c.
High frequency: 1'' driver/1.4''v.c.
Frequency response: 60/20000 Hz (±3dB)
Media player: MP3-SD card with remote controller
Reproduction of voice and music for live and recorded performances
Cabinet designed for stage-monitor applications
Polypropylene box equipped with two side handles, one in the upper side and two wheels for the transport integrated
For portable PA systems, mobile DJ sets and voice/multimedia applications
LOUDSPEAKER
System type: active 2 way
COMPONENTS
Low frequency: 12'' woofer/2''v.c.
High frequency: 1'' driver/1.4''v.c.
FEATURES
Built-in amp LF/HF: 250+50W /4/8Ohm
Media player: MP3-SD card with remote controller
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 120/126dB @1m (free field)
Frequency response: 60/20000Hz (±3dB)
Coverage angle HxV: 90x45°
Cross over frequency: 2500Hz
ELECTRONICS
Amplifier: AB class
Power: 250+50W /4/8Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.
User controls: mic, line, master, eq LF-HF
Media player: MP3-SD card with remote controller
Operating voltage/frequency: 230 V - 50 Hz

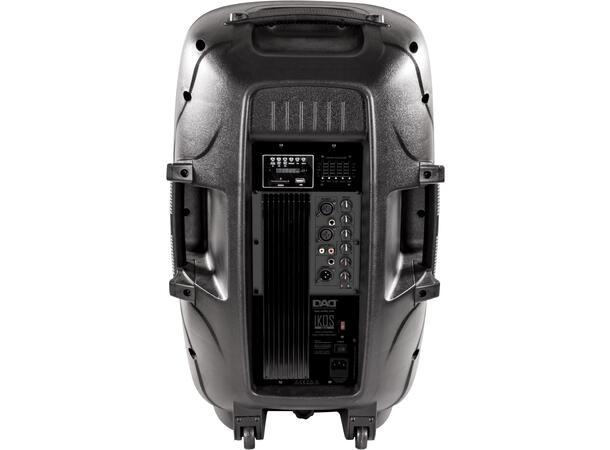

INPUT/OUTPUT CONNECTORS
Input signal: XLR/jack bal. pin RCA unbal
Data: USB port
Power connection: VDE
CABINET CONSTRUCTION
Cabinet material: 3mm polypropilene
Sospension system: 35 mm mounting pole
Angle: 45° monitor applications
Handles: 2 on side
PHYSICAL
Dimensions (WxHxD): 380x590x315mm
Weight: 12.2kg
