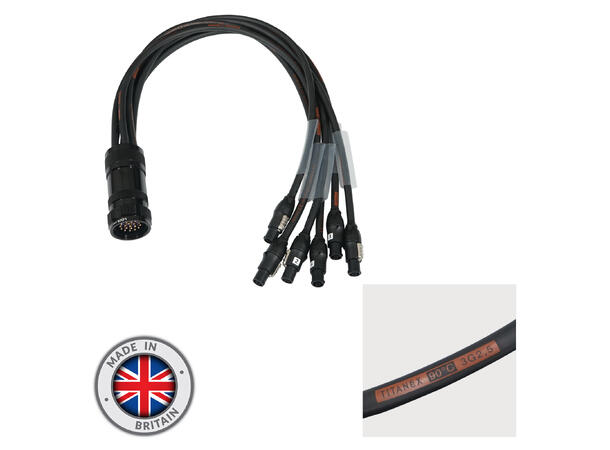

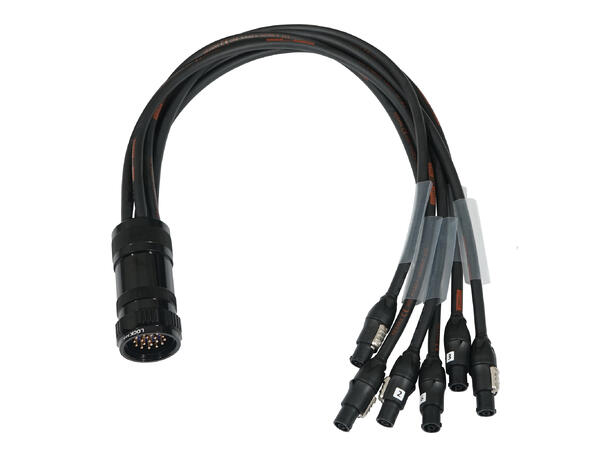

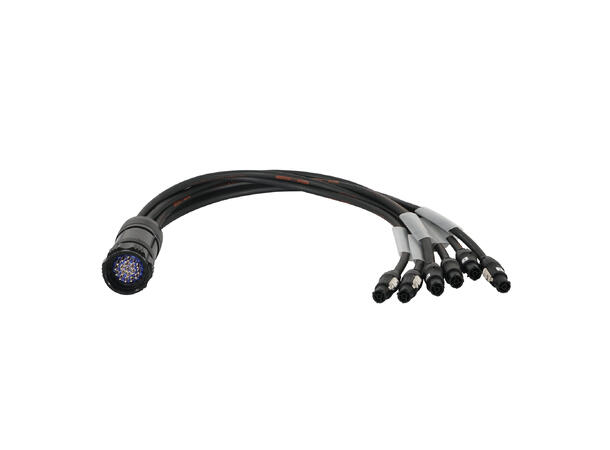

ELUMEN8 Socapex 19 Male to 6 x True1

High quality, rental-ready Socapex fan out cable manufactured in the UK from Titanex H07-RNF cable and eLumen8 Showsafe 19-Pin UL certified Socapex connectors. The cables are finished with a short length of clear heatshrink ready for identification to be added, and each tail is numbered to aid circuit identification.

• Made in Britain
• Titanex H07-RNF 2.5mm 3 Core rubber cable
• eLumen8 Showsafe 19-Pin connectors complete with 6-way cable gland
• 6 x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors
• Clear heatshrink suitable for identification or asset label
• Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard
• Chemical resistant cross-linked elastomer insulation
• Bare copper conductors
• Operating temperature range: -25 to 55°C
• Maximum conductor temperature in service: 90°C
• Amphenol Socapex SL419 compatible
• IP67* ingress protection when mated (*Socapex end)
• FMLB (first make, last break) earth contacts
• Multi-point gold plated contacts
• Individual tail length: 1m
