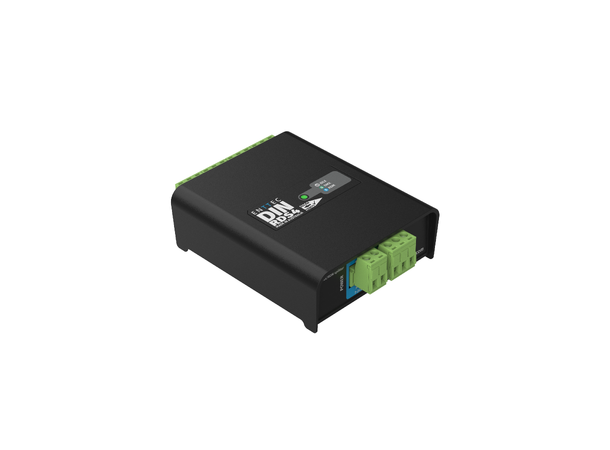

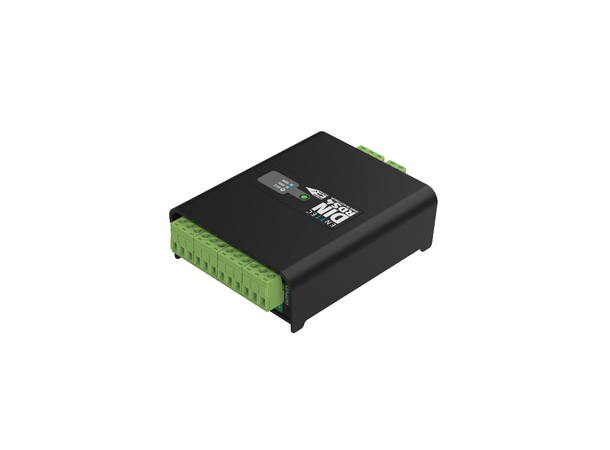

ENTTEC’s DIN RDS4 is an installation grade, 4-port, DMX/RDM isolated splitter engineered to take any architectural, commercial or entertainment project to the next level.
Use the DIN RDS4 to turn one DMX feed into four and eliminate the need to create long and complex DMX chains. Instead, each port becomes the beginning of a new chain. Multiple RDS4s can be chained together to create as many outputs as you need.
Features:
- 1 DMX/RDM input & 4 DMX/RDM outputs.
- 1500V Opto-isolation between each DMX port to protect against stray voltages on the DMX line.
- Pluggable screw terminal connectors.
- Forward facing LED status indicator to view current DMX/RDM traffic.
- Support for DMX512-A and ANSI E1.20 RDM.
- Output refresh rate mimics the input.
- Electrically insulated case material.

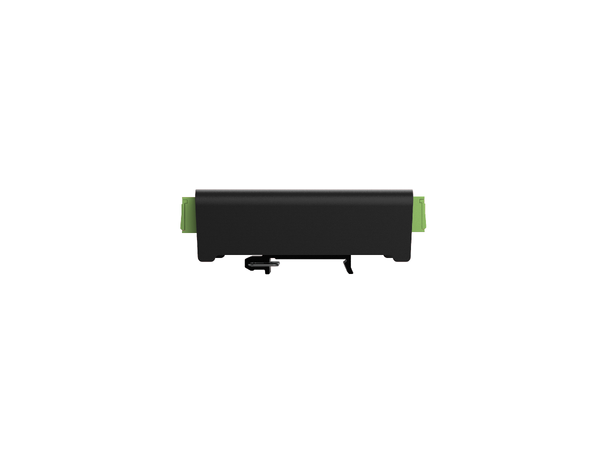

- Surface or TS35 DIN rail mount.
- No configuration required.
- 7V-24V DC power input.
- -20°C to 50°C (-4°F to 122°F) operating temperature.
