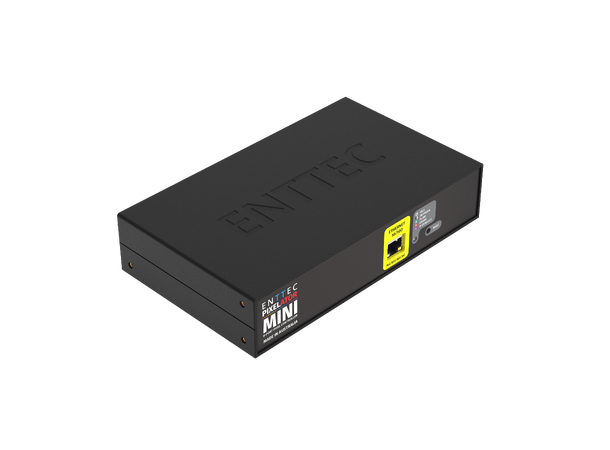

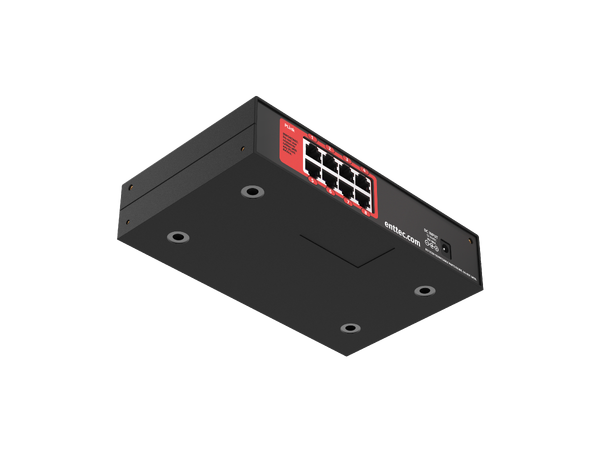

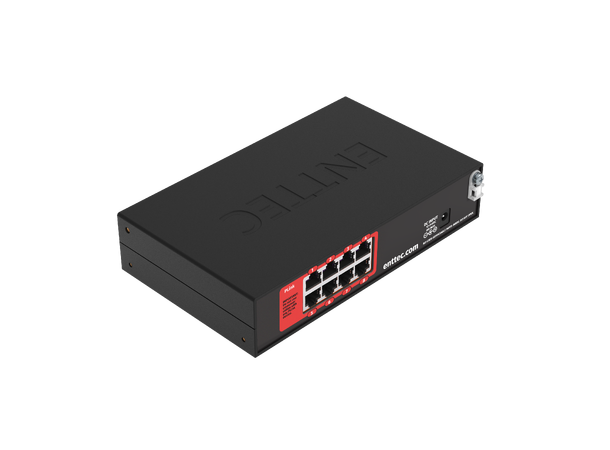

ENTTEC’s Pixelator Mini is an installation-grade Ethernet pixel converter designed to make control of LED pixel dots and strip simple. In total, the Pixelator Mini can convert up to 8,192 channels (2,730 RGB pixels) across its 8 PLink outputs (2 Universes per port) with perfect synchronisation across each.
The Pixelator Mini acts as the head end of ENTTEC’s PLink control system. The PLink data it generates can be sent up to 300m using standard CAT6 cabling to plug into ENTTEC’s compact power injection modules and LED dimmers.
Flexibility is at the heart of the design. Power the Pixelator Mini using either the DC power supply included in the box or by using PoE. Install it using one of the four mounting options included in the box, then configure and update it from anywhere on your network using its intuitive web interface.
- Supports a wide range of LED pixel strips and dots
Connect any ENTTEC pixel strips or pixel dots to the Pixelator system using a PLink Injector. The PLink injector takes in the PLink data and converts it to SPI (Serial Peripheral Interface), a communication protocol required by your pixel LEDs. See the Downloads section for a comprehensive table showing all compatible SPI LED protocols that the Pixelator Mini supports. - Stay in sync: Content tearing is a thing of the past
ENTTEC has a proven track record of being a reliable pixel control solutions provider with products used worldwide.
The Pixelator Mini ethernet LED pixel converter features internal buffer and sync logic to ensure all eight PLink output ports stay perfectly synchronised. Better still, all Pixelator Minis on your installation will stay synchronised with each other through the use of the ArtSync packet. You can be confident that with an ENTTEC system you can build vast LED matrixes spanning multiple devices without experiencing any jitter, lag or content tearing on the output of your pixels.Put simply, everything works as you’d expect it to. - An installer’s dream

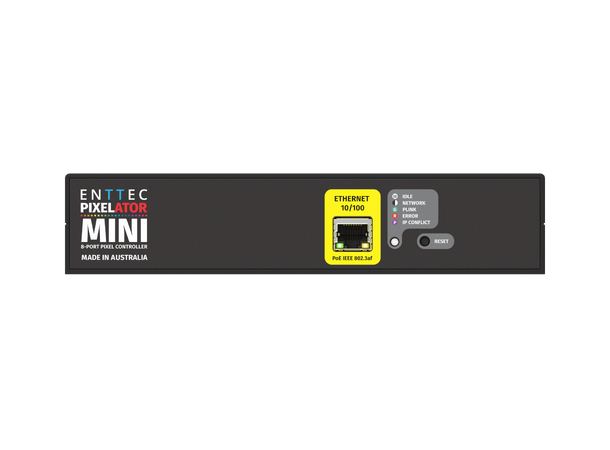

The Pixelator Mini ethernet LED pixel controller’s robust 1U half-width hardware is enhanced by its PoE or 12-24vDC Power input options and front LED indicators which show the status and connectivity of each unit. – All designed to make installations both simple and fast. Additionally, the Pixelator Mini comes with rack, surface mount and DIN mount accessories all included in the box as standard.
