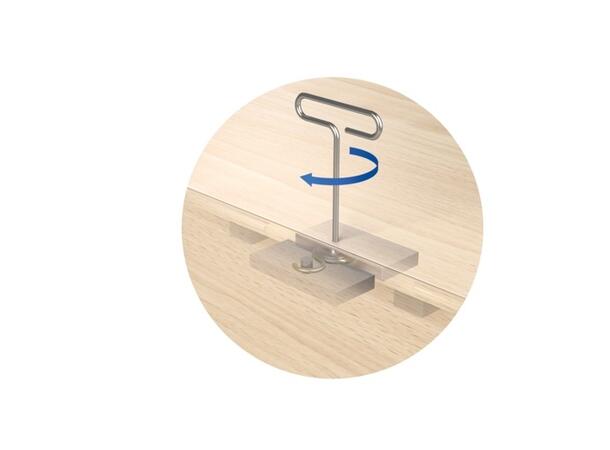

Harlequin Liberty is a sprung floor panel system, designed for permanent or semi-permanent/portable installation. Panels are laid in a brickwork fashion onto the sub-floor, so that cross joins do not coincide. The panels join together by a rounded tongue and groove, which is secured in place using our ‘one turn of the key’ latch and lock mechanism.

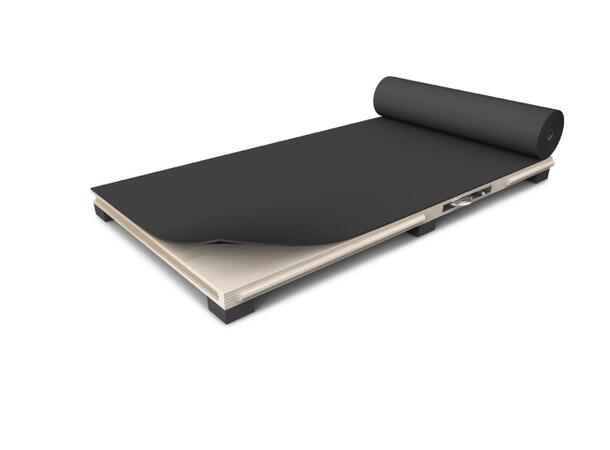

Harlequin Liberty is finished by choosing an appropriate Harlequin vinyl performance floor from our range. For permanent and semi-permanent use, installation can be carried out either by the customer themselves or by our highly-skilled technical team.
Harlequin Liberty sprung floor panels and the accompanying portable Harlequin vinyl performance floor can also be stored in carts, providing an easy and safe way for stage crew to move them on tour or around a venue.
- Permanent or Portable - Both
- Floor panel sizes - 1m x 1m and 2m x 1m
- Minimum floor thickness (before inclusion of chosen finish) - 37 mm
- Minimum floor weight (before inclusion of chosen finish) - 12.5 kg/m²
- Testing standards - DIN 18032-2
- Average shock absorption - 67%
- Maximum load resistance - 670 kg/m²
- Maximum point load (BS EN 1195) - 366 kg/pressure point
