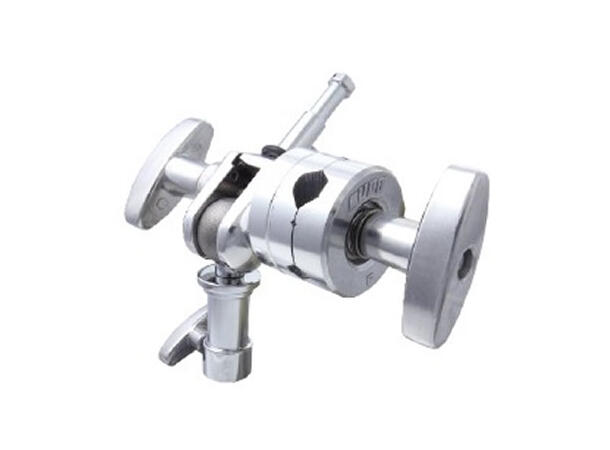

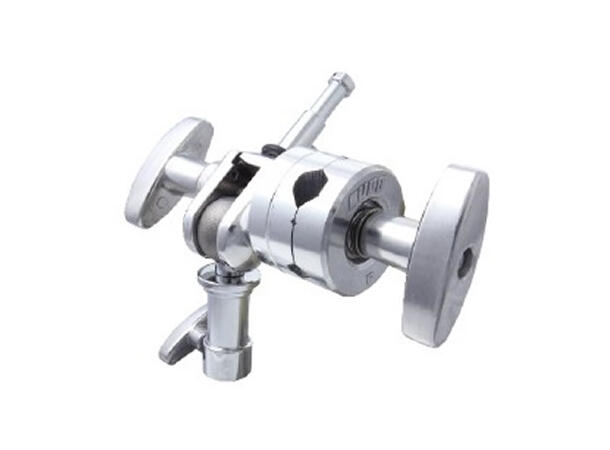

KUPO KCP-230 Grip Head with 16mm spigot

Stål. Swivel 16mm Baby Spigot

Varenr: KCP-230-KP
Alt. varenr: KCP-230
1 042,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
3 på lager i Oslo
BeskrivelseLenker & dokumenter
Beskrivelse

Swivel 5/8’’ (16 mm) baby pin designed for wide angle of fixed solution. Also 16mm baby receiver ( inside) and 28 mm junior pin ( outside) attached to grip head for fitting into various stand tops or mounting accessories.

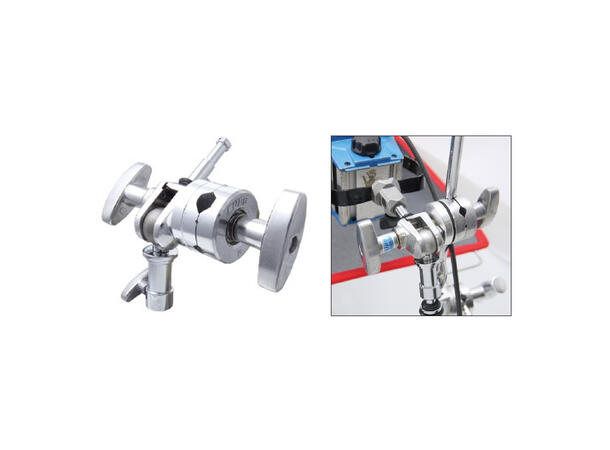

KUPO Grip Head (also Gobohead) is specially designed to be mounted on C-stand with its 16mm socket. Four different size and rotatable V jaw allows you to attach the scrims, flags, cutters, reflectors and backdrops to meet various requirements of lighting control.

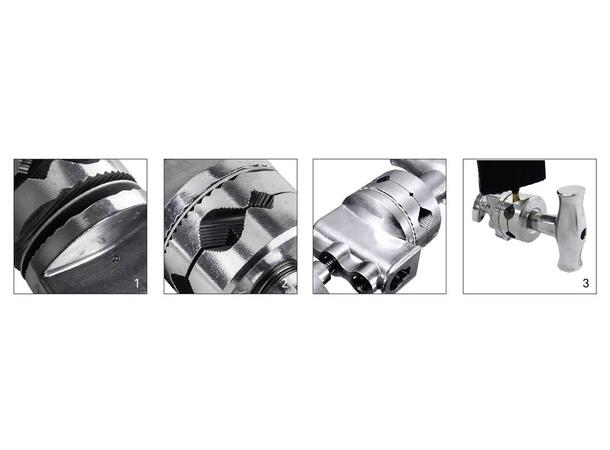

1. Aluminum friction disc. / 2. Daimond shaped jaws. / 3. A solid retaining pin to fix the casting body with stainless steel central bolt. / 4. Dots & fingers are able to be firmly mounted with the 1/4" V jaw.

More Features
1. Aluminum casting body with 16mm mounting hole for a 5/8" (Baby) stud or stand top.
2. Non-slip, Non stick aluminum braking pad instead of fiber which would be deteriorated offering positive lock and precise control.
3. Large size T-handle is ergonomically designed for biggest torque - follow right hand rule.
4. Four V jaws for different dia. (5/8”, 1/2”, 3/8”, 1/4”) pins or tube.
5. V jaws with special tooth design offers a better grip.
6. Steel material makes the located pin sturdier than aluminum casting pin.
7. Stainless steel central bolt with fixed solid pin provides most durable construction.
8. Dedicated bearing added to reinforce the torque for stronger grip.
9. A solid retaining pin to fix the casting body with stainless steel central bolt.





NB! Kupo samsvarserklærer og CE-merker ikke sine produkter, da de ikke er tiltenkt som løfteredskap etter maskinforskriften.
