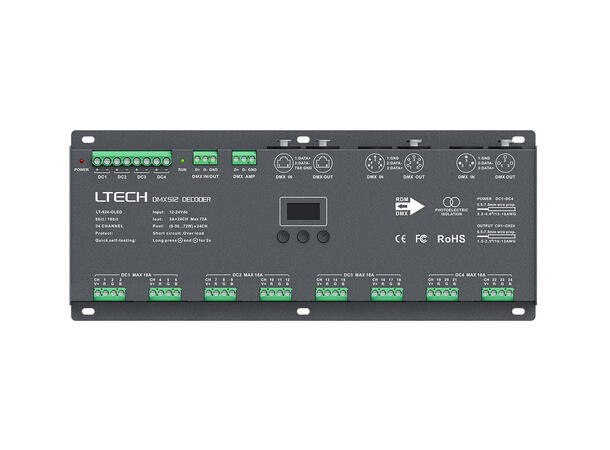

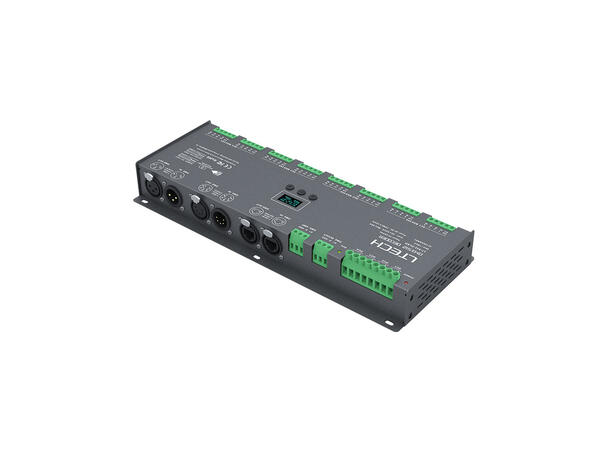

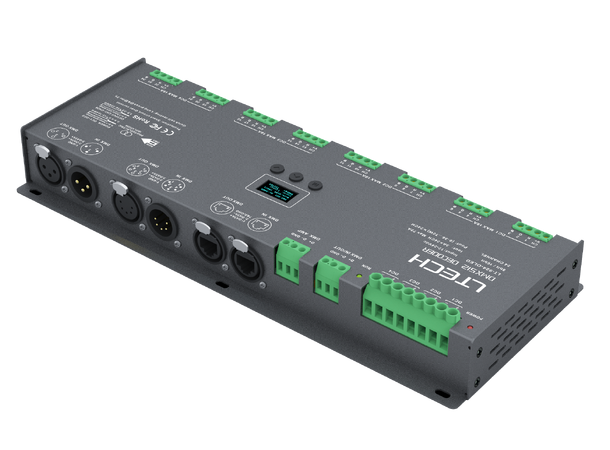

Product introduction
1. Designed for Hi-power multiple channels application, 24 channels output, and Max. 3A current per channel, up to 1728W output power.
2. Easy operation with OLED screen and touch buttons.
3. 3 kinds of mode optional: single color, color temperature and RGB
4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).
5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
6. With firmware upgrade function.
7. With short circuit, over current and over-heat protection, as well as warning function when fault.
8. With power-on state management and fast self-testing function.
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
10. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
Technical specs:
LT-924-OLED
DMX512/RDM
12~24Vdc
3A × 24CH Max 72A
(0~36W...72W) × 24CH Max. 1728W
3-pin XLR, 5-pin XLR, RJ45, Green terminal Dimming/CT/RGB
0.1~9.9
8bit (256 levels) / 16bit (65536 levels) Yes
Short circuit / Over current / Over-heat -30°C~65°C
L300×W122×H39mm L313×W127×H41mm
1180g
