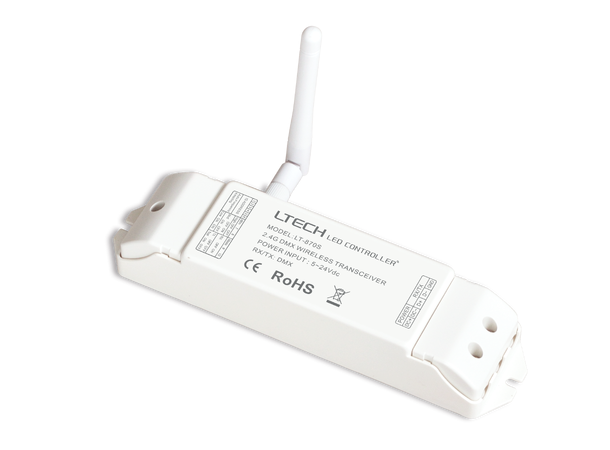

LT-870S wireless DMX512 transceiver transfers the standard DMX512 protocol data wirelessly. One emitter matches one or multiple receivers if using the same ID. (Supporting point-to-point, point to multi-point communication),
LT-870S is used for data transmission between DMX console and lights, or between lights and lights, which replace the wired transmission. The data will not be delayed, will be true and reliable during transmission process.
LT-870S with automatic frequency hopping function, LT-870S will automatically choose clear channel to send DMX512 data when works as an emitter. and can search and match the correct channel to receive DMX 512 data when works as a receiver.
Use relay settings or connect to booster antenna to further the communication distance.
Technical specifications:
Input/Output Signal: DMX512
Input Voltage: 5~24Vdc
Working Frequency: 2.4GHz
Max. Transmitted Power: 20dBm
Receiver Sensitivity: -96dBm
Communication Distance: 350m (weather/environment affects the actual values)
Working Temperature: -30°C to 55°C
Dimensions: L175×W44×H30(mm)
Package Size: L178×W56×H33(mm)
Weight (G.W): 125g
For øvrige tekniske spesifikasjoner se datablad under lenker & dokumenter
