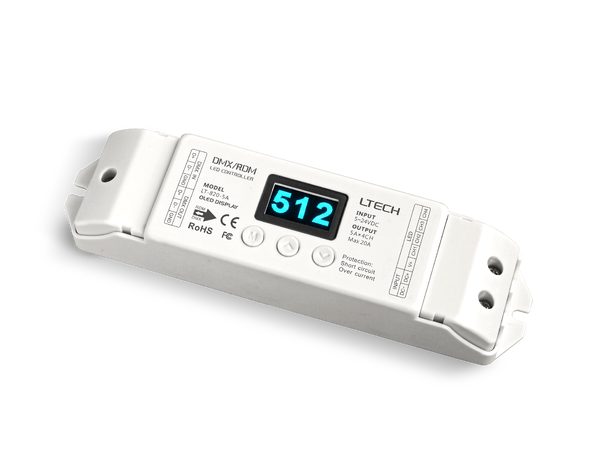

LT-820-5A is the world's first OLED display DMX decoder, with standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize RDM protocol). Outstanding performance with following features:
OLED real-time display.?16bit / 8bit input.?3 dimming curve optional.?Short circuit / Over current / Over-heat protection.?Built-in protection circult of resistance to lightning stroke and ESD static electricity.
Specifications:
Input Signal: DMX512/RDM
Input Voltage: Output: 12-24VDC
Output: 5A×4CH, 6A x 3CH
Max Output Power: 0-120W/488W
Protection: Short circuit / Over current/ Over-heat
Over-heat protection Working Temp.: -30°C~55°C
Dimensions: L175×W44×H30mm
Package Size: L178×W48×H33mm
Weight(G.W.): 160g
For ørige spesifikasjoner, se datablad under "lenker & Dokumenter"
